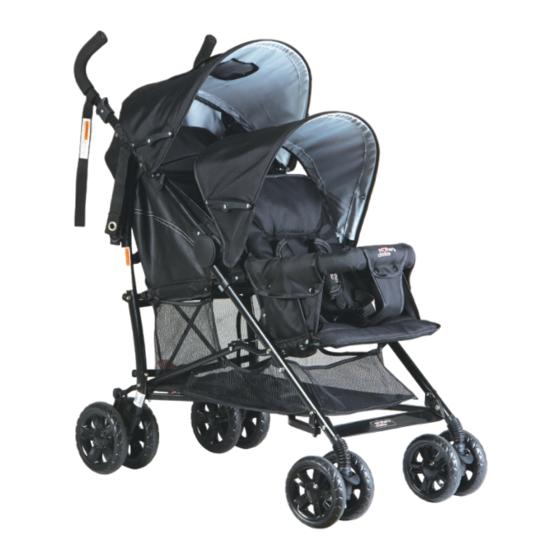

- Page 1 Illustrations and designs may vary. follow us on the only choice motherschoice.com.au...
-
Page 2: Table Of Contents
assembling the stroller Components list ........4 Opening stroller ........5 Installing front wheels ......6 contents Installing rear wheels ...... 7 - 8 Attaching front canopy ......9 Attaching rear canopy ....... 10 Attaching shopping basket ....10 using the stroller Operating rear brakes ...... - Page 3 These instructions detail the safe use, assembly and maintenance of your product. Please read these instructions carefully and ensure that they are followed at all times. Failure to do so could result in serious injury or death. WARNING • FOLLOW THE MANUFACTURE’S INSTRUCTIONS. • PUT ON ALL BRAKES WHENEVER YOU PARK THE STROLLER.
-
Page 4: Components List
M Footrest A Handles G Shopping basket (both sides) N Safety harness H Lower frame lock B Upper frame locks I Rear brake O Crotch guard (both sides) P Harness pads J Rear wheels C Tether strap... -
Page 5: Opening Stroller
Step 1: opening stroller upper frame locks • If the stroller has a security tie, please remove it. • Place the stroller on the floor with the handles facing downwards. • Release the storage strap (Figure 1a). • Lift the handle upwards away from the front legs (Figure 1b), while engaging the lower frame lock with foot (Figure 1c). -
Page 6: Installing Front Wheels
Step 2: installing front wheels insert • Ensure that the arrow (Figure 2a) points upward. • Also ensure that the red swivel lock is positioned correctly, with the lock facing in a forward direction (as per Figure 2c). -
Page 7: Installing Rear Wheels
Step 3: attaching rear wheels • Position each side of the axle assembly over the corresponding ends of the rear wheel legs of the frame (Figure 3a). • Push the wheels onto the legs (Figure 3b). - Page 8 Step 3: attaching rear wheels (cont’d) • Align the brake bar lever located on the centre of the wheel axle with the frame lock, and push the brake bar lever into the frame lock (Figure 3d).
-
Page 9: Attaching Front Canopy
Step 4: to fit the canopies rear canopy • Position and slide the mounts on both sides of the hinge moulding to enable the grooves to snap onto the guides slide and push down to lock tab in position (Figure 4a). -
Page 10: Attaching Rear Canopy
4: to fit the canopies (cont’d) front canopy slide • Position and slide the mounts on both sides of the hinge moulding to enable the grooves to snap onto the guides and push down to lock tab in position (Figure 4d). -
Page 11: Using The Stroller
• TO LOCK: Press the brake lever downwards (Figure 7a). • TO UNLOCK: Push the brake lever upwards (Figure 7b). unlocked locked Operating front swivel locks straight push • TO LOCK, align the swivel lock button with upwards the frame and push upwards (Figure 7a). -
Page 12: Folding / Unfolding
• Apply rear brakes. canopy forward • Position the backrest of the rear seat in the upright position. • Ensure the rear canopy is fully back, and the front canopy is folded forward lower frame lock towards the bumper (Figure 8a). -
Page 13: Adjusting Backrest
(rear seat only) • The backrest adjustor is positioned behind the rear seat (Figure 9b). • Slide the adjuster button with your thumb and adjust the backrest to the desired position (Figure 9a). -
Page 14: Extending Canopies
• Extend each canopy out (Figure 10a), and lock into place by pressing canopy lock down on both sides (Figure 10b). extend • To retract the canopy, lift the canopy lock on both sides and close. -
Page 15: Peek-A-Boo Window
• To reveal peek-a-boo window, ensure canopy is first fully extended. • Lip flap from velcro tab (Figure 11a) and roll back. • Secure with toggle (Figure 11b). velcro tabs toggle... -
Page 16: Securing Your Child
Securing your child • The harness strap can be adjusted by moving each strap’s slider. • The buckle is released by squeezing the buckle tongues together. WARNING Use this harness at all times. A five-point harness is provided to secure your child. -
Page 17: Tether Strap
• Whenever a child is in the stroller and brakes are NOT engaged, the large loop should be around your wrist (Figure 12). WARNING Use this strap to stop the stroller rolling away. -
Page 18: Removing Brake Bar Lever
• To remove brake bar lever, detach lock locking clip (Figure 14a). • Slide the locking pin out from the frame lock and red brake bar lever (Figure 14b). • Brake bar lever is now free to remove (Figure 14c). -
Page 19: Removing Rear Wheels
• Ensure the brake car lever is removed before removing rear wheels (see page 18). push • To remove rear wheel assembly, push the metal pin inwards (Figure 15a) to release lock, then pull wheel off (Figure 15b). -
Page 20: Care And Maintenance
• Always store in a clean and dry place. • Clean the frame by wiping with a damp cloth. • Do not use abrasives, bleach or strong detergents. • Spot clean fabrics with warm water and mild soap. -
Page 21: Notes
notes:... - Page 22 notes:...
-
Page 23: Product Registration
mother’s choice tip... follow us on motherschoice.com.au Visit us online to register your new www.motherschoice.com.au/product-registration Mother’s Choice product. benefits of registration • Your safety - allows us to contact you with important product notifications. • Confirmation of ownership - provides a record in case of product loss or theft. • Improved product development - helps us continue to design products that meet your needs. to prevent loss or fading, please attach your receipt here:... -
Page 24: Customer Service
motherschoice.com.au DOREL AUSTRALIA PTY LTD 655-685 Somerville Road Sunshine West Victoria 3020 Email: customerservice@dorel.com.au Phone: 1300 809 526 Hours: 8:30 am - 5:00 pm Monday to Friday IGC DOREL NEW ZEALAND LTD 14 Sir William Avenue East Tamaki Auckland 2013 Email: customerservice@igc.co.nz Phone: 0800 628 000 (toll free) Hours: 8:00 am - 5:00 pm Monday to Friday...
