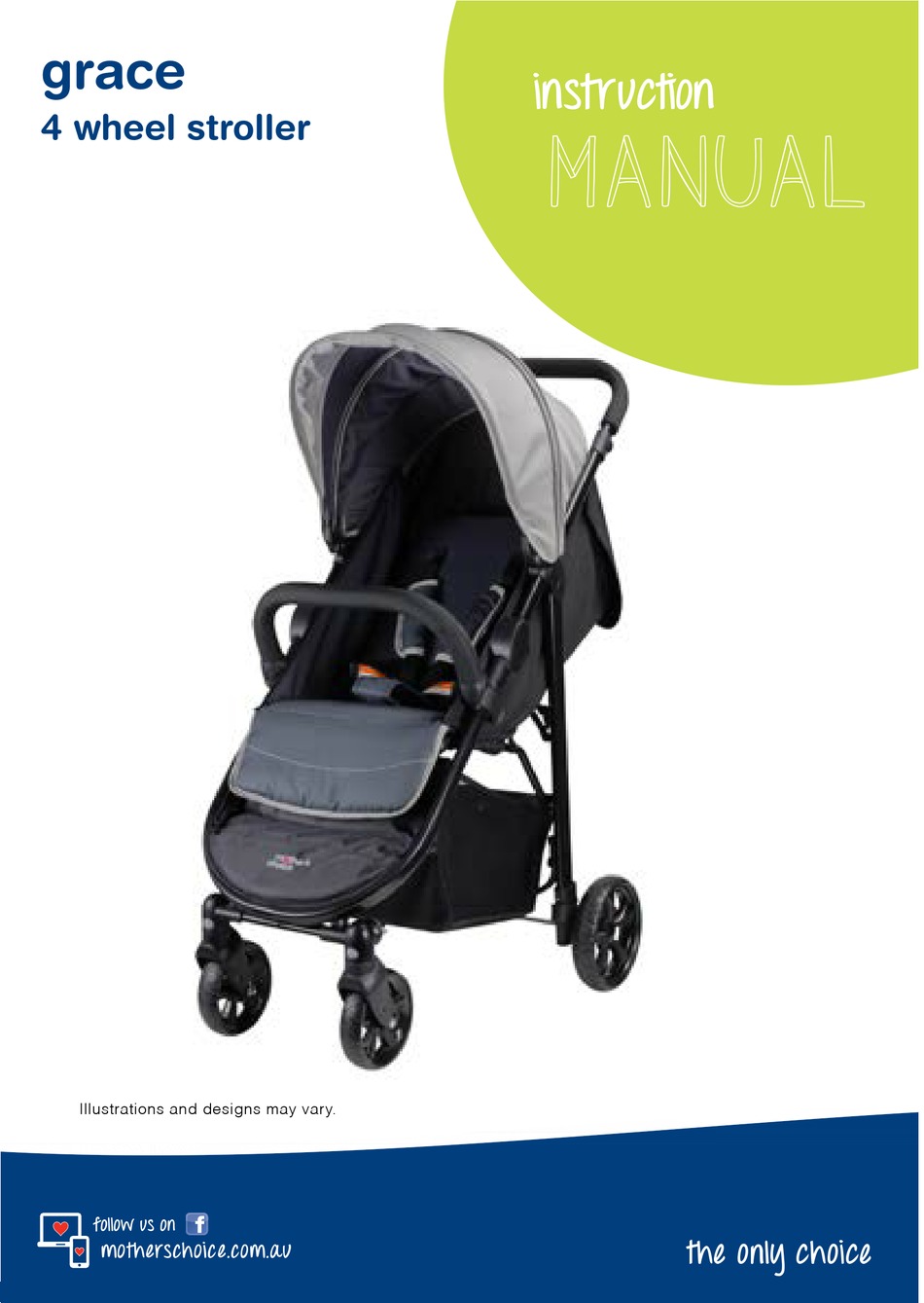

- Page 1 4 wheel stroller manual Illustrations and designs may vary. follow us on the only choice motherschoice.com.au...
-
Page 2: Table Of Contents
assembling the stroller Warnings contents Components list Opening stroller Installing rear axle Rear wheel assembly Installing front wheel Attaching bumper bar using the stroller Adjusting canopy Adjusting backrest Operating brakes Operating footrest Operating front swivel wheels Folding stroller Unfolding stroller Carrying stroller Harness adjustment buckle Adjusting harness height... -
Page 3: Warnings
These instructions detail the safe use, assembly and maintenance of your product. Please read these instructions carefully and ensure that they are followed at all times. Failure to do so could result in serious injury or death. WARNING TO AVOID INJURY OR DEATH: ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. -
Page 4: Components List
Canopy Seat Adjustable backrest Canopy visor Adjustable footrest Recline levers (x2) Tether strap Swivel lock (x2) Shopping basket Front wheel (x2) Self locking storage latch Brakes (x2) -
Page 5: Opening Stroller
Step 1: opening stroller • If the stroller has a security tie, please remove it. • Release the storage latch (Figure 1a). • Lift the handle upwards away from the rear legs (Figure 1b). -
Page 6: Installing Rear Axle
Step 2: installing rear axle/brakes • Insert the axle assembly into the rear stroller legs and push up until it snaps into place (Figure 2). insert mother’s choice tip... Ensure red brake levers face towards the rear of stroller. -
Page 7: Installing Front Wheel
Step 3: installing front wheel • Align the shaft on the wheel with the hole in the push front leg. Push in the button and simultaneously push the wheel into the hole (Figure 4a). Listen for a ‘click’. -
Page 8: Attaching Bumper Bar
UP Step 4: attaching/removing bumper bar • Align the bumper bar with the frame of the stroller, ensuring the arrows located on the inside of the bumper bar are facing UP (Figure 5a). push •... - Page 9 • Pull the front edge of the canopy to open (Figure 6a, 6b). • Unzip canopy zipper and pull canopy forward (Figure 6c). • Flip out visor for extra coverage (Figure 6d). • To close, simply push backwards.
-
Page 10: Using The Stroller
Operating the backrest recline lever upright • Recline the backrest by simultaneously adjusting the recline levers (both sides) into one of three positions, as demonstrated in Figures 7a - 7d. To adjust upwards, simply push on the backrest. -
Page 11: Operating Brakes
Operating brakes • To apply the brake, press down firmly on both brake pedals using the ball of your foot (Figure 8a). press down to lock • Ensure both sides are engaged. • To release the brake, lift both brake pedals until the brakes have fully disengaged (Figure 8b). -
Page 12: Operating Footrest
Operating footrest pull • The footrest’s default position is down. upwards • To raise the footrest, simply lift upwards until the footrest ‘clicks’ into position (Figure 9a). • Ensure both sides are engaged. click! • To lower the footrest, push both adjustment buttons (Figure 9b) simultaneously and push down gently. -
Page 13: Operating Front Swivel Wheels
Locked position is ideal for travel lock over rocky or uneven surfaces. operating front swivel wheels • To lock, turn the knob located above the front wheel anticlockwise until the indicator is horizontal (Figure 10a). -
Page 14: Folding Stroller
• Apply all brakes. extend fold • Unlock the front swivel wheel. backrest canopy • Fold the canopy back. back • Adjust the seat backrest to full layback position. • Grip the folding locks on each side of the handle (Figure 11b), pull to release the lock. -
Page 15: Unfolding Stroller
• Release the storage latch (Figure 12a). • Lift handle until stroller is fully open and locking mechanism engaged (Figure 12b). • Push down on the handle to check that the locks have been fully engaged. -
Page 16: Carrying Stroller
• Fold the stroller, and ensure that storage latch is applied before continuing. • Carry stroller by holding frame between the storage latch and the folding lever (Figure 13). Avoid holding the stroller in other locations to avoid injury from moving parts. -
Page 17: Harness Adjustment Buckle
5 points of the harness can be adjusted by moving each straps’ slider (figure A1). To tighten or loosen the waist and/or shoulder straps, hold and lift the plastic adjuster. Adjust straps to desired position. The waist strap needs to fit firmly around the child. -
Page 18: Adjusting Harness Height
2. Place buckle prong (D) on top of buckle prong (C) 3. Insert the prongs into the buckle housing (E) until it clicks into position. Repeat the above steps for the opposite side (F and G). Pull straps to ensure they are locked into the buckle assembly. -
Page 19: Tether Strap
• Whenever a child is in the stroller and brakes are NOT engaged, the large loop should be around your wrist (Figure 14). WARNING Use this strap to stop the stroller rolling away. Note:... -
Page 20: Care And Maintenance
• Always store in a clean and dry place. • Clean the frame by wiping with a damp cloth. • Do not use abrasives, bleach or strong detergents. • Spot clean fabrics with warm water and mild soap. -
Page 21: Notes
notes:... - Page 22 notes:...
-
Page 23: Product Registration
mother’s choice tip... follow us on motherschoice.com.au Visit us online to register your new Mother’s Choice product. www.motherschoice.com.au/product-registration benefits of registration • Your safety - allows us to contact you with important product notifications. • Confirmation of ownership - provides a record in case of product loss or theft. •... -
Page 24: Customer Service
Email: customerservice@dorel.co.nz Phone: 0800 628 000 (toll free) Hours: 8:00 am - 5:00 pm Monday to Friday #017808- Grace Stroller - 9/17 Specifications are subject to change without notice. Copy or reproduction without permission is prohibited. © 2017 Dorel Australia Pty Ltd. All Rights Reserved.
