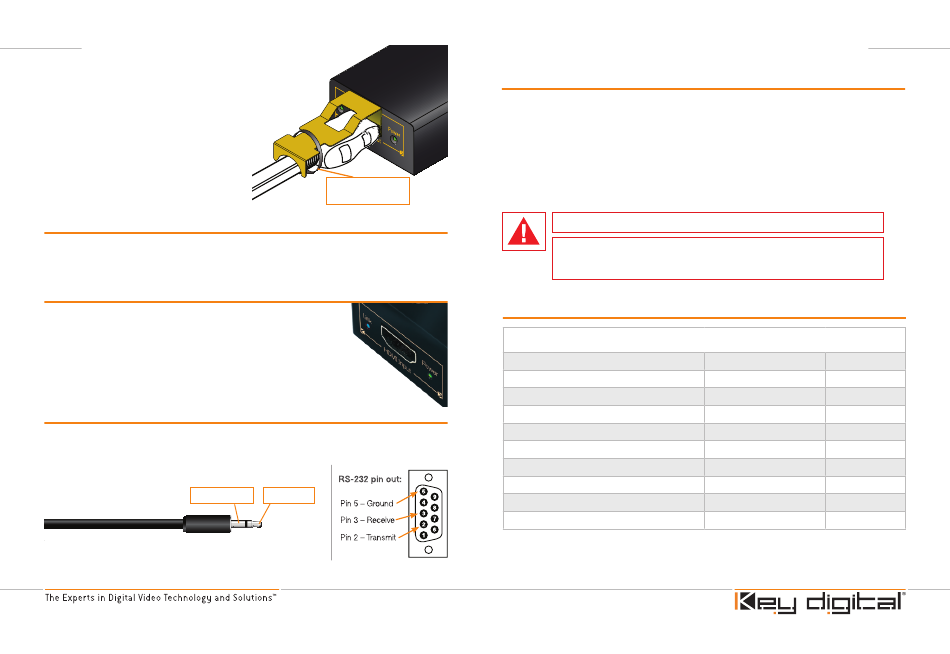

Page 4
An optional HDMI cable clip (included) enables a method for
securing HDMI cables the KD-CATHDX units and helps
defeat intermittent or complete signal loss due to poor
connection.
DVI applications for the KD-CATHDX
The KD-CATHDX can also be used to extend Digital DVI cable runs.
For the applications, use appropriate Dual Link DVI to HDMI adapters.
Link Lights
To achieve solid Link Lights on the KD-CATHDXTx and KD-
CATHDTXRx baluns, all connections must be solid and properly
synced. This includes the HDMI connectivity between source and
KD-CATHDXTx balun, Data and Video/Audio CAT5e/6 connectivity
between KD-CATHDXTx and KD-CATHDXRx baluns, and HDMI
connectivity between KD-CATHDXRx balun and display.
Extending Control Signals with KD-CATHDX
KD-CATHDX baluns can be used to extend bi-directional IR signals or uni-directional
RS-232 control. Use the 3.5mm mono mini connection on the KD-CATHDXTx and
KD-CATHDRx.
Shell = Ground
Optional HDMI
Cable clip (included)
Tip = Signal

Troubleshooting

Most issues with the KD-CATHDX setup will involve resolution and distance
performance. If you experience problems (no image, video artifacts, picture dropout,
noise) here are a few things to try.
1.
Use the shortest possible HDMI and CAT5e/6 cables between devices.
2.
Lower the output resolution of the image source.
3.
Use Key Digital
HDMI cables.
®
4.
Re-terminate CAT5e/6 cabling.
CAT5e/6 Splicing
Do not use patch panels, punch downs, keystones, wall plates, or
splicing of the CAT5e/6 cables at any time.

Supported Resolutions

Common Video Resolutions
Resolution
720x480 (split into 2 fields)
720x480
1280x720
1980x1080 (split into 2 fields)
1920x1080
1920x1080
3D @ 1080p
3D @ 1080i
3D @ 720p
Page 5
Common Name
Distance
480i
270'
480p
270'
720p
270'
1080i
270'
1080p/24
270'
1080p/60
140'
3D/1080p
140'
3D/1080i
270'
3D/720p
270'
