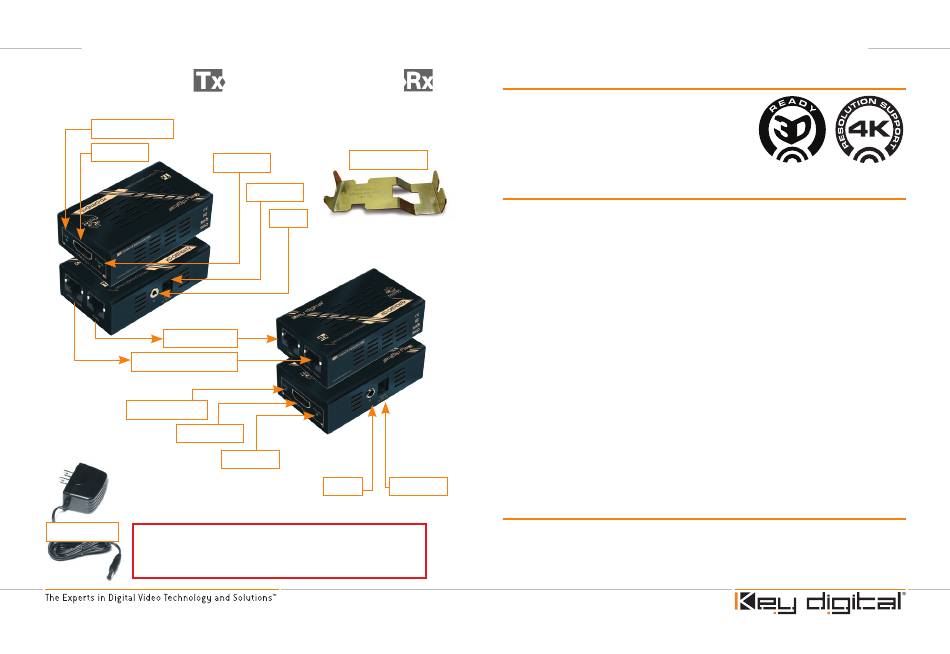

KD-CATHDX
HDMI Active LED
HDMI Input
Power LED
CAT5e/6 - Data
CAT5e/6 - Video/Audio
HDMI Active LED
HDMI Output
Power Suppply CAUTION: No other power supply adapter can be used with this unit!
Using a power supply other than the one provided by Key Digital
the unit VOIDS THE ENTIRE PRODUCT WARRANTY, may cause damage
to the unit and associated equipment, and is a potential safety hazard.
KD-CATHDX
HDMI Cable Clip
Power Jack
IR Port
Power LED
IR Port Power Jack
with
®
HDMI 1.4 Features
®
3D – Capability to pass 3D stereoscopic signal
➔
formats
4K – 4096x2160/24 video resolution support for
➔
commercial applications such as Digital Movie
Theaters, CAD, Post Production, Graphics and etc.

Installation Instructions

Find a safe and convenient location for the KD-CATHDX unit.
Before permanently securing the unit or final installation of cabling
➔
behind walls or ceilings, test for proper operation of the unit and the
cables in your system.
CAT5e/6 Cabling
KD-CATHDX Baluns will work with CAT5e, or CAT6 unshielded (UTP) cabling.
➔
For installations in hostile electrical environments, shielded (STP) CAT6 cabling is
recommended.
Connections
Each KD-CATHDX Rx and Tx Balun has an HDMI, 2 x CAT5e/6, a 3.5mm mono
➔
mini jack for IR, and a 5V 1A power connection.
With all of your equipment and Baluns powered off, make your connections.
➔
Power the equipment and Baluns On.
➔
When powered on, the KD-CATHDX Balun will show a red LED for power, and a
➔
blue LED when the Balun is "synced" between the source and display.
Power
KD-CATHDRx and KD-CATHDTx units must be powered.
➔
Mounting the KD-CATHDX units and
securing HDMI connections
Once you have verified operation of the unit with your cables, secure the mounting clip
to a convenient location. Carefully secure included mounting brackets onto the KD-
CATHDXRx or KD-CATHDXTx chassis by fastening screws until mounting clips are fixed
firmly against the units.
