Connect the Ethernet Port for LAN Access

You can connect the Cisco AS5300 to a 10BASE-T or 100BASE-T Ethernet network.

You will need an Ethernet cable to connect the Cisco AS5300 to an Ethernet hub. This cable is not included.

Connect an Ethernet cable to the 10BASE-T port or the 10/100BASE-T port, depending on whether your network is

Step 1

10BASE-T or 100BASE-T.

Step 2

Connect the other end of the Ethernet cable to an Ethernet hub (not included).

10BASE-T port

(RJ-45)

100BASE-T port

(RJ-45)

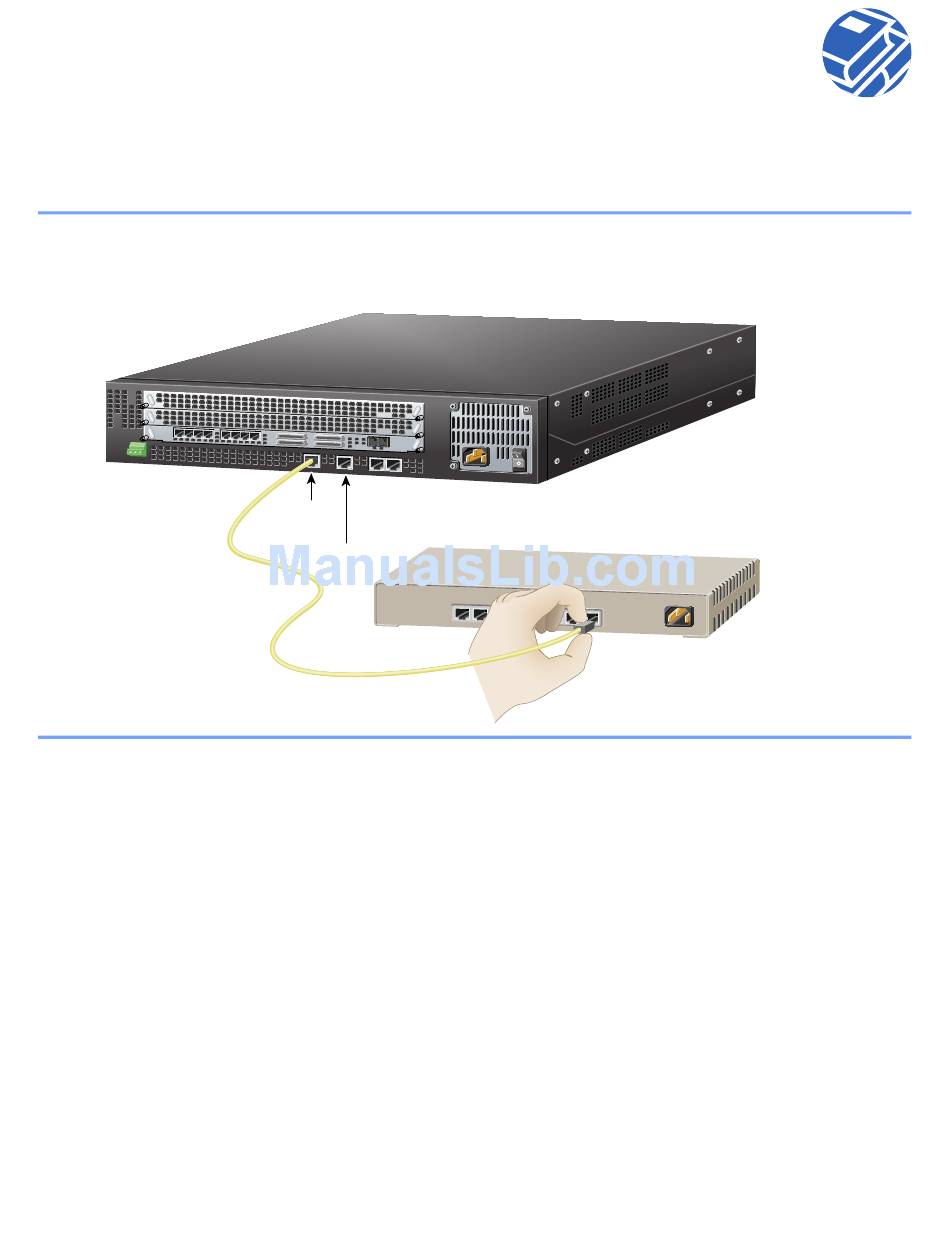

Straight-through

Ethernet cable

Universal access

server

Ethernet hub
