Cisco Universal Access Server AS5300 Quick Start Manual page 10

Connect the Serial Port for WAN Access
Use a serial 12-in-1 cable (DTE if connecting to a DSU or DCE if connecting to a CSU) to connect one of the four synchronous
serial ports on the E1 or T1 PRI cards (with serial support) to a modem or a CSU or DSU. The CSU or DSU provides access to
a WAN.

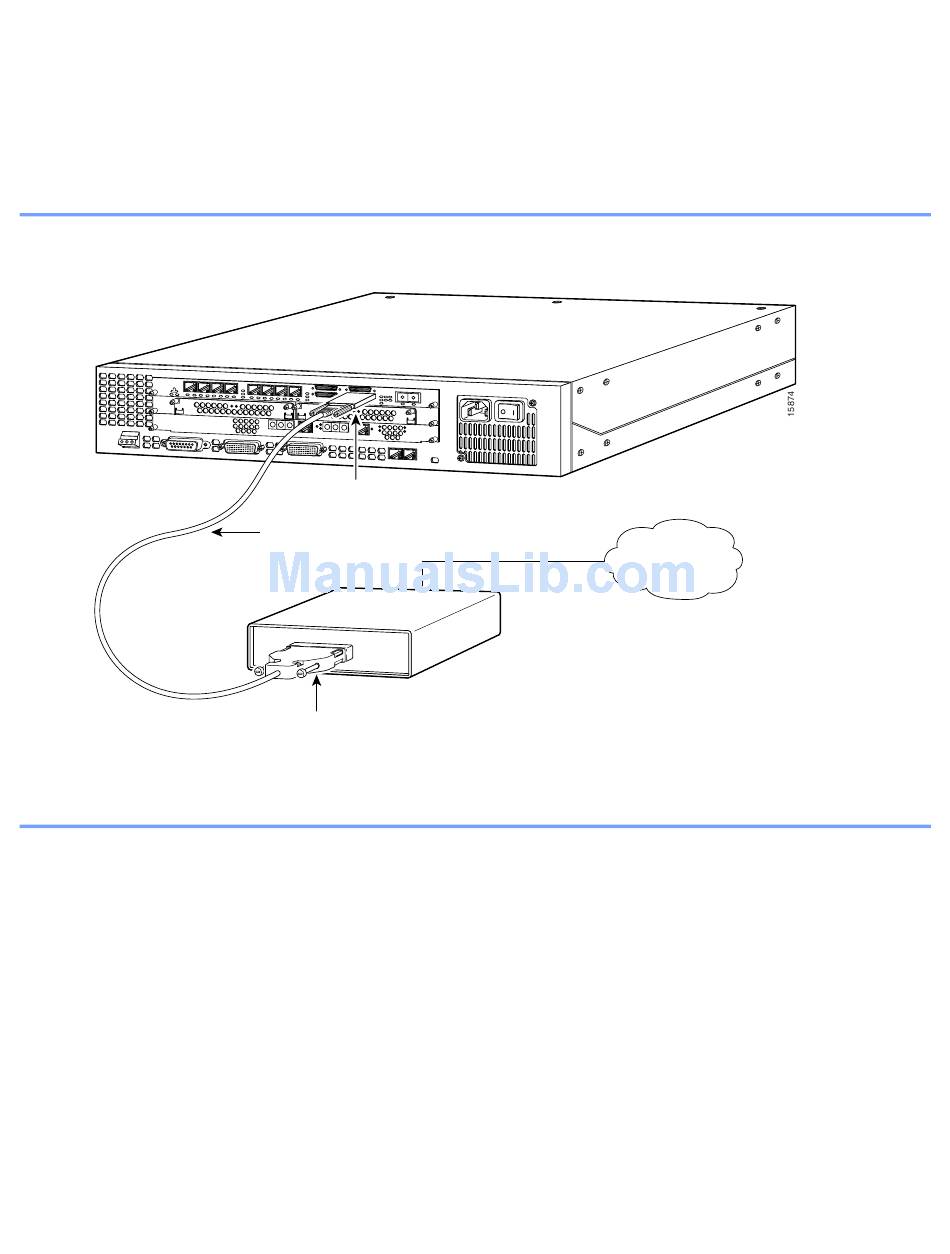

Connect the serial 12-in-1 cable connector on the serial cable to the serial port on the rear panel of the Cisco AS5300.
Step 1
Connect the EIA/TIA-232, EIA/TIA-449, EIA/TIA-530A, EIA-530, V.35, or X.21 connector to the CSU or DSU.
Step 2
PORT SELECT
RA
A
LB LA S A
0
EIA/TIA-232, EIA/TIA-449, EIA/TIA-530A,
10
S A
S A S
1 A S A
2 S A T1
3 S A S
4 5
6 7 T0 T3
T2
Synchronous serial
port (DB-26)
Serial
transition
cable
EIA-530, V.35 or X.21 connector
ACT OK
RX TX
Universal access
server
CSU/DSU or
other DCE or DTE
Internet
