Connect a Modem for Remote Administrative Access (Optional)

To configure the Cisco AS5300 from a remote location, you will need an RJ-45-to-RJ-45 rollover cable and a modem adapter

(RJ-45-to-DB-25) for connecting a modem.

If you will not be using a modem to configure the Cisco AS5300 remotely, skip this procedure and go to Connect Power, page 13.

Note The cable and adapter are included. The modem is not included.

Connect the adapter labeled MODEM to your modem.

Step 1

Step 2

Connect the RJ-45-to-RJ-45 rollover cable to the adapter.

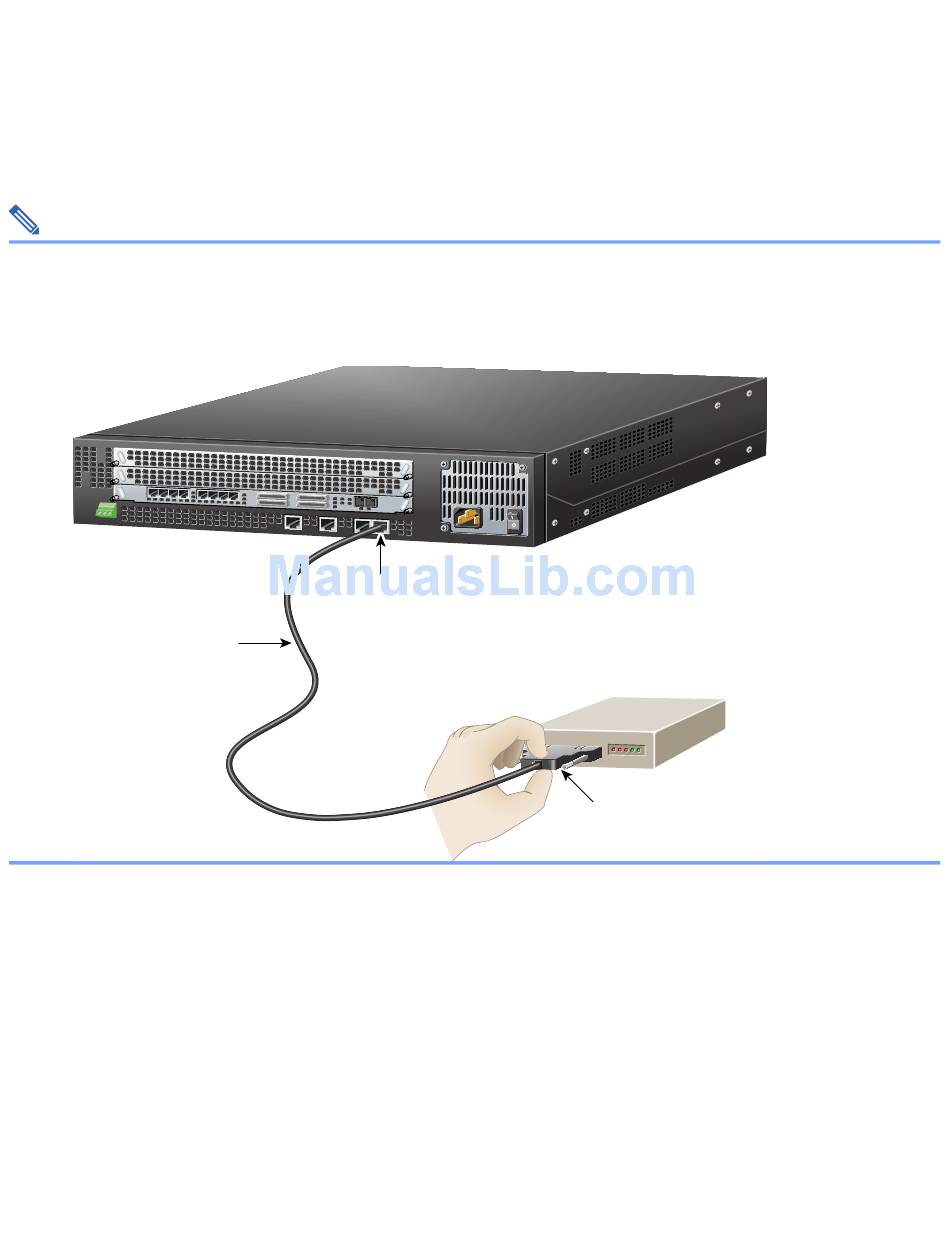

Connect the other end of the RJ-45-to-RJ-45 rollover cable to the port labeled AUX on the rear panel of the

Step 3

Cisco AS5300.

RJ-45-to-RJ-45

rollover cable

Universal access

server

Auxiliary port

(RJ-45)

(labeled AUX)

Modem

RJ-45-to-DB-25 adapter

(labeled MODEM)
