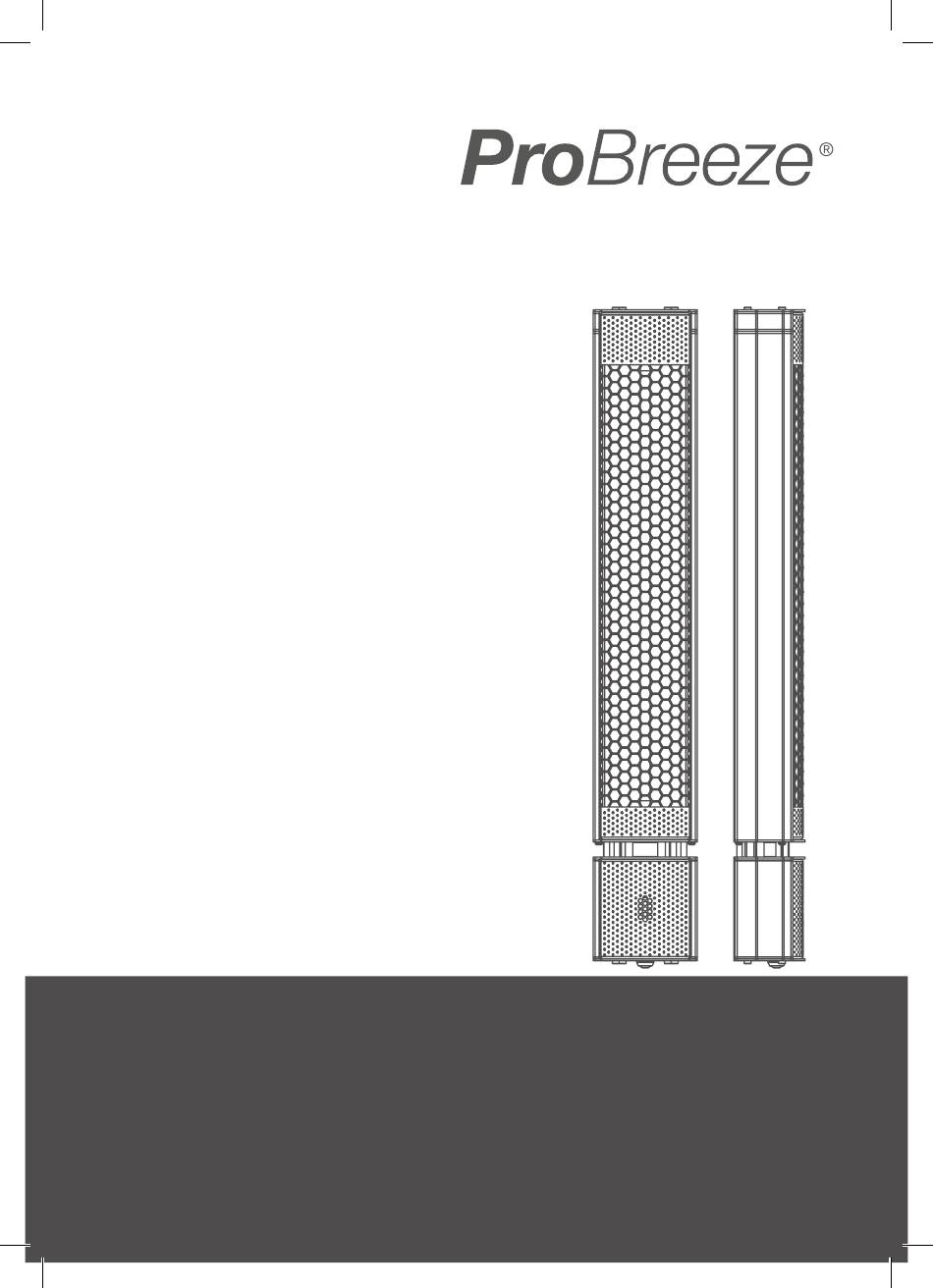

- Page 1 Instruction Manual Model PB-H16 2000W Golden Halogen Lamp Infrared Heater IMPORTANT INSTRUCTIONS - RETAIN FOR FUTURE USE...
-
Page 2: Safety Instructions
2000W Golden Halogen Lamp Infrared Heater Thank you for choosing to purchase a product from ProBreeze. Please read the entire manual carefully prior to first use and keep in a safe place for future reference. SAFETY INSTRUCTIONS WARNING: To avoid the risk of electrical shock, fire or injury to people, always make sure the heater is unplugged from the electrical outlet before installing, relocating, servicing, or cleaning it. - Page 3 • Never leave the heater unattended while in use. Always turn the heater off and unplug when not in use. • Do not place this heater near flammable materials, surfaces or substances. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet /1m from the heater.
-
Page 4: Specification
SPECIFICATION Model: PB-H16 Voltage: 220-240V ~ Frequency: 50/60 Hz Power: 2000W Max Product Dimensions: 66*10.5*7.2 CM Net Weight: 1.67 KG SET UP - PARTS SUPPLIED Ensure you have all the pieces listed. Do not proceed with set up and assembly of the heater if any components are missing. - Page 5 SET UP - EQUIPMENT REQUIRED Note: some equipment may vary based on the assembly space • Phillips screw driver • 8mm spanner • 10mm spanner • Drill & masonry drill bit (8mm diameter). • Ladder • Hammer • Pen or marker •...
-
Page 6: Assembling Instructions
Ensure the heater is not facing the ceiling or inflammable substances. NOTE: Two dark points may appear on the surface of the heating elements during the first few minutes after the heater is turned on. This is normal and will not affect the performance of the heater. - Page 7 HOW TO ASSEMBLE THE UNIT Step 1: Connect 2 L brackets (H) to the heater as shown. Do this using a Phillips screwdriver with 4 components of B, E & F (see order pictured). Step 2: With remaining L brackets (H) connect explosion screws as shown. This can be done by hand, using components (A, D, E, F).
- Page 8 HOW TO ATTACH TO WALL/CEILING Step 1: On the L shaped Brackets (H), measure the pitch between the pair of holes desired for use, with a ruler. Step 2: Using a pen, mark the same distance where you are going to drill (determine hole depth before hand).
- Page 9 OPERATING ANGLE WALL ANGLE • Do not face heater at 90° towards ceiling. • Only face downwards at maximum angle 135° see below. CEILING ANGLE • Do not face heater at 90° towards walls. • Do not face fan directly down 180°. Only face at 135° angles. OPERATING INSTRUCTIONS English | 8...
- Page 10 • Switch On/Off Button- To switch on the heater, press the rocker switch to the On position • Mode Switch Button - Press the mode button to alternate between three different modes. For each mode, the LED light indicator will illuminate a different colour: • Red: The heater is in the standby mode. •...
- Page 11 CLEANING, MAINTANANCE & STORAGE WARNING: Always turn the heater OFF, unplug the power cord from the electrical outlet and allow the appliance to completely cool down before handling or cleaning it. Allow the heater to cool down for 2 hours (120 minutes) before cleaning. CAUTION: Do not allow water or other liquids to run into the interior of the heater, as this could create a fire and/or electrical hazard.
- Page 12 One Retail Group, Ryland House 24a Ryland Road, London, NW5 3EH, United Kingdom EU Authorised Representative: Brandrep Limited, The Black Church St Mary's Pl N, Dublin, D07 P4AX, Ireland © Copyright 2021...
