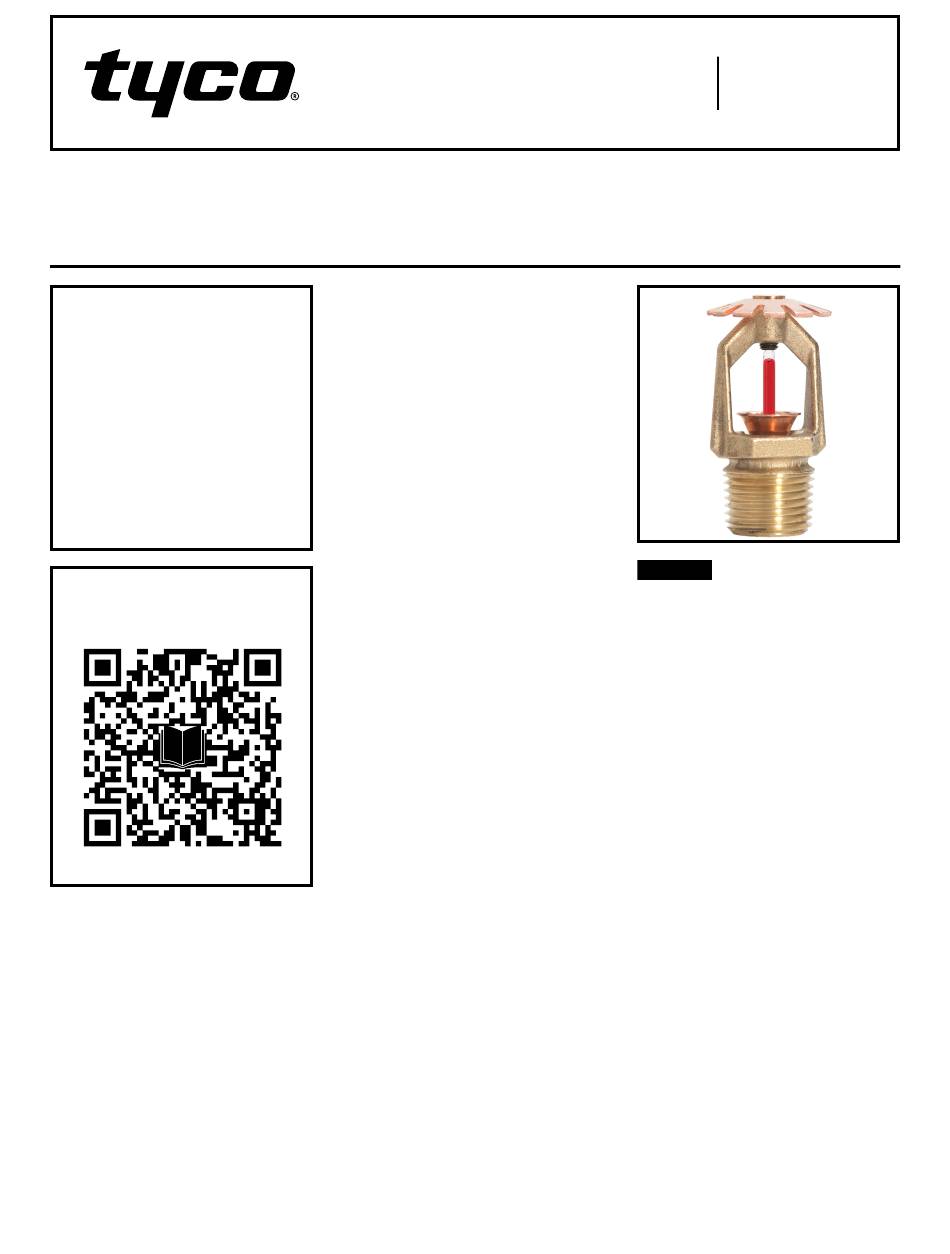

Series TY-FRB – 5.6 and 8.0 K-factor
Conventional (Old Style) Sprinklers
Quick Response
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp666
Page 1 of 4
General
Description

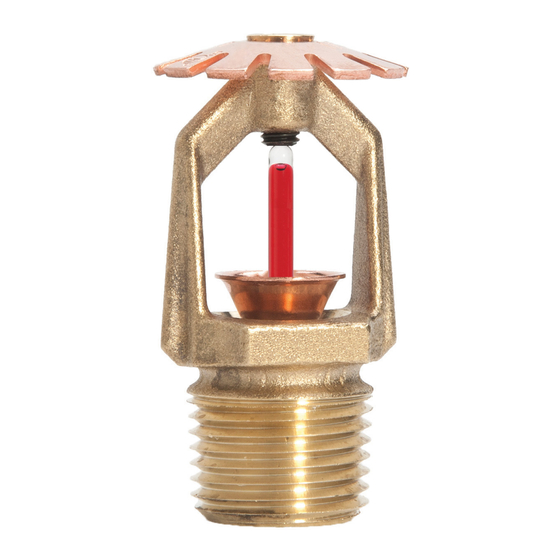

The TYCO Series TY-FRB, 5.6 and
8.0 K-factor, Conventional Sprinklers
described in this technical data sheet
are Quick Response, Standard Cover-
age, decorative 3 mm glass bulb type
spray sprinklers. These sprinklers are
intended to be installed either pendent
or upright and, in either position,
produce a spherical water discharge
pattern with approximately 50% of
the discharge directed upwards and
approximately 50% of the discharge
directed downwards.
Conventional sprinklers are generally
used with Ordinary and Extra High
Hazard Class Systems, as defined by
the automatic sprinkler system instal-
lation rules of the country and author-
ity having jurisdiction. The NATIONAL
FIRE PROTECTION ASSOCIATION
(NFPA) permits the use of "Old Style
Sprinklers" where special construction
features require a unique water distri-
bution, for the protection of fur vaults,
or to replace similar sprinklers that had
been installed prior to 1955.
Corrosion-resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion-resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable Approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
corrosive environment. The effects of
ambient temperature, concentration of
chemicals, and gas/chemical velocity
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
AUGUST 2022
Worldwide
www.tyco-fire.com
Contacts
NOTICE
The TYCO Series TY-FRB Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NFPA, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers (SINs)
TY3631 5 6K, 1/2 in NPT
TY4631 8 0K, 3/4 in NPT
TFP666
