Tsun TSOL-ESK350-E Quick Installation Manual

、

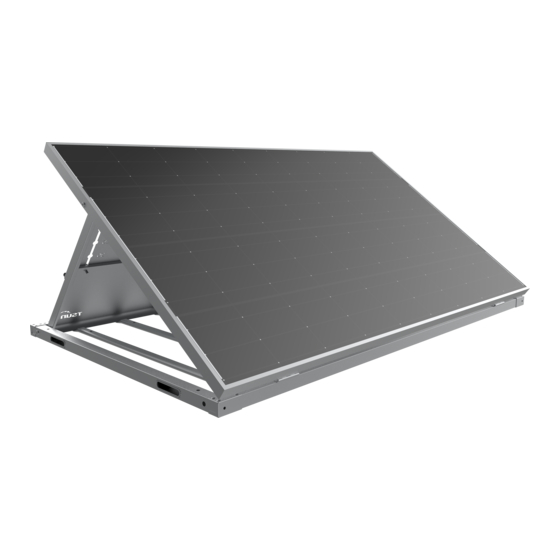

Quick Installation Guide
TSOL-ESK350-E

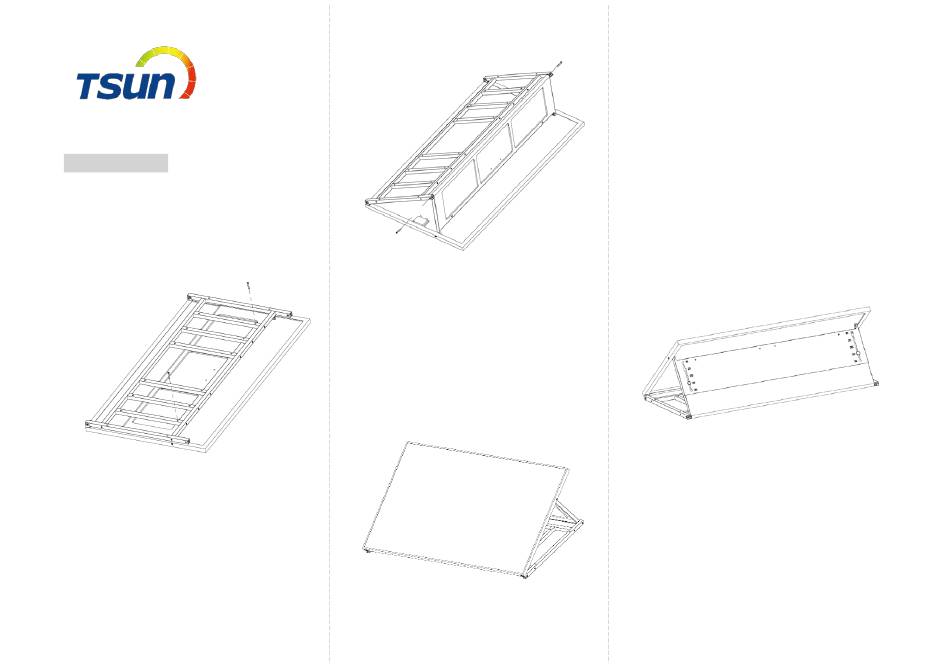

Step 1: Open the ESK lock
Pick the Easy Solar Kit out of the package. Put down
it slowly and make the bracket upside. There are
two ESK locks on the bracket. Use a hex wrench (#5)
to open the ESK locks as shown below.
Step 2: Fix the bracket to the base plate
Lift up the base plate and the bracket. Screw on the
ESK locks to fix the bracket on the base plate as
shown below.
1
Warning: The bracket must be fixed on the base
plate, which will promote the wind loading rating
of Easy Solar Kit.
Step 3. Find a suitable location
Turn around the Easy Solar Kit and make the base
plate downside. Find a suitable location and put
down the Easy Solar Kit lightly. Adjust the direction
and make the solar panel facing the sunlight.
2
Caution: Please put the Easy Solar Kit on a flat and
non-shadow location.
Caution: Easy Solar Kit has a 2m end cable and
should be set near the socket. Or use the expansion
cable as shown in Step 5.
Caution: Please adjust the direction at noon to get
a better electric energy production during the day
time.
Step 4. Adjust the angle of bracket (optional)
Angle Lock is an optional function for Easy Solar Kit.
There are two angle locks on the bracket.
Use a hex wrench (#5) to open the angle locks.
Slowly put down the solar panel and make the
angle locks slip into the right angle. Then tighten
the angle locks again.
3
