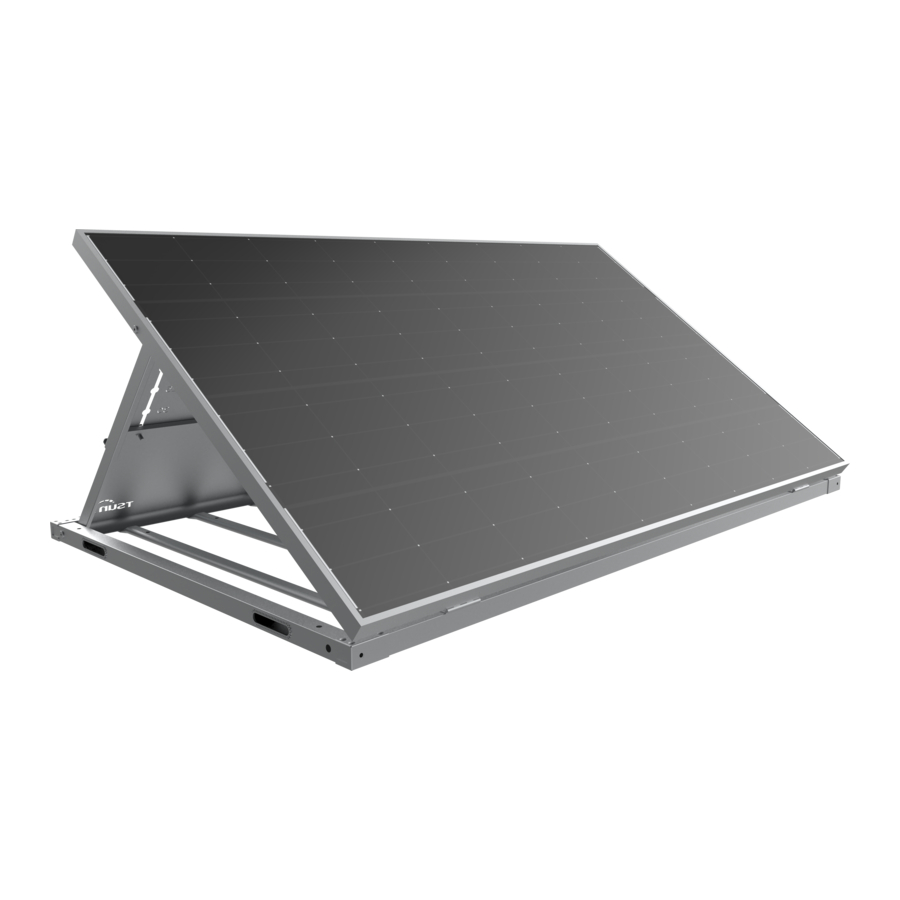

Tsun TSOL-ESK350 Quick Installation Manual

Quick Installation Guide
TSOL-ESK350/400/800/1600-E

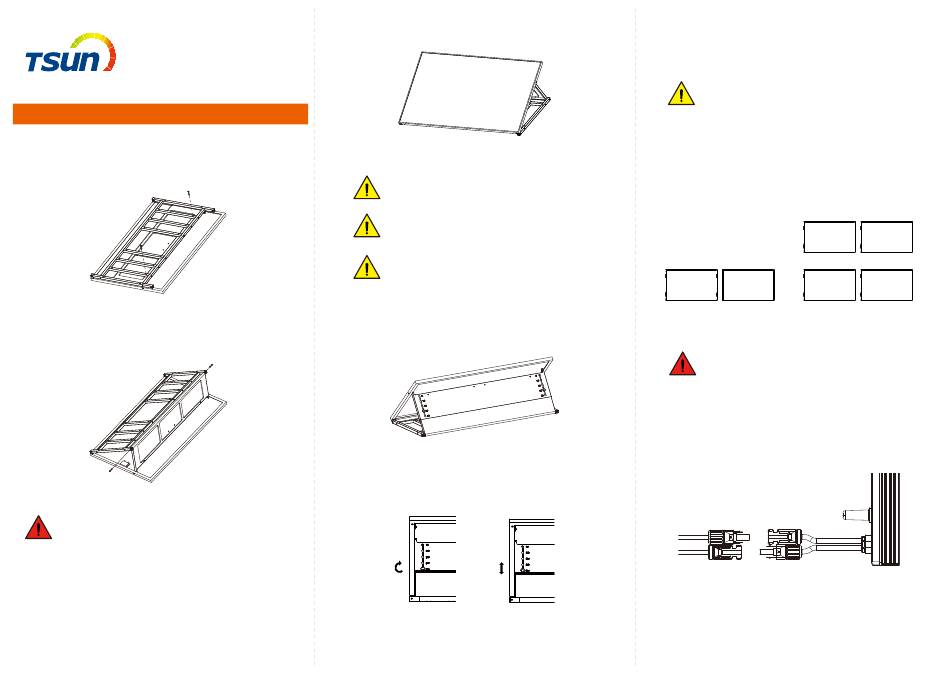

Step 1. Open the ESK lock

Pick the Easy Solar Kit out of the package. Put down it slowly and make
the bracket upside. There are two ESK locks on the bracket. Use a hex
wrench (#5) to open the ESK locks as shown below.
Figure Open the ESK lock

Step 2. Fix the bracket to the base plate

Lift up the base plate and the bracket. Screw on the ESK locks to fix the
bracket on the base plate as shown below.
Figure Fix the bracket to the base plate
The bracket must be fixed on the base
WARNING
plate, which will promote the wind loading
rating of Easy Solar Kit.

Step 3. Find a suitable location

Turn around the Easy Solar Kit and make the base plate downside. Find
a suitable location and put down the Easy Solar Kit lightly. Adjust the
direction and make the solar panel facing the sunlight.
01
Figure Put down the Easy Solar Kit
Please put the Easy Solar Kit on a flat and
CAUTION
non-shadow location.
Easy Solar Kit has a 2m end cable and
CAUTION
should be set near the socket. Or use the
expansion cable as shown in Step6.
Please adjust the direction at noon to get a
CAUTION
better electric energy production during
the day time.

Step 4. Adjust the angle of bracket (optional)

Angle Lock is an optional function for Easy Solar Kit. There are two
angle locks on the bracket.
Figure Angle lock on the bracket
Use a hex wrench (#5) to open the angle locks. Slowly put down the solar
panel and make the angle locks slip into the right angle. Then tighten the
angle locks again.
Figure Adjust the angle lock
02
Recommended angle parameters can be
CAUTION
found in the appendix table.

Step 5. Install the Expansion Kit (optional)

TSOL-ESK800-E has one Expansion Kit and TSOL-ESK1600-E has three
Expansion Kits. Install the Expansion Kit according to Step 1 to Step 4.
The recommended distribution is shown as below:
Expansion
Kit
Expansion
Expansion
ESK800-E
Kit
Kit
Figure The recommended distribution
Please pay attention to the distance
WARNING
between two
ESK products and make sure that there is
Use DC Extend Cable to connect the Expansion Kit to the ESK800-E or
ESK1600-E.
Figure Connect the DC connector
03
Expansion
Kit
ESK1600-E
