Quick Installation Guide
TSOL-ESK400-P

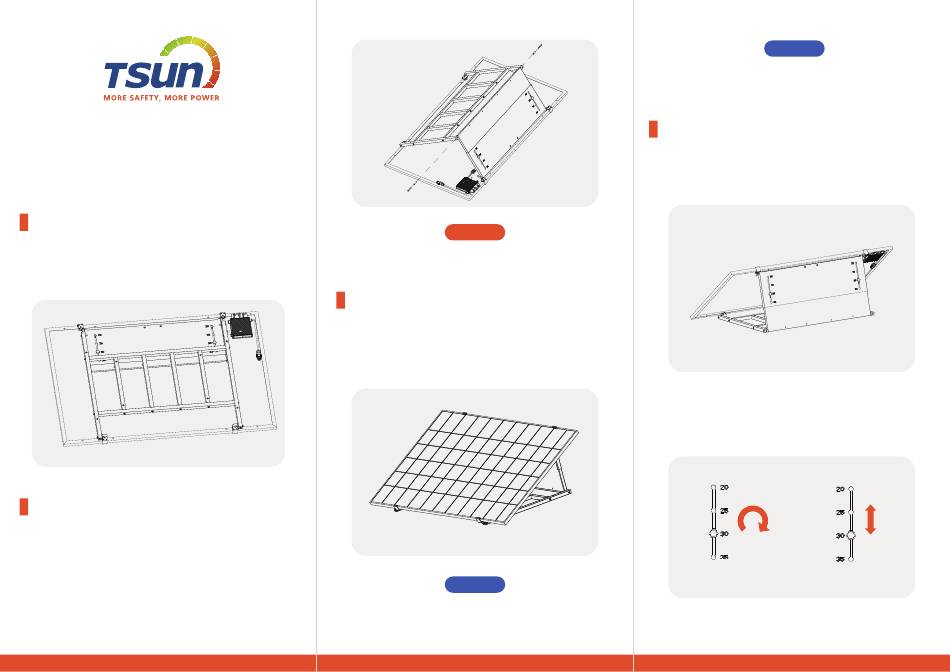

Step 1: Open the Easy Solar Kit
Pick the Easy Solar Kit out of the package. Put down it slowly
and make the bracket upside. Open the Easy Solar Kit.
Step 2: Fix the bracket to the base plate
Lift up the base plate and the bracket. Screw on the ESK locks
to fix the bracket on the base plate as shown below.
V 1.2
Warning
The bracket must be fixed on the base plate, which will promote the wind
loading rating of Easy Solar Kit.
Step 3. Find a suitable location
Turn around the Easy Solar Kit and make the base plate
downside. Find a suitable location and put down the Easy Solar
Kit lightly. Adjust the direction and make the solar panel facing
the sunlight.
Caution
Please put the Easy Solar Kit on a flat and
non-shadow location.
www.tsun-ess.com
Caution
Easy Solar Kit has a 5m end cable and should be set near the socket. Or
use the expansion cable as shown in Step 5.
Step 4. Adjust the angle of bracket
(optional)
Angle Lock is an optional function for Easy Solar Kit. There are
two angle locks on the bracket.
Open the angle locks. Slowly put down the solar panel and
make the angle locks slip into the right angle. Then tighten the
angle locks again.
