1 Megalink second monitor display kit

1.1 Introduction

This document describes how to use a compatible television set as a Megalink second display.

1.2 Overview

1.3 Components

Included in kit:
• USB network adapter
• Display device
• SD card with predefined ID
• HDMI cable
• USB cable (power)

1.4 Monitor requirements

The monitor must meet the following requirements:

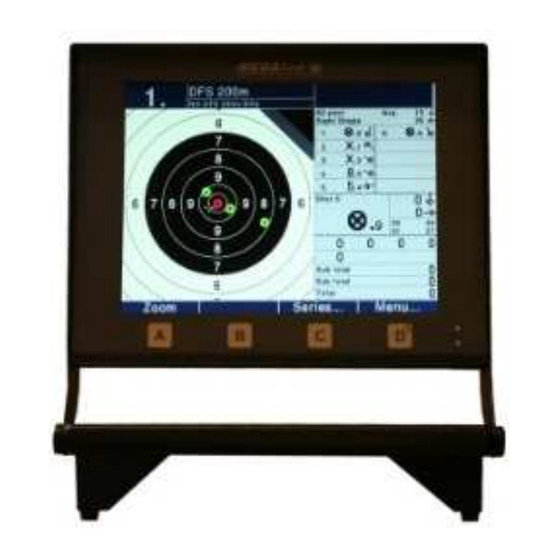

• Type DU3 (Color monitor)
• Software version 13.49 or later. (Firmware 02.17). Updated software can be
downloaded from www.megalink.no.

1.5 Television set requirements

The television set must have the following:
• Full HD
• HDMI input
• USB in/out (Optional. External USB micro power source can be used.)
Second monitor display kit
ID: BRUK-DU-DISPLAY-001
1-1 network /
local LAN
ML2000 User Manual
15.11.2016
HDMI
Not included in kit:
• Megalink DU3 color monitor
• 1-1 network cable / local LAN components
• Television set
• Optional external USB micro power source
Ver.: 001
Power from TV-USB
or external power
source
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML2000 and is the answer not in the manual?

Questions and answers

Related Manuals for MEGAlink ML2000

Summary of Contents for MEGAlink ML2000

  • Page 1 ML2000 User Manual ID: BRUK-DU-DISPLAY-001 15.11.2016 Ver.: 001 1 Megalink second monitor display kit 1.1 Introduction This document describes how to use a compatible television set as a Megalink second display. 1.2 Overview Power from TV-USB or external power HDMI source...
  • Page 2 Second monitor display kit ML2000 User Manual ID: BRUK-DU-DISPLAY-001 15.11.2016 Ver.: 001 1.6 Network setup examples The monitors and television sets can be connected as a 1-1 network or via your local LAN. 1.6.1 1-1 network 1.6.2 Local LAN Page 2 of 4...
  • Page 3 3. Power up the device. Use the television USB as power source. External power can be used. DC 5.0V / 700mA. 4. Wait for the Megalink logo to appear on the screen. 5. Shut down the device by simply remove the power source.
  • Page 4 If you need to change the ID on the SD card you can do the following: 1. Insert the SD card to a SD card reader connected to the computer. 2. Download MLSetPiIp.zip from www.megalink.no/download. 3. Unzip the file and start the application MLSetPiIp.exe.
