LioN-M I/O-Modules
Lumberg
I/O
Network
Technical Manual
0970 PSL 700 | 0970 PSL 701

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUMBERG LioN-M 0970 PSL 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belden LUMBERG LioN-M 0970 PSL 700

Summary of Contents for Belden LUMBERG LioN-M 0970 PSL 700

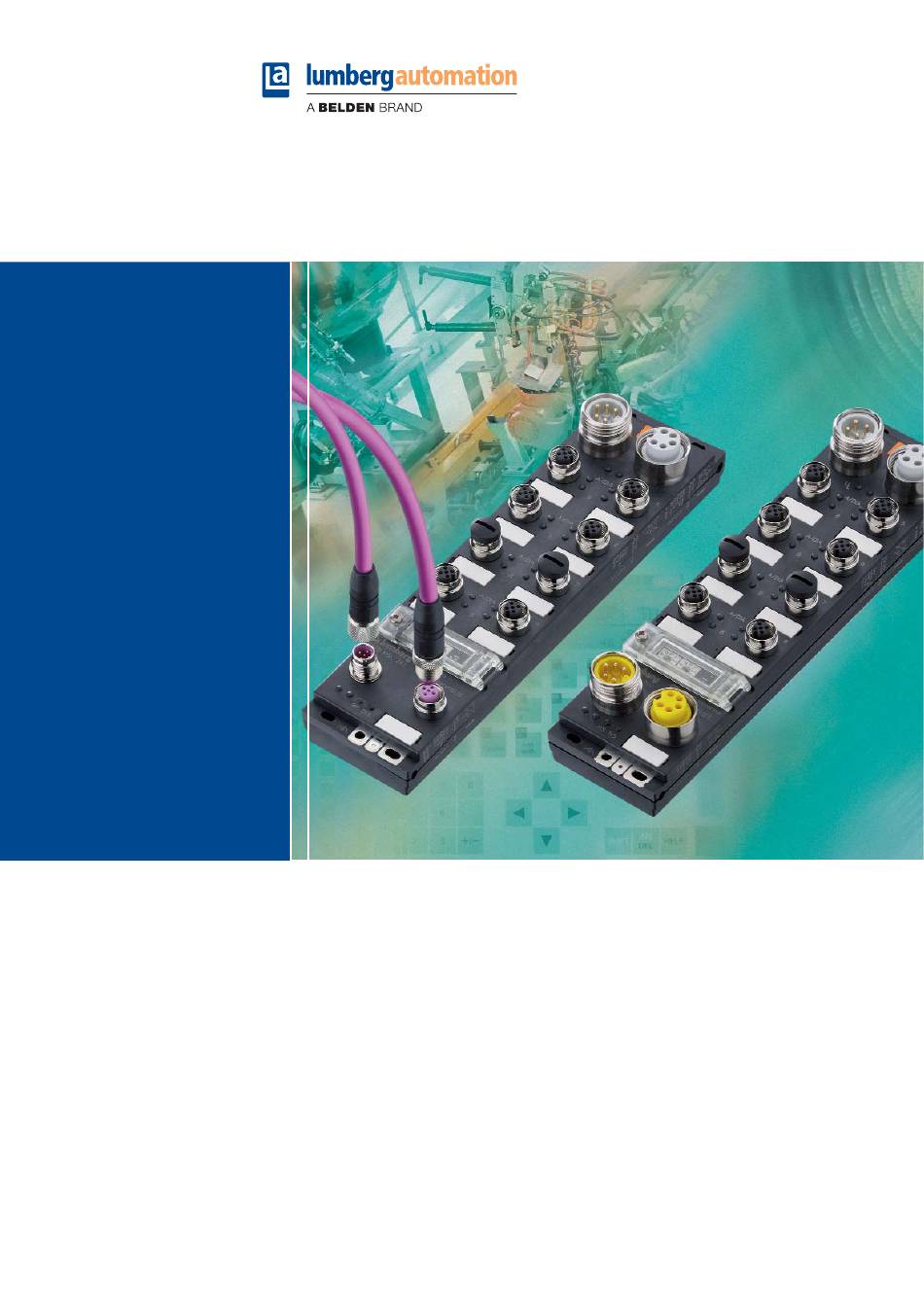

  • Page 1 LioN-M I/O-Modules Lumberg Network Technical Manual 0970 PSL 700 | 0970 PSL 701...
  • Page 2 Technical Manual 0970 PSL 700 | 0970 PSL 701 LioN-M I/O modules for Profibus 0970 PSL 700 0970 PSL 701 16 digital channels (p­switching), 16 digital inputs (p­switching), channels can be used universally as inputs or with rotary address switches outputs, with rotary address switches Version 1.21 / 24.09.2014 Specifications subject to alteration!
  • Page 3 LioN­M. Belden reserves the right to alter these technical modifi­ cations or to modify this Manual at any time without Please contact us if you have any further questions notice.
  • Page 4 Technical Manual 0970 PSL 700 | 0970 PSL 701 The error­free, secure operation of the product requires prevention regulations that apply to the specific activity proper transport, storage, set­up and assembly, as well being performed during project planning, installation, as careful operation. The intended operation of the commissioning, maintenance and testing of the device can only be guaranteed when the housing is devices.
  • Page 5 Technical Manual 0970 PSL 700 | 0970 PSL 701 3. Pin assignment Connection Function +5 V* 3.1Profibus DP M12 male/female connector, Profibus DP Line A 5 poles, B­coded In/Out GND* Line B earth The signals marked with * are internal signals which the module provides for supplying a terminator.
  • Page 6 Technical Manual 0970 PSL 700 | 0970 PSL 701 4. Communication with the module 4.1Addressing a) Rotary address switches Two rotary switches, located above the M12 bus con­ nections behind a clear cover, are used for direct adjustment of the Profibus address. The switches for setting the tens and the ones of the address are indi­...
  • Page 7 Technical Manual 0970 PSL 700 | 0970 PSL 701 a) Configuration example in the Siemens Company's S7 Software Integration of the module onto the Profibus line Selection and entry of the configuration Version 1.21 / 24.09.2014 Specifications subject to alteration! Page 7 of 17...
  • Page 8 Technical Manual 0970 PSL 700 | 0970 PSL 701 Display of the selected confi­ guration (here: Universal 16 DI/16 DO) Version 1.21 / 24.09.2014 Specifications subject to alteration! Page 8 of 17...
  • Page 9 Technical Manual 0970 PSL 700 | 0970 PSL 701 b) Configuration example CoDeSys of the 3S Software Solutions Co. (Moeller) Select module from the list Automatic address reservati­ on (can be modified by the user) Version 1.21 / 24.09.2014 Specifications subject to alteration! Page 9 of 17...
  • Page 10 Technical Manual 0970 PSL 700 | 0970 PSL 701 Automatic allocation of the module address (can be modi­ fied by the user) Mark the desired type and select with the button Version 1.21 / 24.09.2014 Specifications subject to alteration! Page 10 of 17...
  • Page 11 Technical Manual 0970 PSL 700 | 0970 PSL 701 Byte­to­byte display of the addresses of the selected configuration Bit­to­bit display of the addresses of the selected configuration Version 1.21 / 24.09.2014 Specifications subject to alteration! Page 11 of 17...

  • Page 12: Bit Assignment

    Technical Manual 0970 PSL 700 | 0970 PSL 701 4.4Bit assignment The Profibus telegram permits transmission of a maxi­ mum of 244 bytes of information data. Depending on utilization of the 0970 PSL 700 module, the information data with these modules consists of two or four bytes; for module 0970 PSL 701 it consists of two bytes (input only).
  • Page 13 Technical Manual 0970 PSL 700 | 0970 PSL 701 b) Profibus network In case of an error Profibus devices send a diagnostic content cannot be altered. The user­specific diagnostics message to the Master (sensor/actuator short circuit, begins with byte 6. undervoltages).
  • Page 14 Technical Manual 0970 PSL 700 | 0970 PSL 701 Version 1.21 / 24.09.2014 Specifications subject to alteration! Page 14 of 17...
  • Page 15 Technical Manual 0970 PSL 700 | 0970 PSL 701 The undervoltage diagnostics of the actuator system power supply can be switched off with DIP switch No. 1, next to the addressing switches (see illustration below), as needed – e.g. when utilising the 0970 PSL 700 universal module solely as an input module.
  • Page 16 Technical Manual 0970 PSL 700 | 0970 PSL 701 5. Technical data 5.1 General data 5.5 Technical data – Inputs Degree of protection IP 67 (only in locked position) Input circuit Type 3 according to Operating temperature range ­10°C / +60°C IEC 61131­2 Weight 380 g...
  • Page 17 Technical Manual 0970 PSL 700 | 0970 PSL 701 Belden Deutschland GmbH Support & Service Im Gewerbepark 2 Belden offers you comprehensive technical 58579 Schalksmühle assistance, helping you with the application of Lumberg Automation pro­ GERMANY ducts. Tel. +49 (0) 23 55 ­ 5044­000 Fax +49 (0) 23 55 ­...

This manual is also suitable for:

Lumberg lion-m 0970 psl 701
