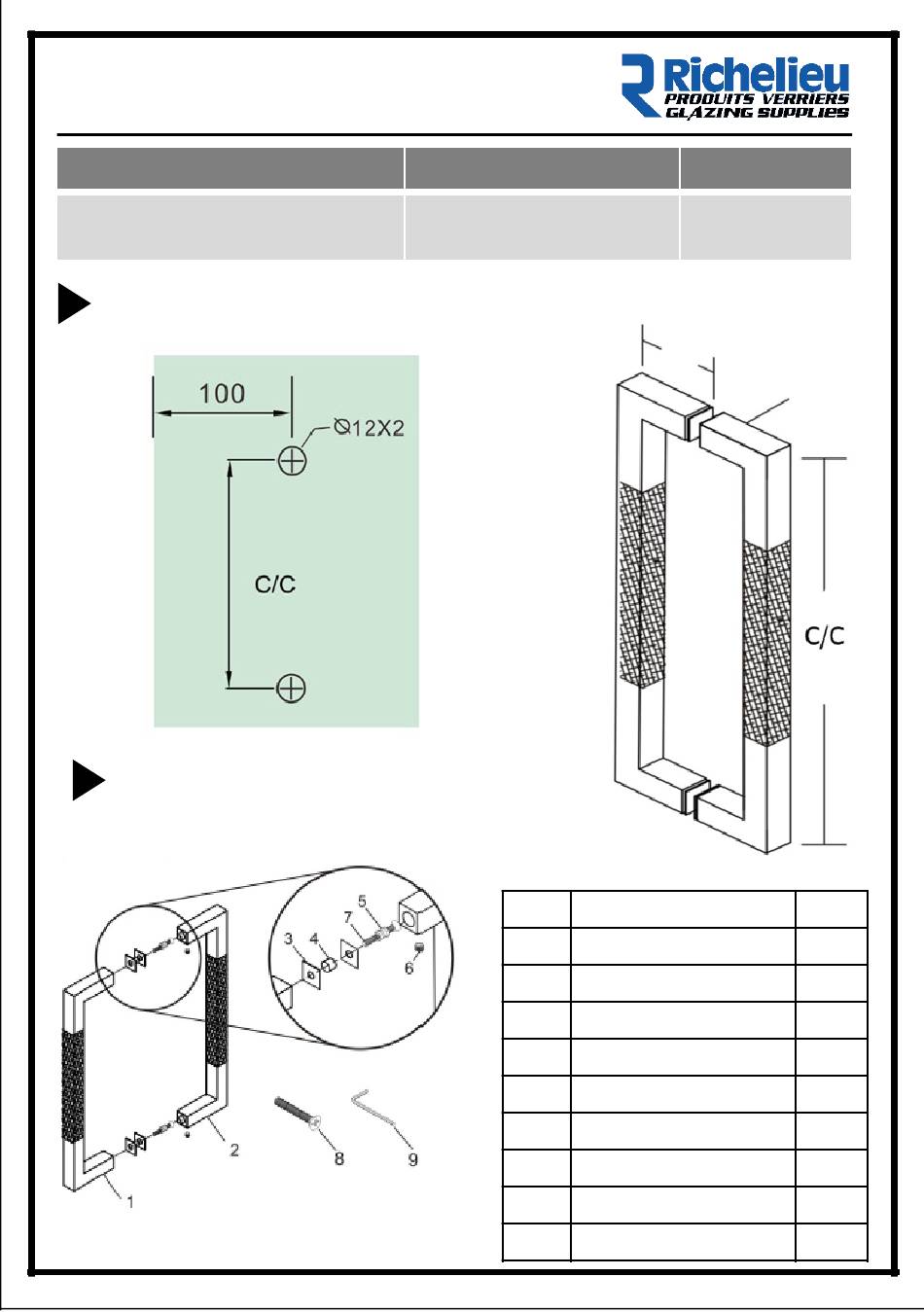

Square T ubular Handle with Wood Insert
Code
70536SQ30BW170
Measurements
*
*mm
Components
SS304 + wood
*
Material
(2-3/4'')
70 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Gasket
4
Plastic Washer
5
Collar
6
Set Screw
7
Screw M8x45mm
8
Screw M8x80mm
9
Allen Key 3mm
C/C
(36'')
914 mm
Ø (1-3/16'')
30 mm
Qty
1
1
4
2
2
2
2
2
1
Advertisement
Related Manuals for Richelieu 70536SQ30BW170
Summary of Contents for Richelieu 70536SQ30BW170
- Page 1 Square T ubular Handle with Wood Insert Code Material (36’’) 70536SQ30BW170 SS304 + wood 914 mm Measurements (2-3/4’’) 70 mm Ø (1-3/16’’) 30 mm Components Name Exterior Handle Interior Handle Gasket Plastic Washer Collar Set Screw Screw M8x45mm Screw M8x80mm...
- Page 2 Square T ubular Handle with Wood Insert Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included Install the interior handle onto the collars. Install the set screws and tighten with the Allen key to finish the installation...
- Page 3 Poignée tubulaire carrée avec prise en bois Code Material (36’’) 70536SQ30BW170 SS304 + wood 914 mm Dimensions (2-3/4’’) 70 mm Ø (1-3/16’’) 30 mm Composantes Qté Poignée extérieure Poignée intérieure Joints Rondelles en plastique Collier Vis M6x45mm Vis M6x80mm Clé Allen 3mm...
- Page 4 Poignée tubulaire carrée avec prise en bois Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus Installez la poignée intérieure sur les colliers. Installez les vis de réglage et serrez avec la clé...
