Round T ubular Handle with Mitered Corners
Code
87O2S10424xxx
Measurements
*
*mm
Components
*
Material
SS304
(2-3/8'')
60 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Metal Washer dia25mm
4
Plastic Washer
5
Gasket
6
Collar
7
Set Screw
8
Screw M6x40mm
9
Screw M6x80mm
10
Allen Key 2.5mm
C/C
(24'')
610 mm
Ø (3/4'')
19 mm
Qty
1
1
4
2
4
2
2
2
2
1
Advertisement
Related Manuals for Richelieu 87O2S10424 Series
Summary of Contents for Richelieu 87O2S10424 Series

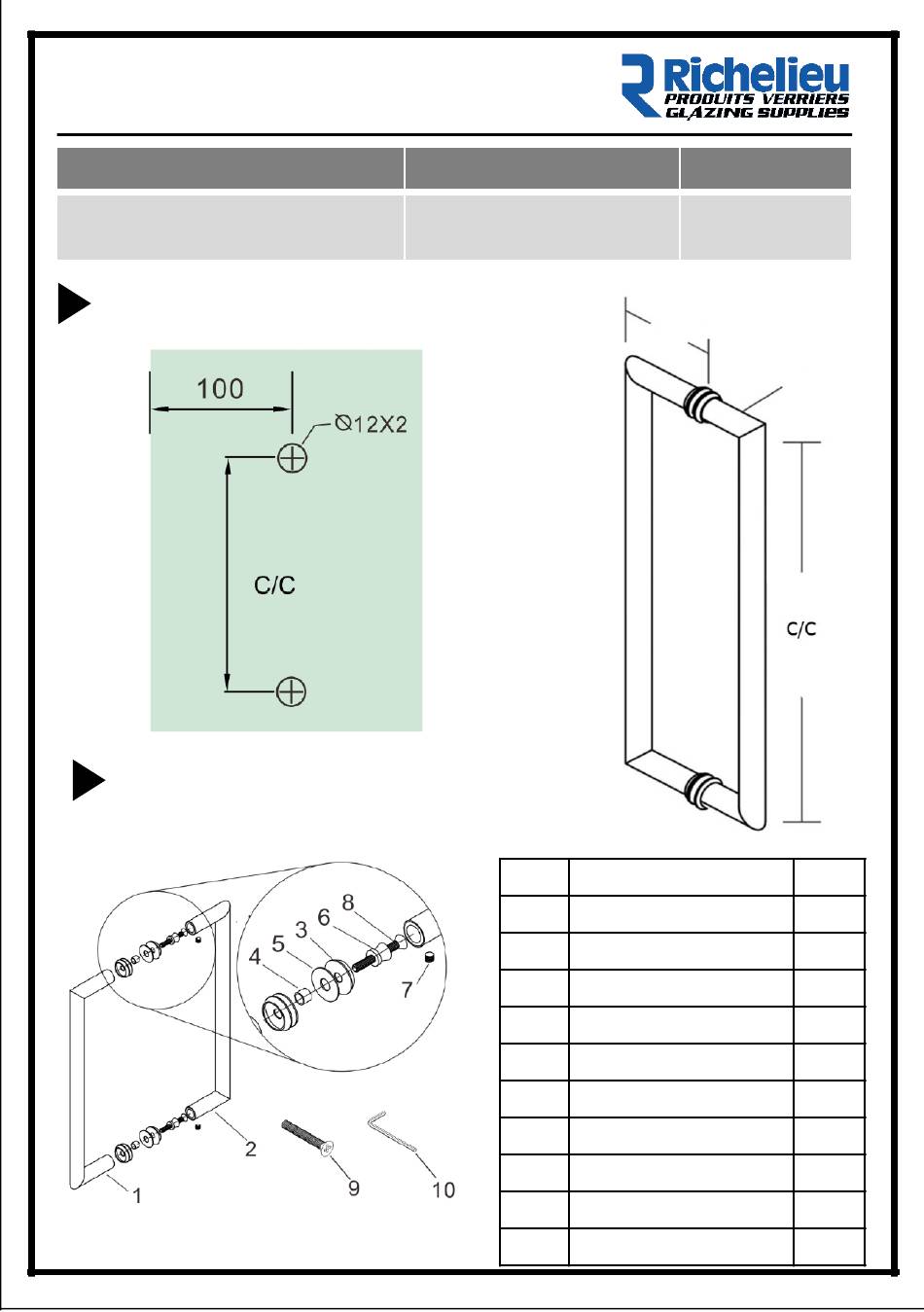

- Page 1 Round T ubular Handle with Mitered Corners Code Material (24’’) 87O2S10424xxx SS304 610 mm (2-3/8’’) Measurements 60 mm Ø (3/4’’) 19 mm Components Name Exterior Handle Interior Handle Metal Washer dia25mm Plastic Washer Gasket Collar Set Screw Screw M6x40mm Screw M6x80mm Allen Key 2.5mm...
- Page 2 Round T ubular Handle with Mitered Corners Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included Install the interior handle onto the collars. Install the set screws and tighten with the Allen key to finish the installation...
- Page 3 Poignée tubulaire ronde biseautée Code Material (24’’) 87O2S10424xxx SS304 610 mm (2-3/8’’) Dimensions 60 mm Ø (3/4’’) 19 mm Composantes Qté Poignée extérieure Poignée intérieure Rondelles en métal 25mm dia Rondelles en plastique Joints Collier Vis M6x40mm Vis M6x80mm Clé Allen 2.5mm...
- Page 4 Poignée tubulaire ronde biseautée Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus Installez la poignée intérieure sur les colliers. Installez les vis de réglage et serrez avec la clé...
