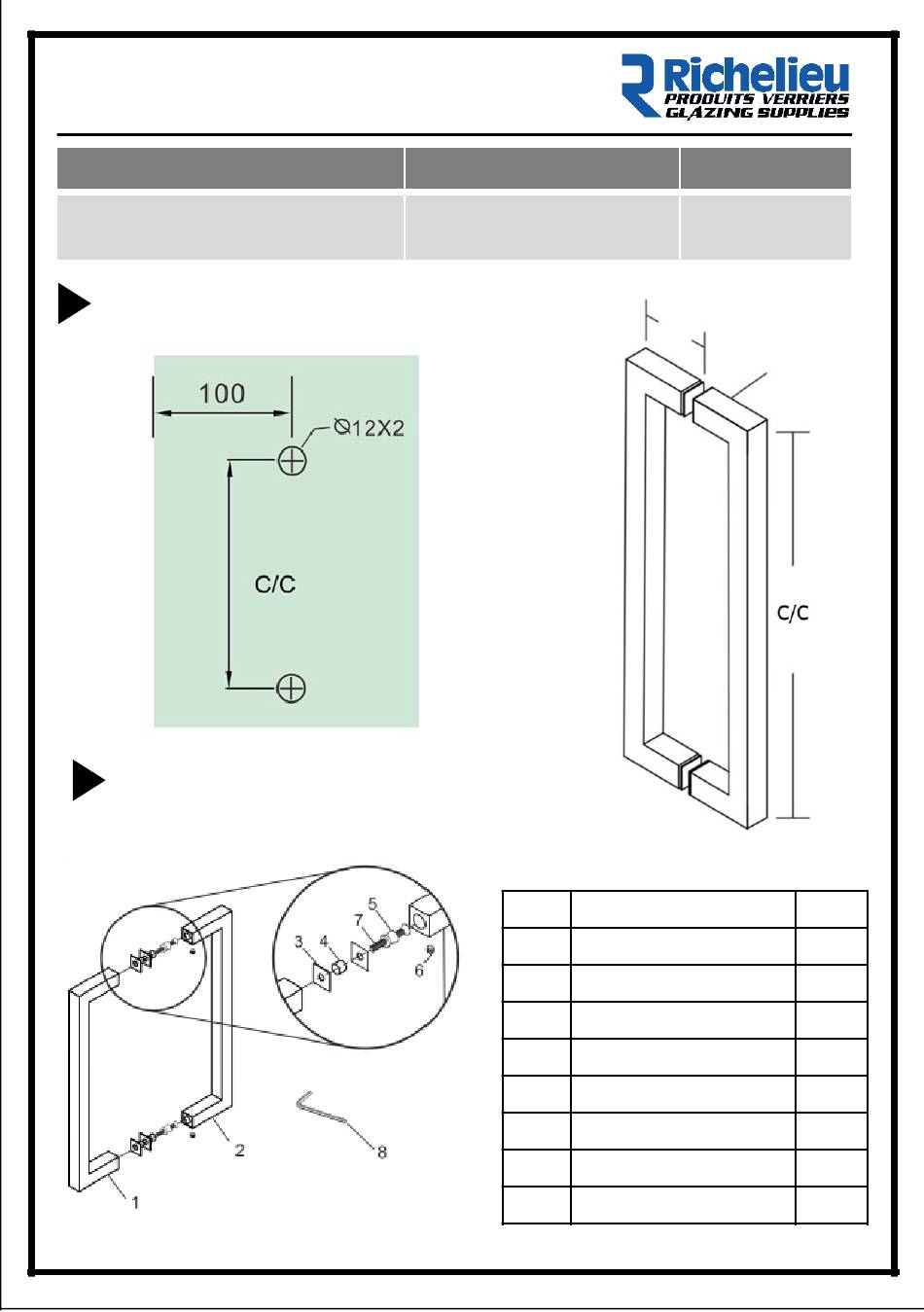

Square T ubular Handle
Code
701DHD2S103xxx
Measurements
*
*mm
Components
*
Material
SS304
(2-3/4'')
70 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Gasket
4
Plastic Washer
5
Collar
6
Set Screw
7
Screw M6x50mm
8
Allen Key 2.5mm
C/C
(23-5/8'')
300 mm
Ø (1'')
25.4 mm
Qty
1
1
4
2
2
2
2
1
Advertisement
Related Manuals for Richelieu 701DHD2S103 Series
Summary of Contents for Richelieu 701DHD2S103 Series
- Page 1 Square T ubular Handle Code Material (23-5/8’’) 701DHD2S103xxx SS304 300 mm (2-3/4’’) Measurements 70 mm Ø (1’’) 25.4 mm Components Name Exterior Handle Interior Handle Gasket Plastic Washer Collar Set Screw Screw M6x50mm Allen Key 2.5mm...
- Page 2 Square T ubular Handle Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included Install the interior handle onto the collars. Install the set screws and tighten with the Allen key to finish the installation...
- Page 3 Poignée tubulaire carrée Code Material (23-5/8’’) 701DHD2S103xxx SS304 300 mm (2-3/4’’) Dimensions 70 mm Ø (1’’) 25.4 mm Composantes Qté Poignée extérieure Poignée intérieure Joints Rondelles en plastique Collier Vis M6x50mm Clé Allen 2.5mm...
- Page 4 Poignée tubulaire carrée Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus Installez la poignée intérieure sur les colliers. Installez les vis de réglage et serrez avec la clé...
