- Page 1 Under-machine cooler 9000 S + Under-machine cooler / Model series 9468 Under-counter cooler Model series 9469 Countertop cooler Model series 9469 WMF Cooler USER MANUAL ENGLISH...
- Page 2 Introduction and General information Congratulations on choosing your WMF cooler You will be impressed by its technical design and durability. Retain these instructions near the coffee machine so that you and your operating staff have the right information handy and can take the correct action in the event of any technical problems that may arise.
-
Page 3: Table Of Contents
Hazard for the device Directives Duties of the owner / operator Warranty claims Appendix: Technical data Cooler technical data Appendix: Accessories and spare parts Spare parts for Under-machine cooler 9468 Spare parts for under-machine cooler, under-counter cooler, countertop cooler 9469 User Manual WMF Cooler... -
Page 4: Safety
The gases may present a fire hazard and can explode. > Do not damage the coolant circuit. When cleaning or defrosting, do not use pointed or sharp objects. > Do not use electrical appliances in the cooler. User Manual WMF Cooler... -
Page 5: General Safety Instructions
Safety General safety instructions Hazards to the operator At WMF, safety is one of the most essential product features. The effectiveness of safety devices can only be ensured if the following points are observed: > Do not touch hot device CAUTION components. - Page 6 > Children must not play with the device. > Cleaning and user maintenance must not be performed by children. User Manual WMF Cooler...
- Page 7 > Never immerse the mains plug in water or other liquids. Never pour water or other liquids over the mains plug. Always keeps the mains plug dry. User Manual WMF Cooler...
- Page 8 > The cooler must only be used to cool milk in the containers provided. > The milk containers must only be used for milk that is safe to drink. User Manual WMF Cooler...
- Page 9 • Hot liquids can irritate the skin, and the heat poses a scalding hazard. > Never reach under the spouts while cleaning. > Ensure that no one ever drinks the cleaning solution. User Manual WMF Cooler...
- Page 10 > Always connect the milk hoses tightly. Slipping hazard CAUTION • Fluids may be discharged if used improperly or if faults occur. These fluids can cause a slipping hazard. > Check the unit regularly for leaks. Make sure no water is being released. User Manual WMF Cooler...
-
Page 11: Intended Use
> The WMF cooler must only be used as intended. • The WMF cooler is designed to cool milk for the coffee machine. • This machine is intended for use in hotels, restaurants, and similar locations. The machine may be installed in selfservice areas if a responsible person is on location while it is being... -
Page 12: Conditions For Use And Installation
The manufacturer shall not be liable for any damage resulting from this. • Under no circumstances must the WMF cooler be used to chill liquids other than milk (chilled, pasteurised, homogenised, UHT). - Page 13 Safety • Only WMF Service engineers are allowed to connect the coffee machine to the preprepared connection points. WMF Service is neither authorised nor responsible for carrying out any onsite installation work prior to connection. • The device must only be connected and commissioned by WMF Service.
-
Page 14: Introduction And General Information
Follow the Warranty chapter • for the installation location w starting on page 36 > Always follow the User Manual. Technical data w starting on page 37 Note / tip INSTRUCTIONS • Instructions for safe use and tips for easier operation. User Manual WMF Cooler... -
Page 15: Operation Safety Instructions
Operation safety instructions Risk of explosion WARNING If coolant should still escape despite all Follow the Safety chapter precautions: w starting on page 4 > Do not use naked flames. > Remove flammable objects. > Ventilate the room immediately. User Manual WMF Cooler... -
Page 16: Under-Machine Cooler 9000 S

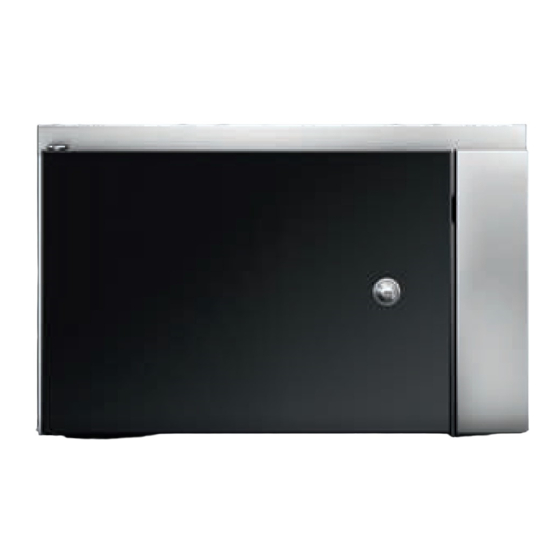

Undermachine cooler 9000 S + Under-machine cooler 9000 S + Milk container with lid Hose outlet to the machine Plug&Clean adapter with hose ON/OFF switch Front door with seal Door lock User Manual WMF Cooler... -
Page 17: Safety Instructions
™ ™ Connect the milk hoses (see illustration) Use the correct milk hoses and stickers for the 2-milk types which come with the coffee machine. Hose routing for one type of milk Hose routing for two types of milk User Manual WMF Cooler... -
Page 18: Operation
> Never open the door for long, otherwise the temperature will rise and the milk will spoil. > Do not kink the milk hoses. IMPORTANT Basic Milk only > Insert the milk nozzle into the milk foamer of the coffee machine. User Manual WMF Cooler... - Page 19 The milk hoses remain attached. ™ ™ Pour milk into each milk container ™ ™ Push the lid back on the container ™ ™ Push the milk container back in carefully ™ ™ Close the front door User Manual WMF Cooler...
-
Page 20: Empty Message (Optional)
> Clean the inside of the device before longer breaks in operation. Leave the door slightly ajar. ™ ™ Switch off the cooler using the ON/OFF switch The switch will no longer be lit up. ™ ™ Disconnect mains plug User Manual WMF Cooler... -
Page 21: Under-Machine Cooler, Under-Counter Cooler, Countertop Cooler
Undermachine cooler, undercounter cooler, countertop cooler Under-machine cooler, under-counter cooler, countertop cooler Milk container with lid ON/OFF switch Plug&Clean adapter with hose Hose outlet to the machine Front door with seal Door lock User Manual WMF Cooler... -
Page 22: Safety Instructions
• Do not kink the milk hoses. ™ ™ Connect the milk hoses (see illustration) Use the correct milk hoses and stickers for the 2-milk types which come with the coffee machine. Hose routing for two types of milk User Manual WMF Cooler... -
Page 23: Operation
> Never open the door for long, otherwise the temperature will rise and the milk will spoil. > Do not kink the milk hoses. IMPORTANT Basic Milk only > Insert the milk nozzle into the milk foamer of the coffee machine. User Manual WMF Cooler... - Page 24 The milk hoses remain attached. ™ ™ Pour milk into each milk container ™ ™ Push the lid back on the container ™ ™ Push the milk container back in carefully ™ ™ Close the front door User Manual WMF Cooler...
-
Page 25: Empty Message (Optional)
> Clean the inside of the device before longer breaks in operation. Leave the door slightly ajar. ™ ™ Switch off the cooler using the ON/OFF switch The switch will no longer be lit up. ™ ™ Disconnect mains plug User Manual WMF Cooler... -
Page 26: Care
4 system. > Clean the milk system daily. > Also follow the cleaning instructions for the coffee machine. > Replace the milk hose at regular intervals. > Follow all hygiene instructions. > Follow the HACCP cleaning schedule. User Manual WMF Cooler... - Page 27 • All cleaning agents are perfectly tuned to the Follow the Safety chapter cleaning programs. w starting on page 4 > Use only WMF cleaning agent. Scalding hazard CAUTION • If the milk aperture is clogged, the milk hose Follow the Safety chapter can burst and hot water can spray out.
-
Page 28: Cleaning The Milk Container / Milk Hose
™ ™ Allow the milk containers to fully dry after cleaning ™ ™ Clean the milk hoses with the adapter, as described in the User Manual for the coffee machine ™ ™ Replace the milk containers and insert the milk hoses ™ ™ Close the door User Manual WMF Cooler... -
Page 29: Cleaning The Inside Of The Cooler
4 > Use only WMF cleaning agent. ™ ™ Stir 5 ml of the WMF special cleaner (order no. 33 0683 6000) from the measuring bottle into a bucket containing 0.5 l of lukewarm water ™ ™ Use this stirred cleaning solution to wipe out the inside of the cooler ™... -
Page 30: Adjust Temperature
™ ™ Remove the cap on the back of the cooler Turn clockwise g cooler Turn counter clockwise g warmer A quarter turn is approx. 2K. The stop for the warmest setting has a slight detent. Turning past the detent will switch off the device. Series 9469 Series 9468 User Manual WMF Cooler... -
Page 31: Malfunctions
Empty message does • There is a layer of ice in the cooler on the rear cover not appear Defrosting the cooler Service and addresses You can reach WMF Service if the local service point is not known. WMF GmbH WMF Platz 1 D 73312 Geislingen (Steige) -
Page 32: Safety And Warranty
• After shut off for several days we recommend thorough cleaning. • If the cooler was not transported in a standing position then it must be given at least 2 hours to stand in a vertical position before switching on. User Manual WMF Cooler... -
Page 33: Directives
Any modifications to the machines that are not approved by us will cause this declaration to become invalid. Collecting technical documentation: WMF GmbH. The original declaration of conformity is included with the machine. The device bears the CE mark. - Page 34 Disposal as household or general commercial waste is strictly forbidden. Requirements traceability pursuant to EC regulation No. 1935/2004 and Good Manufacturing Practice within the meaning of EC regulation No. 2023/2006 are ensured and guaranteed. User Manual WMF Cooler...
-
Page 35: Duties Of The Owner / Operator
These measures are conducted by WMF Service or by WMF authorised service personnel as part of the maintenance work. When cleaning the milk system, only use the special WMF cleaning agents provided by WMF. The... -
Page 36: Warranty Claims
(e.g., User Manual and maintenance instructions). • With respect to faults which occur as the result of failure to use original WMF spare parts or incorrect assembly by the purchaser or by third parties or by faulty or negligent treatment. -
Page 37: Appendix: Technical Data
22 kg 22 kg Continuous sound pressure < 70 dB(A) level (Lpa) We reserve the right to make technical modifications. A-evaluated sound pressure level Lpa (slow) and Lpa (impulses) at operating personnel workplace is under 70 dB(A) in any working mode. User Manual WMF Cooler... - Page 38 50 mm between the back of the machine and the wall. If possible, there should be a clearance of 50 mm to the sides. (Lateral connection WMF coffee machine and WMF cooler not taken into account.) Ventilation If the possibility of ventilation is limited, adequate ventilation must be provided.
-
Page 39: Appendix: Accessories And Spare Parts
Appendix: Accessories and spare parts Appendix: Accessories and spare parts Spare parts for Under-machine cooler 9468 Number Unit Designation Order No. Undermachine cooler 9468 Plug&Clean adapter 33 2427 5000 Milk container, 1 type 33 2418 4000 Milk container lid, 1 type 33 2388 8000 Milk container, 2 types... - Page 40 Model series 9468/9469 33 0916 8010 10.2020 Your nearest WMF Service: RICMAS International Pte. Ltd. 25 International Business Park German Center #01-01/10 Singapore 609916 Tel.: +65 6562 8853 E-Mail: info@ricmas.com Web: www.ricmas.com © 2008–2020 WMF GmbH All rights reserved, in particular duplication, distribution and translation rights.
