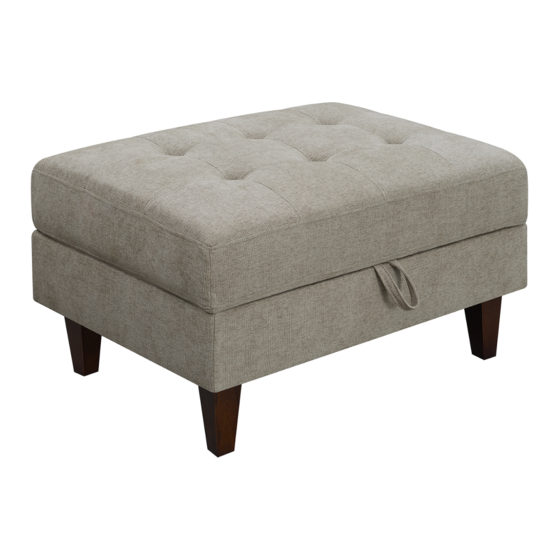

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 509797 STORAGE OTTOMAN COASTERFURNITURE.COM PAGE 1 OF 3 REVISION 0: 11/25/2021 REVISION 1: 03/18/2022...
- Page 2 ITEM : 509797 ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1 . Remove hardware from box and sort by size. 2.Please check to see that all hardware and parts are present prior to start of assembly. 3 . Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly. WARNING! 1.
- Page 3 5 0 9797 ITEM : ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 864mm(34'') 622mm(24.5'') 476mm(18.75'') Note : Dimension tolerance ±5% PAGE 3 OF 3 COASTERFURNITURE .COM...
