Summary of Contents for Elite BAKEWELL

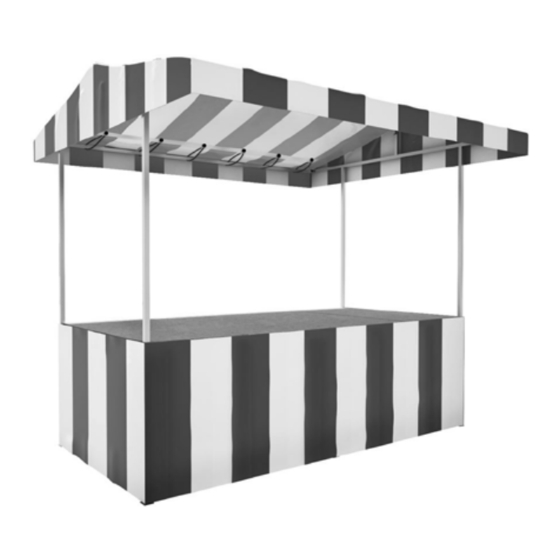

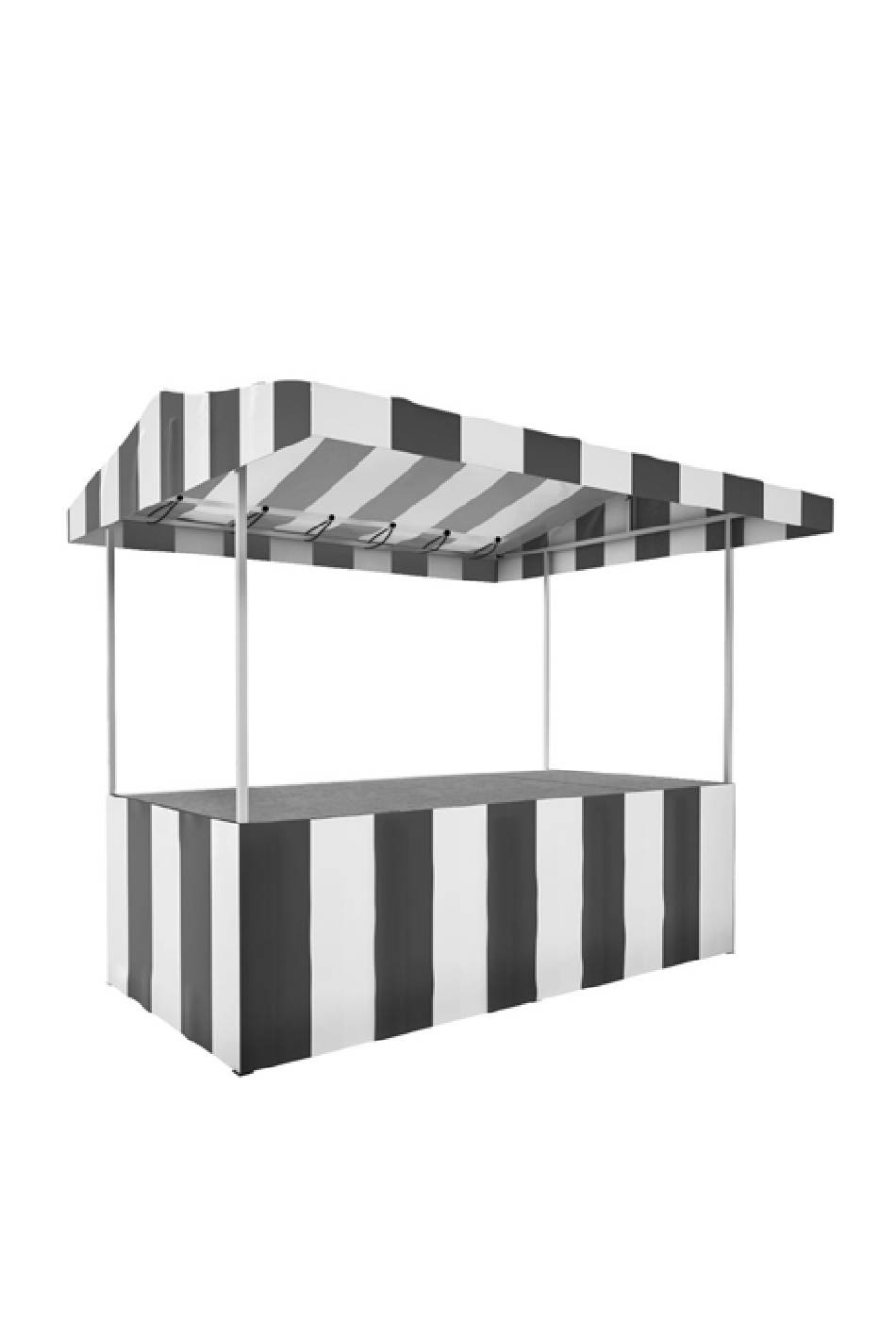

- Page 1 BAKEWELL elite 8’ x 4’ MARKET STALL ASSEMBLY GUIDE...
- Page 2 PARTS When first unpacking your Bakewell Elite Market Stall please take the time to ensure that all parts are present using the check list below. If you believe a part is missing then you should contact Gavin Kenning Engineering Limited at your earliest convenience.
- Page 3 ASSEMBLY Your market stall frame is designed to slot together by hand as shown in the images below. You do not require any specialist tools for assembly. Use the below diagram in conjunction with the parts list shown on the opposite page to identify and place the parts within the frame assembly.
- Page 4 COUNTER, ROOF & SKIRT Tarpaulins Counter Boards All tarpaulins are equipped with eylets and Counter boards lie over the counter bars of the permanently attached ball loop bungees with Market Stall. Counter boards K1 and K4 have hooks that are designed to wrap around the cutouts in the corners which allow the boards to market stall frame and hook back over the plastic lock into place inbetween the legs at each end of...
- Page 5 WARNING Do not climb on framework or counter top (where present). Do not use a steel hammer to assemble framework, doing so may cause damage to surface finishes or bodily injury. Note: no specialist tools are required to assemble this product but if so required, use a rubber or wooden mallet only.
-
Page 6: Care Instructions
CARE INSTRUCTIONS Always ensure that this product and its components, including the framework, tarpaulin and counter boards (where present) are completely dry before placing in storage. Failure to do so may result in mildew and/or rust or other damage to surfaces and finishes. -
Page 7: Warranty & Service
LIMITED WARRANTY FOR NEW GAVIN KENNING ENGINEERING LTD MARKET STALLS WHAT IS WARRANTED All components of this Market Stall are covered by a limited 60-month warranty and are warranted free from defects in material and workmanship for a period of 60 months from the date of purchase.
