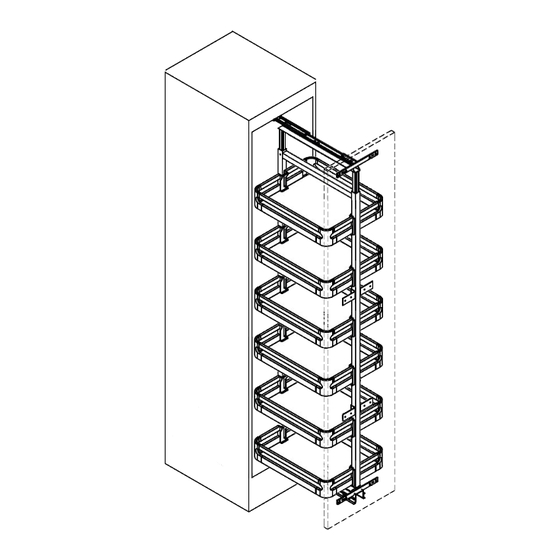

Pull-Out Pantry
Installation Instructions
for 400MM and 450mm width cupboards
Features
o Stainless Steel
trays
o Soft Close
o Adjustable frame
height
o Adjustable tray
positions
o Door position
adjustments
Cabinet
Dimensions
400mm$
450mm$
Width$
Width$
Model$
Model$
Suits&
Suits&
400mm&
450mm&
standard&
standard&
width&
width&
cupboard&
cupboard&
Minimum&
Minimum&
of&365mm&
of&415mm&
Adjustable&
Adjustable&
1700mm&to&
1700mm&to&
2000mm&
2000mm&
Minimum&
Minimum&
of&482mm&
of&482mm&
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Pull-Out Pantry 400MM
Summary of Contents for Elite Pull-Out Pantry 400MM
- Page 1 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Features o Stainless Steel trays o Soft Close o Adjustable frame height o Adjustable tray positions o Door position adjustments Cabinet Dimensions 400mm$ 450mm$ Width$ Width$ Model$ Model$ Suits& Suits& 400mm&...
- Page 2 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Listing of key parts Listing of fixing hardware 1 x Top Runner 28 x ST4*14 Pan Head 1 x Bottom Runner Screws 1 x Main Frame 8 pcs for fixing Top ! ...
- Page 3 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Step One – Fix Bottom Runner Position runner on centre axis of cabinet floor 15mm from front edge Ensure the runner is square with cabinet and centred Securely fix with 8 x ST4*14 Pan Head Wood Screws ...
- Page 4 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Step Three – Fix Frame to Bottom Runner Loosen two Riser Anchor Nuts (A) on the Bottom Runner with hex key Place Frame holes (B) on riser anchor nuts (A) and slide towards front so Riser Anchor Nuts (A) are visible through the Frame holes (B) ...
- Page 5 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Step Four – Fix Frame to Top Runner Ensure Top Runner is fully assembled with Top Runner Anchors (A) Remove rubber rings from Top Runner Anchors (A) Slide top of Frame (B) up so the Top Runner Anchors (A) insert through the holes in the top of the Frame ...
- Page 6 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Step Four – Fix Frame to Cabinet Door Fix each T-Bar (A) to Door with 6 x ST4*14 Pan Head Screws. Position T- Bars as per diagram Fix 2 x M6*15 Hex Bolts onto Top T-Bar and Bottom T-Bar as per diagram ...
- Page 7 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Step Five – Door Alignment and Stabilisation Horizontal Door Adjustment: Loosen (but do not remove) the middle Hex Bolt on Top and Bottom T-Bars (A) (see Step 4). Then use the left and right Hex Bolts (B) to position the Door horizontally.
- Page 8 Pull-Out Pantry Installation Instructions for 400MM and 450mm width cupboards Step Six – Installation of Pantry Baskets Clip Basket Anchors to Baskets: Carefully attach the Basket Anchors (A) to the Baskets as per the diagram Clip Baskets to Frame: Carefully attach each Basket to the Frame by first inserting one attached Basket Anchor into the Frame and then gently lowering or raising the other side carefully until its Basket Anchor clips in.
