REGAL COT
HK 30
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the HK 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elite HK 30

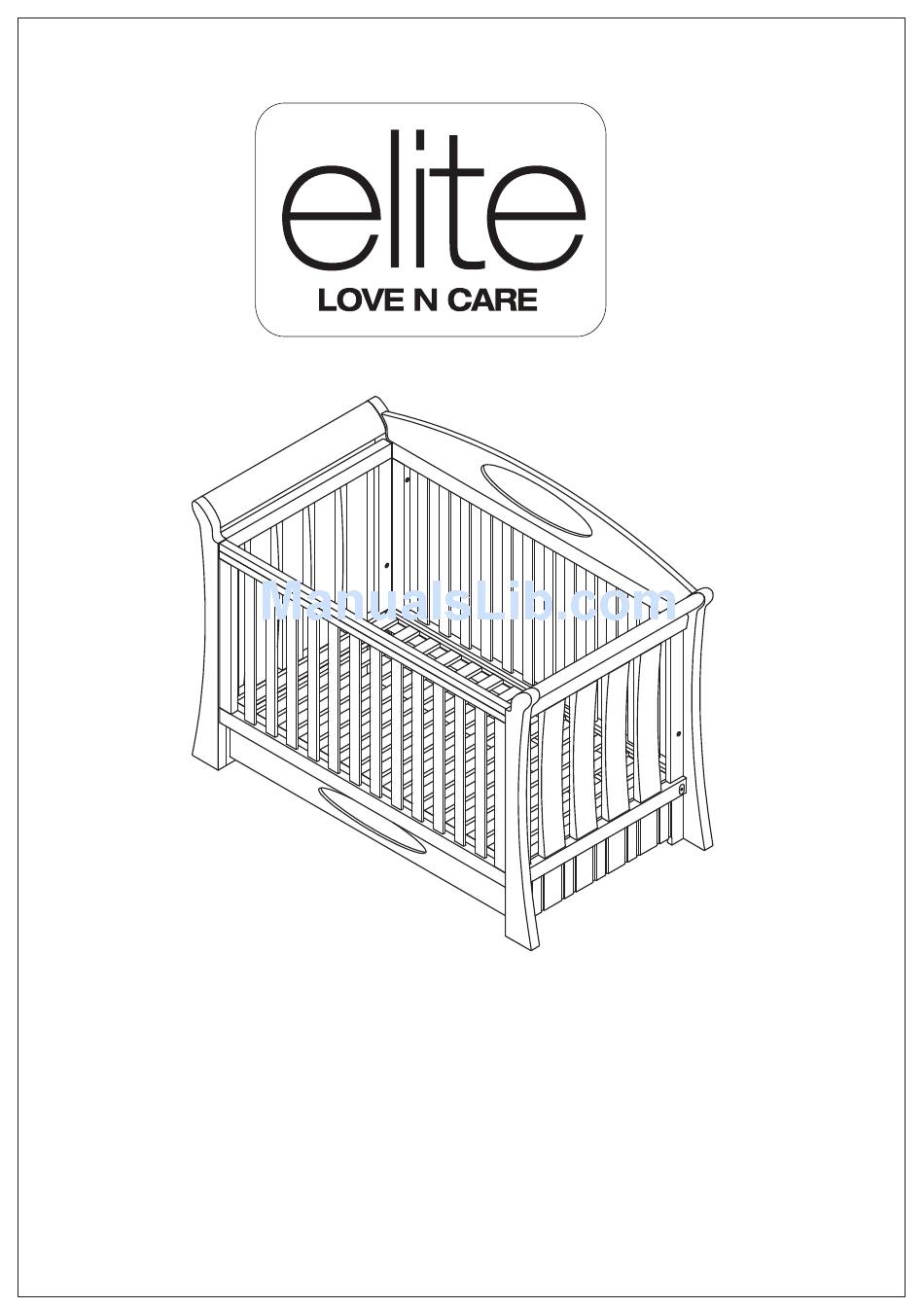

  • Page 1 REGAL COT HK 30 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 Congratulations on your new quality Love N Care product from our exclusive range of baby products. Your new product has been manufactured to comply with the Highest Quality Standards and comes with a 12-month warranty. As you will soon learn there are many more great features about your new Love N Care product.
  • Page 3 Safety guidelines and instructions must always be followed before making use of this product, please retain these instructions for future reference. This product complies with product standard: AS/NZS 2172:2010 Cots for household use - Safety Requirements WARNING This cot has been designed for a child up to 25kg Do not leave your child unattended when the dropside is in the lower position RECOMMENDED MATTRESS SIZE: This cot has been manufactured for use with a mattress which measure 760mm wide by 1310mm long and 130mm in thickness.
  • Page 4: Parts List

    Parts List Left End Support Rail 2pcs Right End Drawer Front Back Top Cap Drawer Side Left Fixed Side Drawer Side Right Mattress Base Drawer Back Front Top Cap M Drawer Bottom Drop Side N Drawer Bottom Rail 1pc...
  • Page 5 Parts List Step 1 (1) Nail (2) M6x25mm Step 2 (3) M6x50mm Step 3 +4 (4) Bolt (3) M6x50mm Step 5 (5) Iron Plate Step 6 (6) M6x70mm (6) M6x70mm Step 7 Step 8 (7) 6x44mm Metal Dowel Screw x2 Step 9 (8) 15x12mm Cam Lock x2 Step 10...
  • Page 6 Step 1 Setting up the ends FIG 1. 1. Screw in the Nails (1) on the ends as shown in fig 1. FIG 2. 2. Attach the 2 support rails (H) to the left end (A) and right end (B) using 8pcs bolts (4) with allen key (13) Step 2 Attaching the teething rail to the dropside FIG 3.
  • Page 7 Step 3 Attaching the dropside FIG 4. To attach the dropside (G) place it on the assembled nails, start with the top assembled nail FIG 5. as shown in fig 4 and then the lower nail as shown in fig 5. Repeat for each end of the dropside. Step 4 Attaching the dropside to the ends FIG 6.
  • Page 8 Step 5 Attaching the base to the ends and dropside FIG 7. Attach the mattress base (E) to the left end (A) and right end (B), using 4pc iron plates (5) and 4pcs bolts (3) with allen key (12) as shown in fig 7. Step 6 Assembling the fixed side FIG 8.
  • Page 9 Step 7 Attaching the fixed side to the cot FIG 9. Screw in the bolts (6) into the fixedside (D) and tighten with the allen key (12) as shown in fig 9. Step 8 Assembling the drawer FIG 10. attach 2pcs metal dowel screw (7) to drawer front (I) and drawer back (L) using screwdriver (13) as shown in fig 10.
  • Page 10 Step 9 Attaching the side on the drawer FIG 11. Attach the drawer bottom rail (N) to drawer front (I) and drawer back (L) with 2pcs cam locks (8) and tighten with screwdriver (13) as shown in fig 11. Step 10 Attaching ends on the drawer FIG 12.
  • Page 11 Step 11 Inserting the drawer base Insert the drawer bottom (M) to drawer front (I) and drawer back (L) Step 12 Attaching the ends to the drawers Attach the drawer side left (J) to drawer front (I) and drawer back (L) using 2 bolts (3) and nuts (9) and tighten with allen key (13) FIG 13.
  • Page 12 Step 13 Attaching the drawer to the assembled cot Attach the drawer on the runners located under the base.
  • Page 13 Using the dropside...
  • Page 14 Adjusting the mattress base FIG 14. Before raising the mattress base to the highest position, take out the bolts and nuts (11 and 10) as shown in fig 14. FIG 15. Attach 4pc bolts (3) to the left and right sides to fix the mattress base to the cot.
  • Page 15 Converting cot to Sofa You will need to first loosen the base screw (10) with allen key (12) fig 18. Then you will need to remove the (4) bolt from the dropside and lift the dropside of the nails. The you should uncrew the nail (fig 17) then tighten the base with the (10) FIG 17.
  • Page 18 Contact Us Head Office: Love N Care Pty Ltd. 297-299 Canterbury Rd, Revesby NSW 2212 Australia Contact No: 02 9774 4655 Fax: 02 9774 4633 Email: info@lovencare.com.au Website: www.lovencare.com.au...
