Installation
Diagram
Wring
box
Power
switch
3(1)
1(2)
N
IS
IG
LS
Power
Door
indicator
L
switch
2(1)
4(2)
F
1 2
3
4
5
CnL1
CnP3
1
CnP2
2
12
3
11
4
10
5
6
9
8
7
8
7
6
5
Rinsing agent
4
control panel
missing switch
3
2
CnP1
1
6
ISS
5
Salt
4
missing
3
spy-lamp
2
1
Sensoer
Relay
temperature
RELE'
BRITISH GAS Telephone: 08700100099
Water lever
switch
1
1
2
3
6 7 8
1/2 washing
Washing
Softer
Overflow
valve
pump
valve
switch
1
4
IAQS
S
D-ED
1/2
2
ML
1
2
2
3
C
1
AQS
Inlet
1
valve
Domestic Dishwasher
WQP12-CBE
Temperatur
limiter
Heater
Temperature
limiter
GB
Code:0120501762
Advertisement
Related Manuals for Haier WQP12-CBE
Summary of Contents for Haier WQP12-CBE

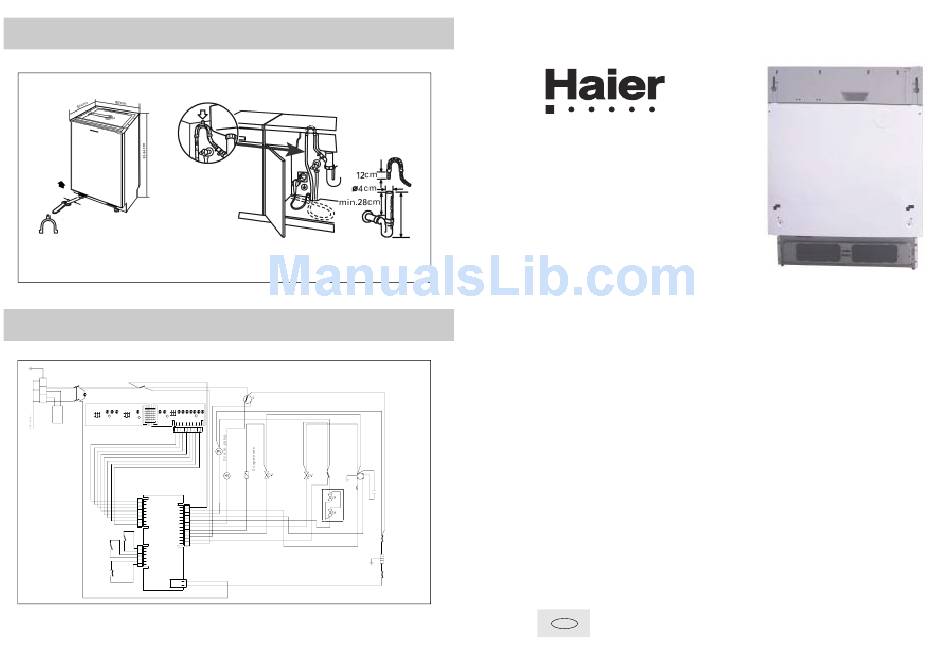

- Page 1 CnP2 Rinsing agent control panel missing switch CnP1 Salt missing spy-lamp Sensoer Relay temperature RELE’ BRITISH GAS Telephone: 08700100099 1/2 washing Washing Softer Overflow valve pump valve switch IAQS Inlet valve Temperatur limiter Heater Temperature limiter Domestic Dishwasher WQP12-CBE Code:0120501762...
-
Page 2: Safety Is A Good Habit To Get Into
If in doubt, contact a qualified professional. ance and disconnect the plug from the wall socket. Then, con- - The dishwasher must only be used by adults for the washing of sult the section entitled, "Troubleshooting." If you cannot re- household dishes and cooking utensils. -
Page 3: Detergent And Rinse Aid
The hardness of the water varies from place to place. If hard The dishwasher is designed to allow for adjusting the amount of water is used in the dishwasher, deposits will form on the dishes salt consumed based on the hardness of the water used. This is and utensils. -
Page 4: Loading The Dishwasher
Setting The Start Delay Time Open the door of the dishwasher partially. If the "C" button is pressed (see, Close-up View" Control Panel"). The start time for the wash cycle can be delayed for 2,4 or 6 hours. -
Page 5: Wash Cycle Table
Heat wash Energy Saving Tips -It is important to try and run the dishwasher when it is fully loaded in order to save on energy. In order to prevent odors from forming and food from caking onto the dishes, you can run... -
Page 6: Troubleshooting
Levelling the Appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level. In any case, the appliance should not be inclined more than 2˚. If the appli- ance is level, it will help ensure proper performance.
