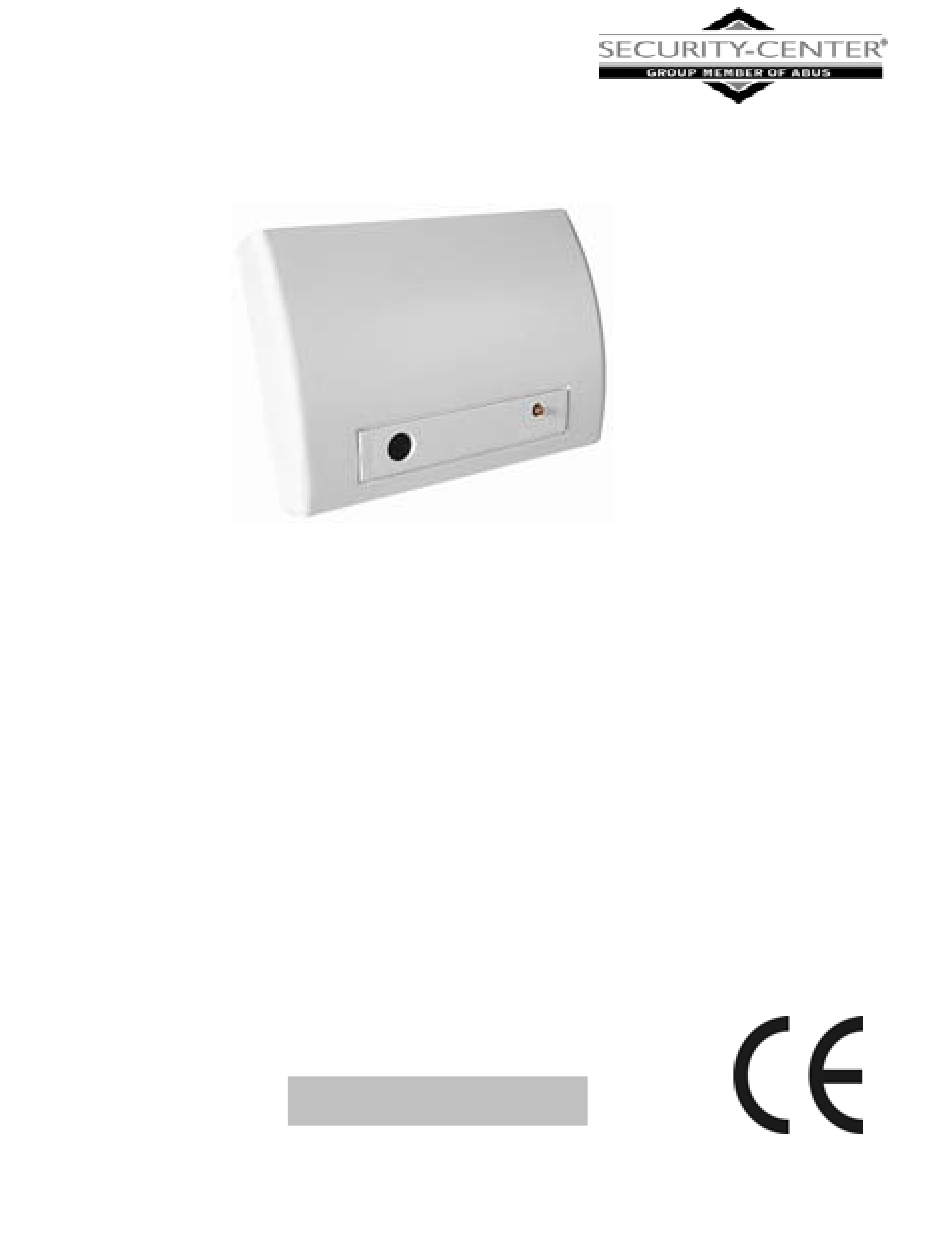

- Page 1 Radio-controlled glass breakage Installation Guide FU5130...
- Page 2 Fig. 1 Jumper connection LK3 – learn LED on/off Jumper connection LK1 – swap inputs Knockout Battery Knockout Tamper Fig. 2 Fig. 3...
- Page 3 Preface Dear Customer, Thank you for purchasing this radio-controlled glass breakage detector. You made the right decision in choosing this state-of-the-art technology, which complies with the current standards of domestic and European regulations. The CE has been proven and all related certifications are available from the manufacturer upon request.
- Page 4 etc.) to avoid possible false alarms. The maximum distance to the window is 6 meters. For security glass (Class A1 to A3, EH01), the distance must not exceed 3.65 meters. Do NOT install the detector: • In rooms with interior window blinds, e.g., made of wood. •...
- Page 5 Learning Switch your radio alarm equipment / radio receiver to learn mode. See the system instructions for advice on this. Radio variant: Insert a battery in the radio-controlled glass breakage detector (Fig. 1, Pos. 7). Check for correct polarity. Hold the tamper protection for the front panel (Pos. 9, Fig.1) and the wall removal contact down with the finger and release it several time to trigger radio signals.
- Page 6 Specifications Power supply: 3V Li/MnO2 Battery size: Average current: 0,03mA Battery life time: up to 36 months Environmental class: I (-10°C to +50°C) Security Grade: INCERT No: CXXXXXX Housing material: Flame retardant ABS Weight (excl. battery): 140g Dimensions: 80mmx108mmx43mm (HxWxD)
