- Page 1 KNIPEX Quality – Made in Germany Operating instructions 12 72 190 KNIPEX NexStrip ® Multi-Tool for Electricians...
-
Page 2: Table Of Contents
CONTENTS General Notes on operating instructions Symbols Copyright Guarantee and warranty Safety Intended use Design and function Design Function Operation Cutting cables Stripping cables Crimping wire ferrules Maintenance Changing the feed stop Technical data Disposal Status: 17.05.22... -
Page 3: General
1.3 Copyright These operating instructions and all documentation supplied with this tool are protected by copyright and remain the property of KNIPEX. The reprinting of these instructions, even in extract form, is only permitted with the written consent of C. Gustav Putsch KG. -
Page 4: Guarantee And Warranty
• Repairs or conversions are carried out by unauthorized persons. • Original accessories or spare parts from KNIPEX are not used. • Defective components are not repaired immediately to minimise the extent of the damage and so as not to impair the safety of the tool (obligation to repair). -
Page 5: Design And Function

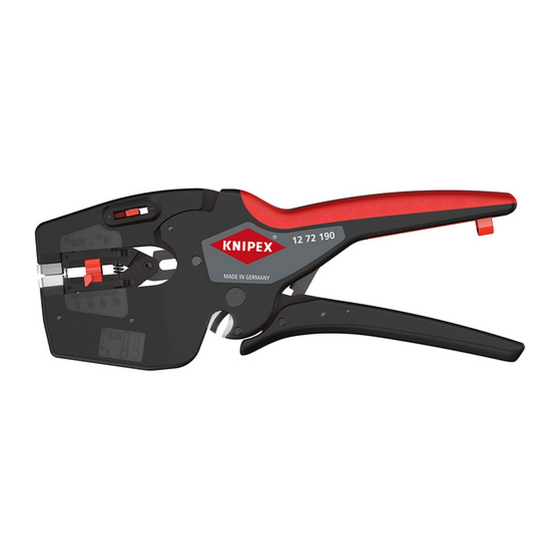

3.1 Design 0,03 – 10 0,25 - 4 / < 10 2 x 2,5 Structure of KNIPEX NexStrip ® Clamping jaws for cables/conductors Knife for stripping Adjustable feed stop (3.0 to 17.0 mm) Fine adjustment to adjust the knife’s cutting depth for special materials or temperature conditions (zero position in the middle) Wire cutter for Cu and Al conductors (max. -
Page 6: Operation
OpEraTiON Operation 4.1 Cutting cables < 10 mm Cutting cables 1. Insert the end of the cable to be cut between the two blades of the wire cutter. 2. Firmly press the two handles together. 4.2 Stripping cables (with single, multi and fine-stranded conductors) Note: »... - Page 7 OpEraTiON 4.2.1 Fine adjustment of the knife For insulation materials that are difficult to work with or if there are special temperature conditions, it may be necessary to adjust the cutting depth. » Push the fine adjustment slider in the “+” or “-” direction to individually adjust the knife’s cutting depth.
-
Page 8: Crimping Wire Ferrules
OpEraTiON 4.3 Crimping wire ferrules Loose single or Twin wire ferrules can be crimped to cables using the crimp- ing die on the underside of the tool. The square crimp ensures optimal con- tact in the clamp. 0,25 - 4,0 2 x 2,5 Crimping wire ferrules 1. -
Page 9: Maintenance
MaiNTENaNCE Maintenance 5.1 Changing the feed stop Replacing the feed stop 1. Press the feed stop together lightly and pull it off the guide. 2. Place the new feed stop on the guide so that it clicks into place. 3. Check if the feed stop can be put into different settings. Status: 17.05.22... -
Page 10: Technical Data
TEChNiCal DaTa Technical data Technical data Unit Item number KNIPEX NexStrip ® – 12 72 190 Item number spare blades block – 12 49 21 Item number spare length stop – 12 49 23 Length Weight Material body – Glass fibre reinforced plastic Material blade –... - Page 11 Status: 17.05.22...
- Page 12 KNIPEX-Werk C. Gustav Putsch KG 42337 Wuppertal Tel.: +49 202 – 47 94-0 Fax: +49 202 – 47 74 94 info@knipex.com www.knipex.com...
