AUDAC MBK102 Installation Manual

MBK102
The MBK102 is a mounting bracket that can be used to mount different kinds of bass cabinets with a limited size and weight. The
simple, nevertheless very efficient principle provides an easy and quick installation.

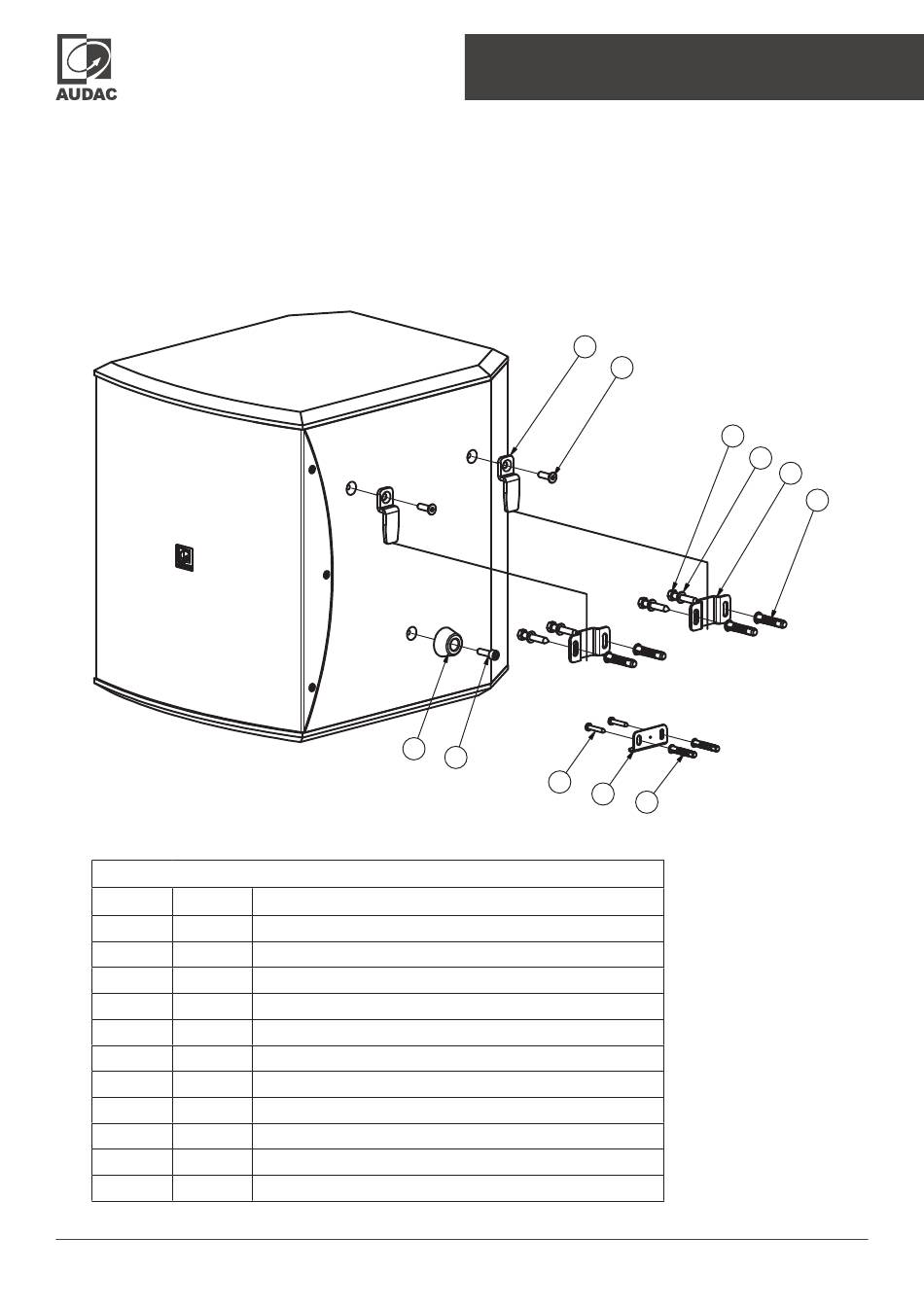

It is based on two protruding wall brackets and an L-bracket which have to be installed against the wall on the desired location.
Two metal hooks and a rubber foot have to be fixed to the provided points on the bass cabinet, using the included screws. Sub-
sequently, the metal hooks have to be hooked into the protruding part of the wall brackets while the rubber foot slides over the
L-bracket, preventing accidental lift-out of the cabinet.
Installation:
ITEM QTY
1 2
2 2
3 4
4 4
5 2
6 4
7 2
8 1
9 2
10 1
11 1
1
11
PARTS LIST
DESCRIPTION
Speaker bracket
Countersunk hex head screw - M6 x 20
Hex wood screw - 6 x 50
Washer - M6
Wall bracket
Wall plug - dia 8 x 40
Wall plug - dia 6 x 35
Wall bracket - L-bracket
Round head screw - 4 x 25
Hex socket head screw - M6 x 20
Rubber foot
Installation manual
1
2
10
9
8
3
4
5
6
7
MBK102 installation guide
