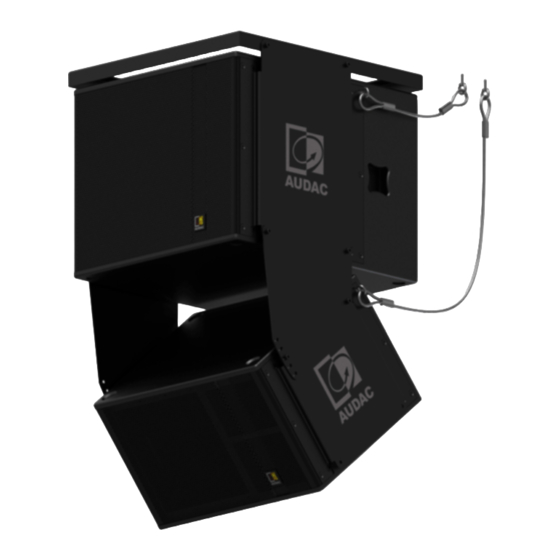

MBK302S Installation Manual

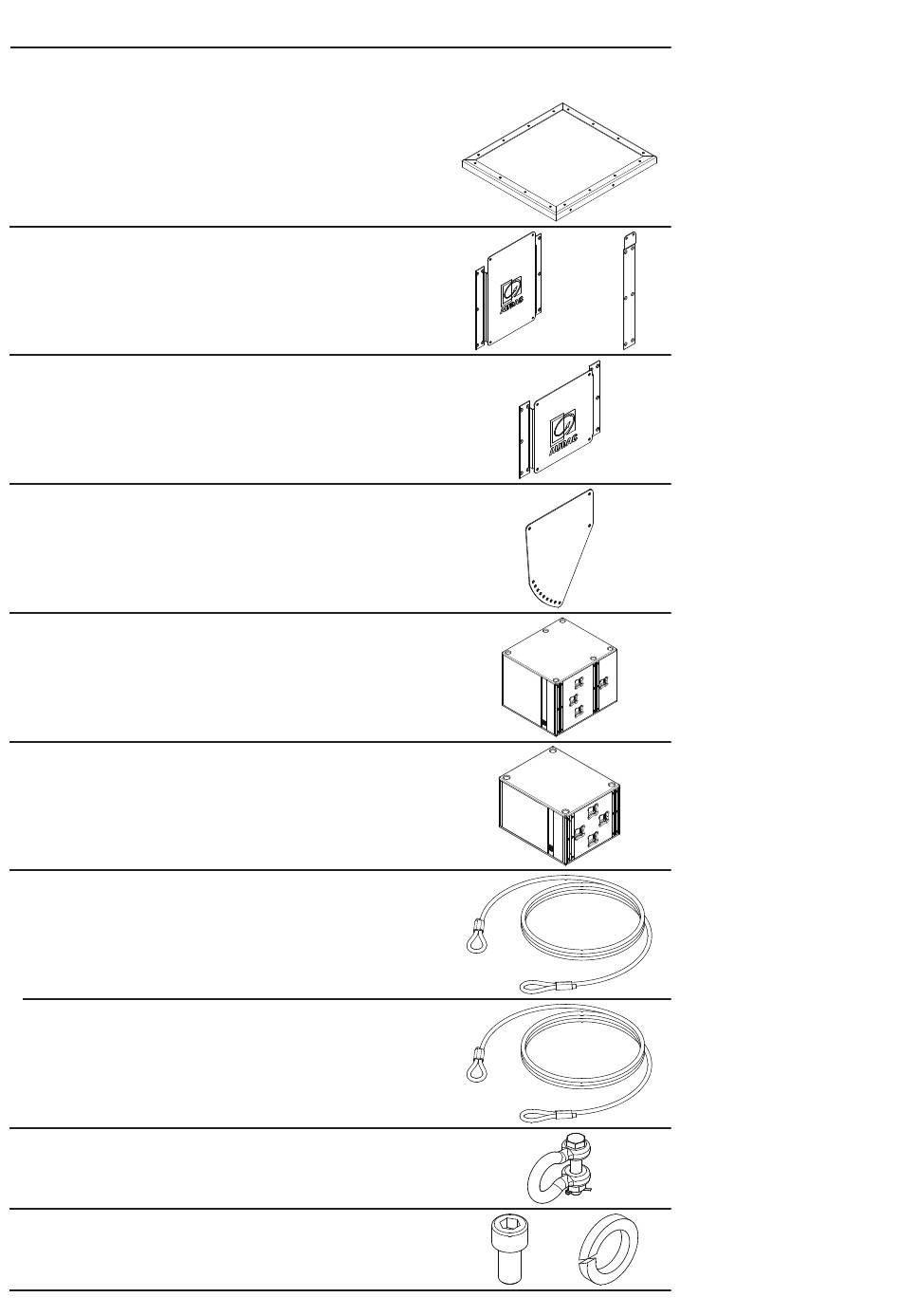

COMPONENTS
MBK310 FX Series fly frame
MBK318 Side + back board set for FX1.18
MBK315 Side board set for FX3.15
MBK320 Connection board set 20°-60°
FX1.18 Loudspeaker cabinet
(not included with MBK302S)
FX3.15 Loudspeaker cabinet
(not included with MBK302S)
Steel safety wire Ø 8 mm - 3250 mm
(not included with MBK302S, to be sourced locally because
of local legislation)
Steel safety wire Ø 8 mm - 3150 mm
(not included with MBK302S, to be sourced locally because
of local legislation)
Bow shackle 1.5ton
(not included with MBK302S, to be sourced locally because
of local legislation)
ISO 4762 - M10 x 20 mm + DIN 7980 - M10
1x
2x
1x
2x
2x
1x
1x
1x
1x
2x
+
14x
1
Advertisement
Table of Contents
Related Manuals for AUDAC MBK302S
Summary of Contents for AUDAC MBK302S
- Page 1 FX3.15 Loudspeaker cabinet (not included with MBK302S) Steel safety wire Ø 8 mm - 3250 mm (not included with MBK302S, to be sourced locally because of local legislation) Steel safety wire Ø 8 mm - 3150 mm (not included with MBK302S, to be sourced locally because of local legislation) Bow shackle 1.5ton...
- Page 2 MBK302S Installation Manual IMPORTANT SAFETY INSTRUCTIONS READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY Read these instructions and keep them. Never throw them away Heed all safety warnings Follow all instructions Personnel qualification Installation and set-up should only be carried out by qualified personnel that are familiar with rigging techniques and safety recommendations that are outlined in this manual.
- Page 3 MBK302S Installation Manual PROCEDURE Remove the U-profiles from FX1.18 and FX3.15 cabinets at the sides and back. Keep the bolts nearby because you will need them in step 2. Mount the FX1.18 side and back plates to the FX1.18 cabinet and the FX3.15 side plates to the FX3.15 cabinet.
- Page 4 MBK302S Installation Manual Mount the frame onto the ceiling. Slide the FX1.18 side plates around the frame and secure them with 6x ISO 4762 M10 x 20mm bolts and 6x DIN 7980 M10 spring lock washers.
- Page 5 MBK302S Installation Manual Attach the angle adjustment plates to the FX1.18 side plates using 4x ISO 4762 M10 x 20mm bolts and 4x DIN 7980 M10 spring lock washers. Slide the FX3.15 side plates between the angle adjustment plates and secure them in the right angle using 4x...
- Page 6 MBK302S Installation Manual Use certified steel cables and shackles to secure the speaker cabinets. Below you can see an example of how to do this. !BEWARE! Make sure the supporting structure is strong enough to bear the weight of speakers and bracket.
