Bitstream ERIS-1000 User Manual

Quick start manual, a detailed manual is on the enclosed CD or can be downloaded
from company's website www.bitstream.com.pl/en/
Fiber opical converter - Ethernet 10/100/1000Mbps
T
OP VIEW OF THE DEVICE
1.1
Img.1 shows the front panel display of the device, which contains all diods. The device is
equipped with seven elements indicating the status of the device and, with appropriate
configuration, the state of the electrical port of the remote device:
-
LINK/ACT -
LNK - signaling of the optical link;
SD -
TxF -
Flashing of the LINK / ACT and LNK LEDs signals the data transmission. Green flashing shows
the status of the correct connection.
1.2
The Ethernet port is equipped with a two-color signal diode:
green color -
orange color -
1.3
The front panel of the device has an RJ45 interface for the electrical interface
Ethernet, SFP optical interface slot, and power connector.
REV 1.01
ERIS-1000

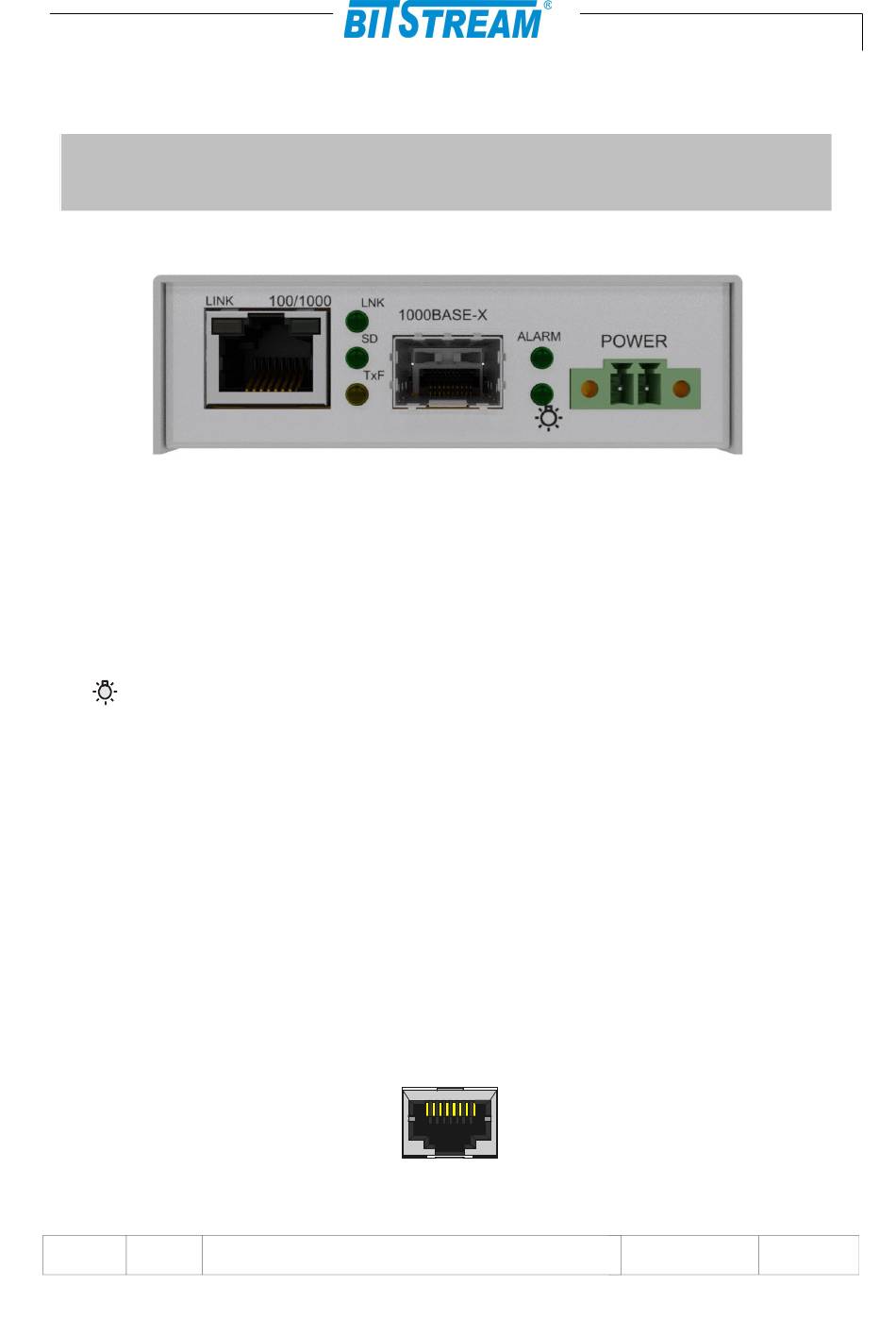

Img 1. Top panel of the device

Signalling LEDs

signaling the power supply;
signaling of the electrical port 10/100/1000Base-TX;
signaling the signal reception at the optical port;
Signaling of the optical transmitter damage.

Status of Ethernet electric interface signaling

Ethernet link for 1000Mbps
Ethernet link for 100Mbps
Connectors discribtion
Img 2. RJ-45 connector
User Manual ERIS-1000
1 8
