Bitstream RSMUX3-FO Quick Start Manual

Quick start manual, a detailed manual is on the enclosed CD or can be downloaded from
RSMUX3-FO
Fiber Optical Converter RS232/RS422/RS485
1 T
OP VIEW OF THE DEVICE
Marking:
1 - alarm screw connector
2 - Indicator LEDs
3 - fiber optic interface connectors
4 - termination
5 - double RS232/422/485 interface connector (MM version for 1x FO available in one RS1 interface
connector)
6 - power supply connector 230 V AC
1.1
Marking of double port indicator lights:
1 - FO LOS 1 - LED indicating no signal on optical interface 1
2 - FO LOS 1 - LED indicating the lack of signal on the optical interface no. 1
1
3 - power status signalling to the device.
2
3
Marking of signaling LEDs with a single port:
1
1 - ERR - LED indicating transmission error when the device operates with one
2
3
2 - FO LOS - LED indicating no signal on the optical interface
3 - power status signalling to the device.
Img.2. LED diode system with double or single optical port in RSMUX3-FO converter
REV. 1.04
company's website www.bitstream.com.pl/en/
5
1
6

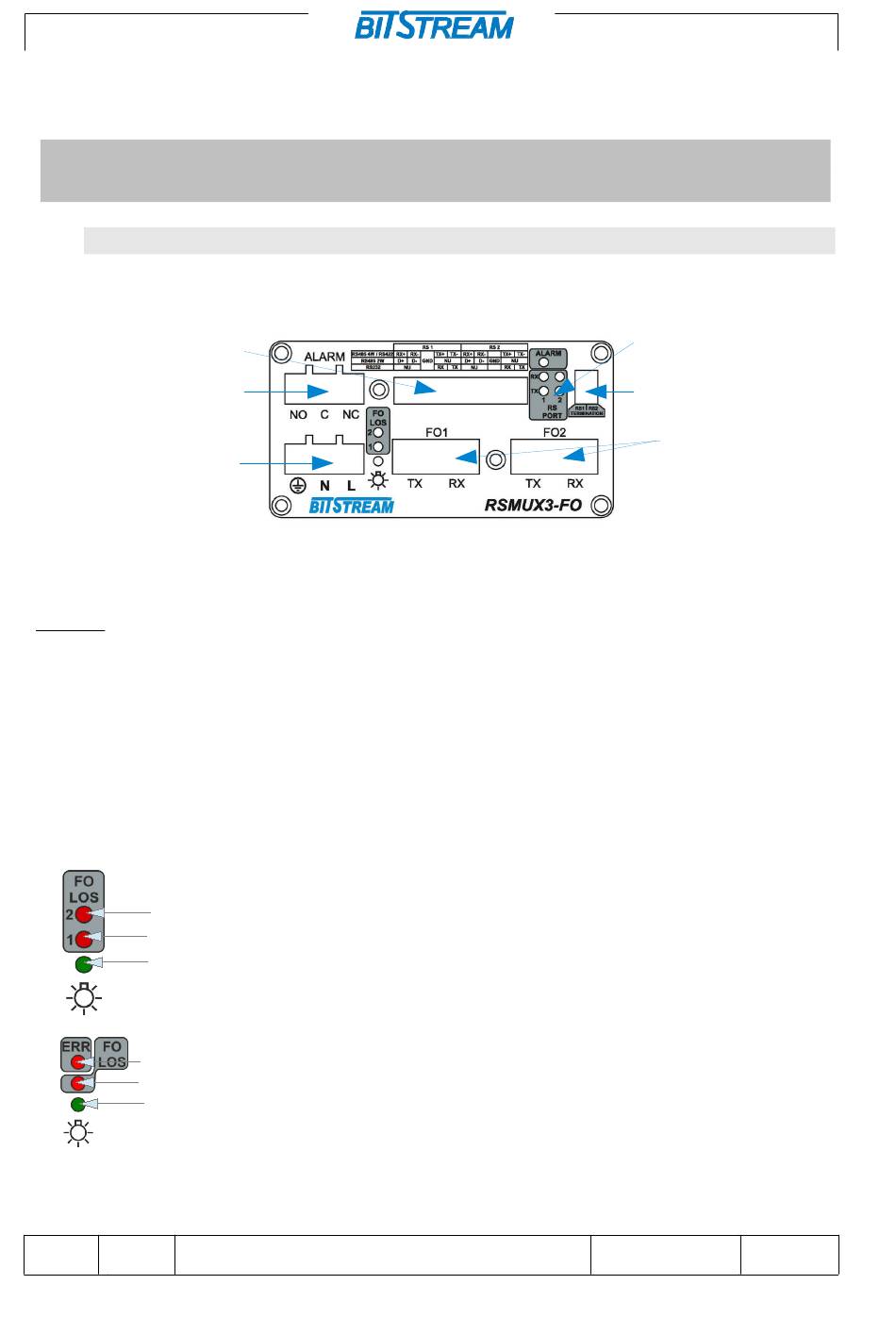

Img.1. Top panel of the device

Description of signalling

optical port
RSMUX3-FO SHORT USER MANUAL
2
4
3
2019.05.17 1/5
