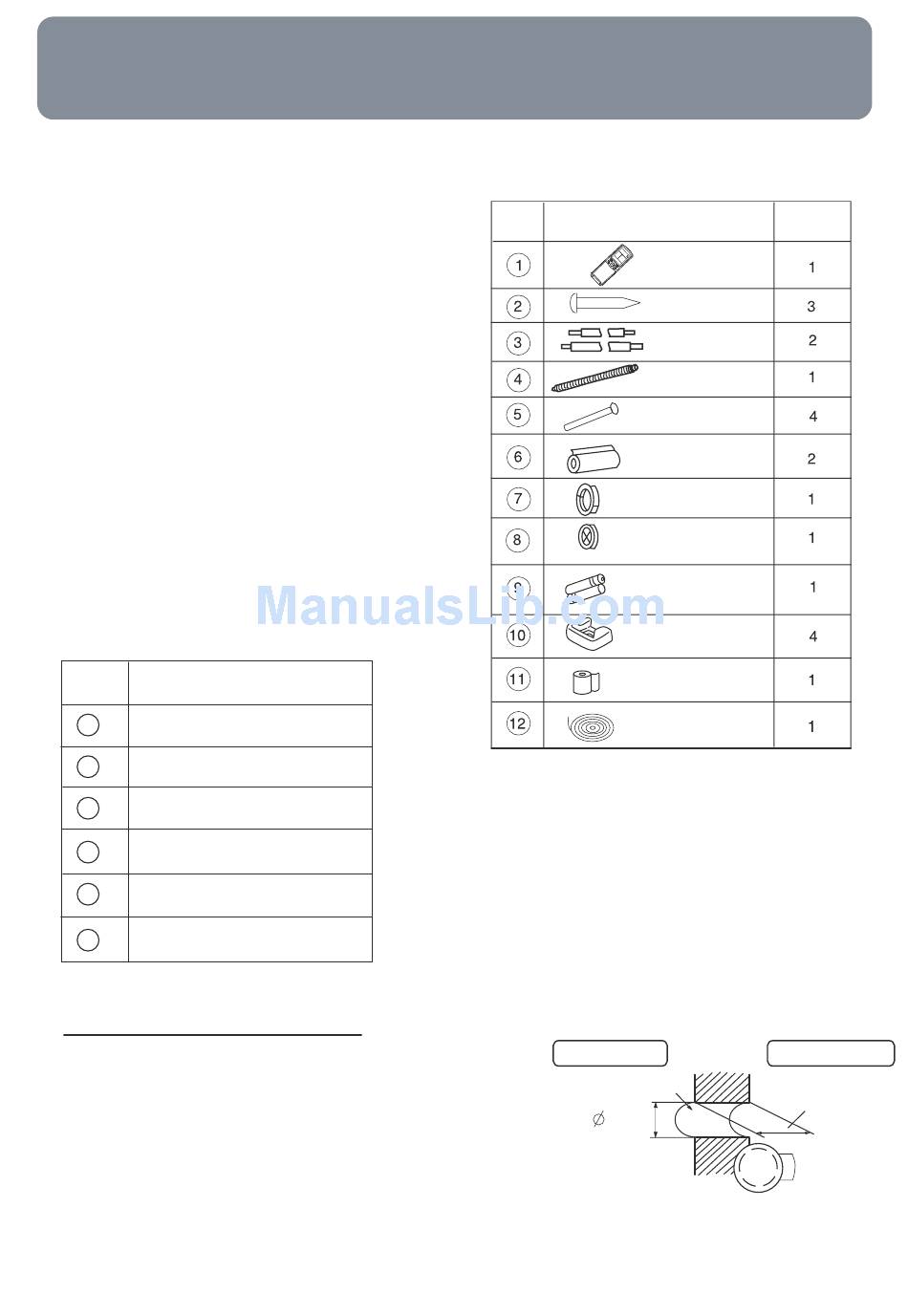

Installation Manual of Room Air Conditioner
Tool necessary
1. Screw driver
2. Hacksaw
3. 70mm dia.hole core drill
4. Spanner(dia. 17,27mm)
5. Spanner(14,17,19, 27mm)
6. Pipe cutter
7. Flaring tool
8. Knife
9. Nipper
10. Gas leakage detector
or soap water
11. Measuring tape
12. Reamer
13. Refrigerant oil

Standard accessories

Following parts shall be field
supplied
Mark
Part name
A
Adhensive tape
B
Pipe clip
C
Connecting hose
D
Insulation material
E
Putty
Drain hose
F
Fixing of the unit
1. Position of the wall hole
Wall hole should be decided according to installation
place and piping direction.(refer to installation drawings).
2. Making a wall hole
Drill a hole of 70X70mm dia. with a little slope towards
outside.
No.
Shape and description
Indoor side
Wall hole
70mm
23
Remote controller
Cement nail
Connecting pipe
Drain hose
Wire clip
Insulation pipe
Wall hole cover
Piping hole cover
Dry battery #7
Rubber pad
Non-adhensive tape
signal hose
Outdoor side
(Cross section of wall hole)
QTY
Thickness
of wall

Advertisement

loading

  Also See for Haier HPU-24H03/E1

  Summary of Contents for Haier HPU-24H03/E1

  • Page 1: Standard Accessories

    Installation Manual of Room Air Conditioner Tool necessary 1. Screw driver 2. Hacksaw 3. 70mm dia.hole core drill 4. Spanner(dia. 17,27mm) 5. Spanner(14,17,19, 27mm) 6. Pipe cutter 7. Flaring tool 8. Knife 9. Nipper 10. Gas leakage detector or soap water 11.
  • Page 2: Connecting Method

    Installation Manual of Room Air Conditioner 3. Piping connection Connecting method To bent a pipe, give the roundness as large as possible not to crash the pipe. When connecting pipe, hold the pipe center to center then screw nut on by hand, refer to Fig.
  • Page 3: Purging Method

    Installation Manual of Room Air Conditioner 1. Piping connection of the outdoor unit Connecting the connecting pipe and inlet and outlet liqued pipe according to the piping method. Purging Method: Push the air out of the indoor unit and piping as followes: (1) Remove the valve cap on 2-way valve in outdoor unit.
  • Page 4: Wiring Of Indoor Unit

    When connecting indoor and outdoor wire, check the number on indoor and outdoor terminal blocks. Terminals of same number and same color shall be connected by the same wire. Incorrect wiring may damage air conditioner's control or cause operation failure. φ9.52: Refrigerant charge(g) HPU-18C03/E1:3*2.5...
  • Page 5 Others 1. Power supply Air conditioner must use an exclusive line(over 30A) and there is not power plug with this type, the type of power supply wireHPU-18/24C03/E1 is 2.5mm When installation air conditoner in a wet place, try to use a circuit breaker against Current leakage.

This manual is also suitable for:

Hpu-18h03/e1Hpu-18c03/e1Hpu-24c03/e1
