DESCRIPTION

1. COVER SCREEN

2. BEARING PLATE

3. STATOR ASSEMBLY **

4. ROTOR BEARING

5. BRUSH SET

6. ROTOR ASSEMBLY

** NOTE: Item #3 MAIN STATOR ASSEMBLY is a one-piece unit. The Stator cannot be separated from the

Generator's outer housing.

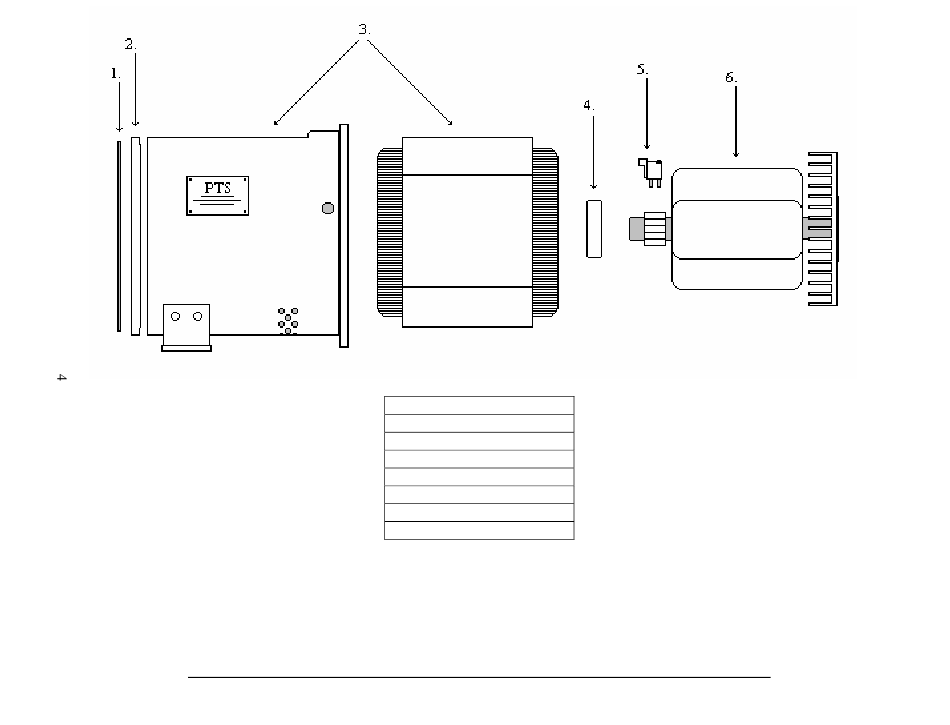

8 – 10 - 12KW "C" or "M" BRUSH TYPE GENERATOR ASSEMBLY
