Figure 8 shows the rear of the 13-slot Cisco 7513. In the Cisco 7513, up to two slots (6 and 7) are
reserved for the Route Switch Processor (RSP2), which contains the system processor and performs
packet switching functions. Slots 0 through 5, and 8 through 12 are for interface processors,
including the ACIP. (There are no restrictions on slot locations or sequence; you can install an ACIP
in any available interface processor slot.)

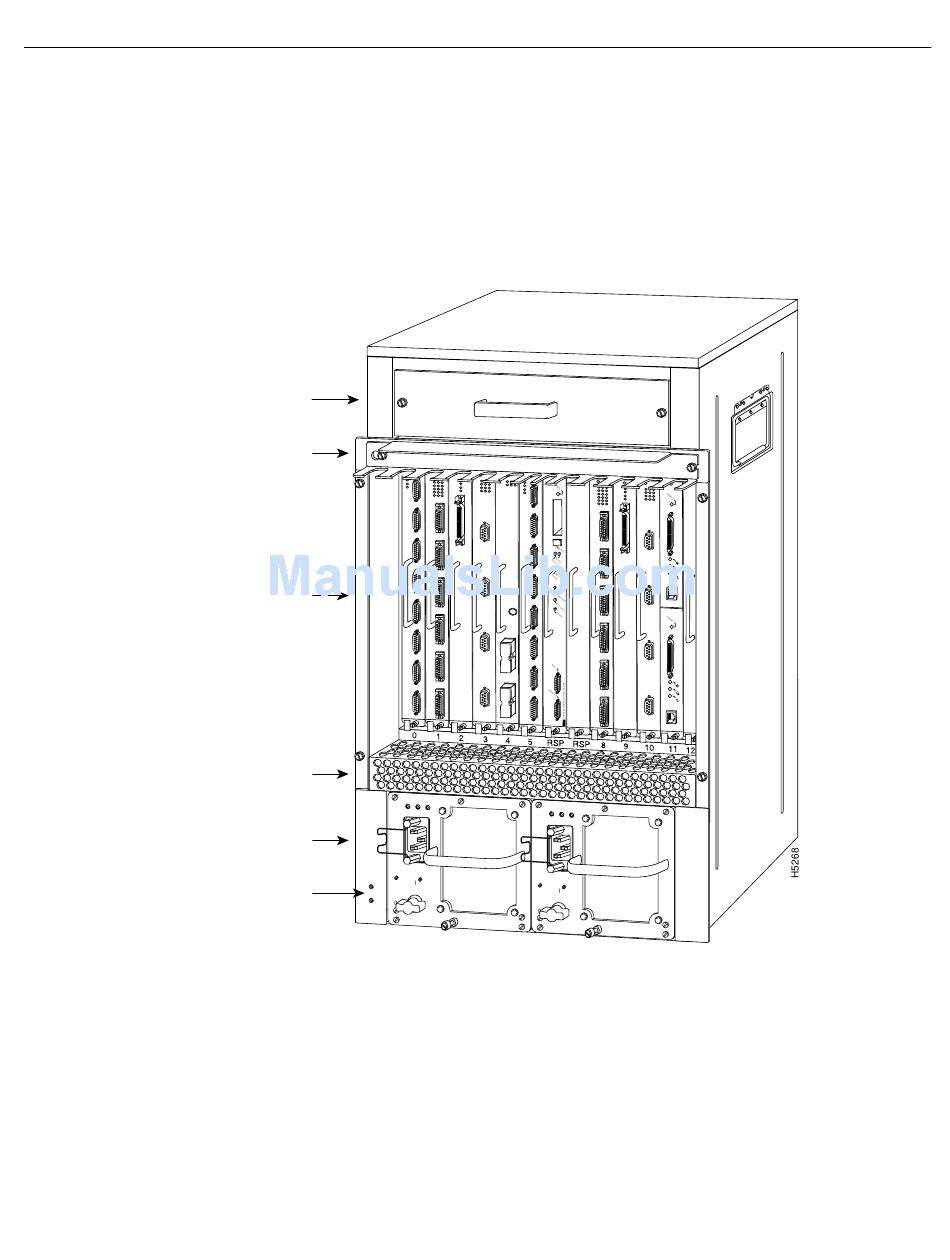

Figure 8 Cisco 7513, Interface Processor End
Blower module
Cable-management
bracket
Card cage and
processor modules
Air intake vent
Power supplies
Chassis grounding
receptacles
AC
FAN
OUTPUT
OK
OK
FAIL
POW ER
A
ATM Cable Interface Processor (ACIP) Installation and Configuration
ACIP Installation Prerequisites
AC FAN
OUTPUT
OK OK
FAIL
POW ER
B
