ACIP Installation Prerequisites
Figure 7 shows the rear of the 7-slot Cisco 7507 router. In the Cisco 7507, up to two slots (2 and 3)
are reserved for the Route Switch Processor (RSP2), which contains the system processor and
performs packet switching functions. Slots 0 and 1, and 4 through 6 are for interface processors,
including the ACIP. (There are no restrictions on slot locations or sequence; you can install an ACIP
in any available interface processor slot.)

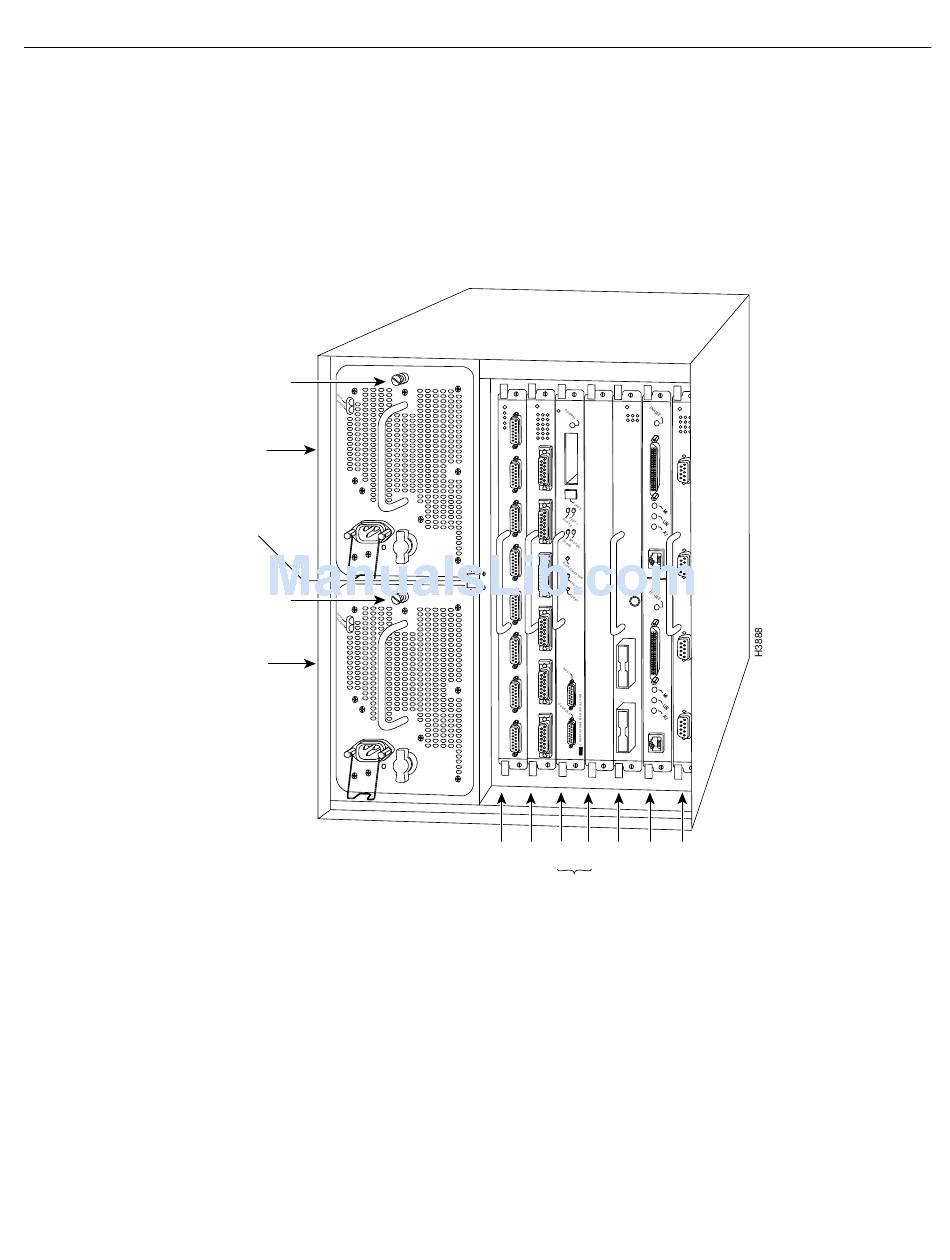

Figure 7
Captive
installation screw
Upper
power supply
Chassis
grounding
receptacles
Captive
installation screw
Lower
power supply
10 ATM Cable Interface Processor (ACIP) Installation and Configuration
Cisco 7507, Interface Processor End
I
I
Slot 0
2
1
3
4
5
RSP slots
6
