KTR-11 Face/Badge Reader
Installation Manual

Speaker shroud installation

To install the KTR-11 speaker shroud into an existing face/badge reader, do the following:
1. Unlock and open the door of the KTR-11 face/badge reader.
2. Remover the speaker side screw of the existing speaker bracket.
3. Install the new speaker shroud over the existing bracket as shown below.
4. Install the 6-32 x 1/2 in. screw provided and tighten.

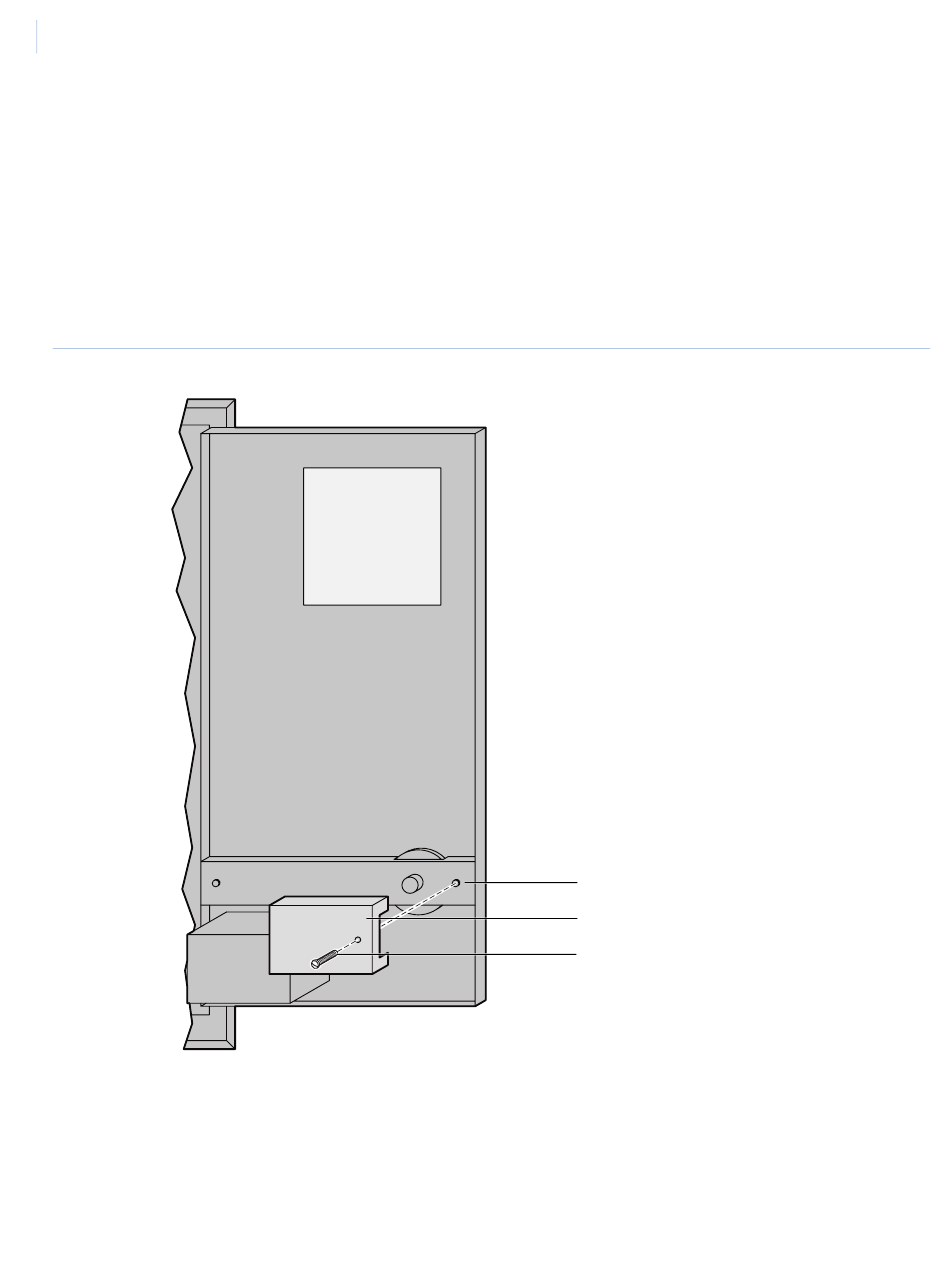

Figure 7. A1: Speaker shroud installation on the KTR-11
Remove screw
Place shroud over speaker bracket
Insert new screw
