GE ATS1197 Manual

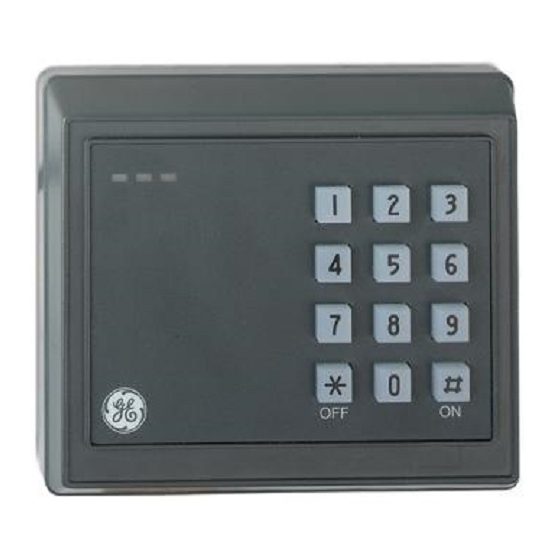

Smart card reader with keypad
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Table of Contents
1 2 3 4 5
Address
TERM
Smart Card Reader with Keypad
1 2 3 4
1 2 3 4
RAS 1
RAS 2
1 2 3 4
1 2 3 4
RAS 5
RAS 6
1 2 3 4
1 2 3 4
RAS 9
RAS 10
1 2 3 4
1 2 3 4
RAS 13
RAS 14
© 2005 GE Security
All rights reserved
RAS 2 = ↓, ↑, ↑, ↑
1 2 3 4
1 2 3 4
RAS 3
RAS 4
1 2 3 4
1 2 3 4
RAS 7
RAS 8
1 2 3 4
1 2 3 4
RAS 11
RAS 12
1 2 3 4
1 2 3 4
RAS 15
RAS 16
ATS1197
MAINST-ATS1197
03/2005

Advertisement

Table of Contents
loading

Related Manuals for GE ATS1197

Summary of Contents for GE ATS1197

  • Page 1 RAS 9 RAS 10 RAS 11 RAS 12 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 RAS 13 RAS 14 RAS 15 RAS 16 © 2005 GE Security MAINST-ATS1197 All rights reserved 03/2005...
  • Page 2 Note: When using a door control relay, always place a AMPER WITCH suppression diode (e.g. a 1N4001) across the relay coil The ATS1197 tamper switch is closed when the unit is fitted on the mounting plate. In operation, the LCD display will show “RAS LED I TATUS NDICATIONS FIGURE Tamper”...

  • Page 3: Programming Map

    Select the RAS. ROGRAMMING OPTIONS • Disable the option ’LCD Arming Station’. The ATS1197 provides for a menu through which a number of • Enable the option ‘3 LED RAS’. options can be set. To enter the programming menu for the ATS1197: •...

  • Page 4: Data Transmission

    Wiegand 26 bit or every minute to indicate that the RAS is connected and operating Aritech Wiegand ASC. normally. If the ATS1197 tamper is active, the data byte will not be sent (disabled by default). Unsecured When an unsecured card is badged on a reader...
  • Page 5 Obciążalność wyjścia OC 14Vdc Max @ 50mA Max liitäntä) (zacisk OUT) Mitat kannen kanssa Dimensioner med låge (B x H Wymiary z pokrywą klawiatury 140mm (5.5”) x 121mm (4.8”) x (leveys x korkeus x syvyys) x D) (Sz x W x G) 22mm (0.9”)

  • Page 8: Manufacturer's Declaration Of Conformity

    GE Security MANUFACTURERS DECLARATION OF CONFORMITY RODUCT IDENTIFICATION Model/type : ATS1197 BOM revision level Category (description) : Non LCD, Remote Arming Station, with Card Reader and keypad Brand : GE Security Manufacturer: GE Security 646 Whitehorse Road Mitcham, 3132 Australia EU Representative: GE Interlogix B.V.
