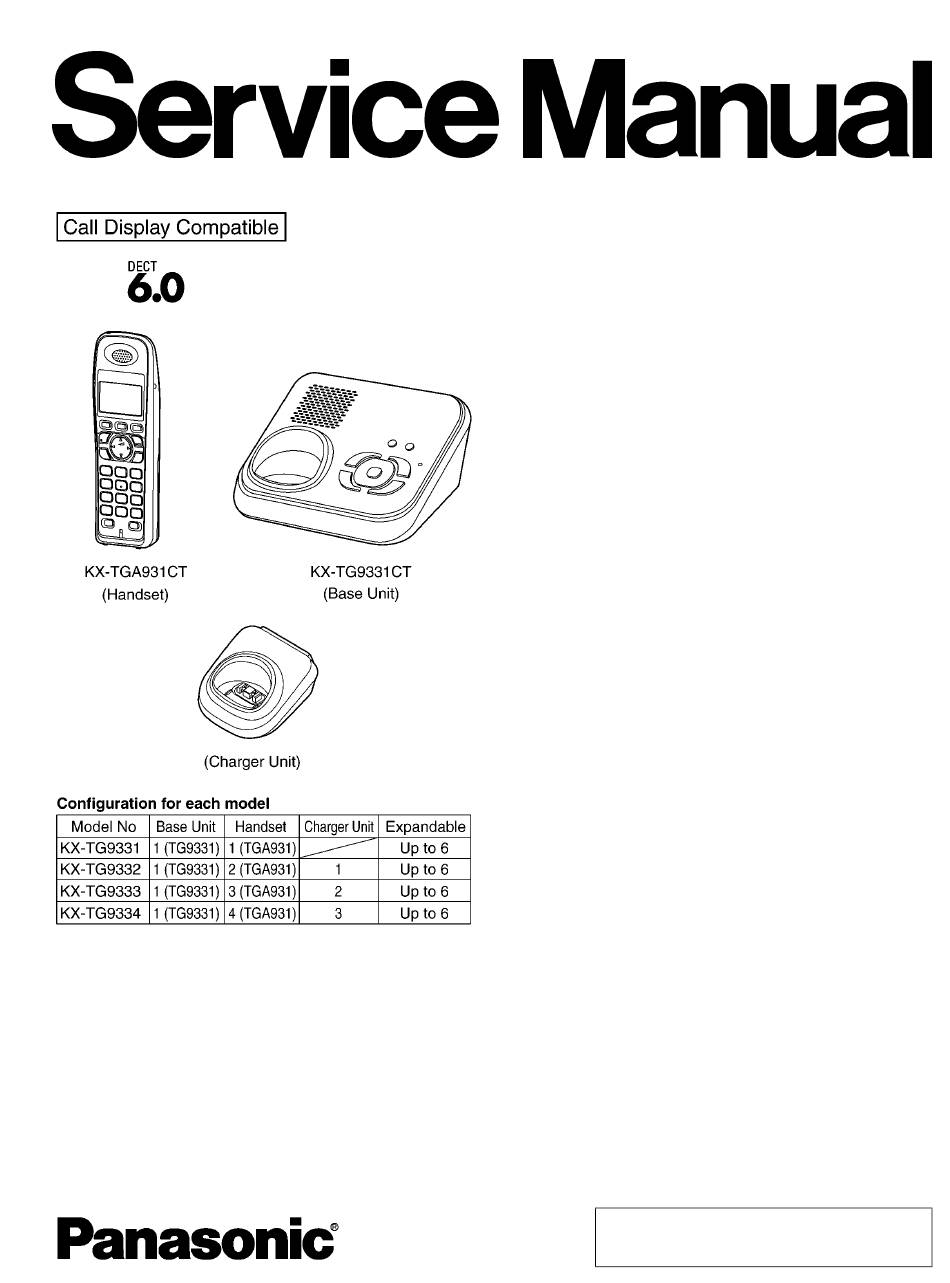

- Page 1 ORDER NO. KM40802519CE Telephone Equipment KX-TG9331CT Model No. KX-TG9332CT KX-TG9333CT KX-TG9334CT KX-TGA931CT Expandable Digital Cordless Answering System Titanium Black Version (for Canada) © 2008 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.
- Page 2 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT...
-
Page 3: Table Of Contents
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT TABLE OF CONTENTS PAGE 1 Safety Precautions----------------------------------------------- 4 1.1. For Service Technicians --------------------------------- 4 2 Warning -------------------------------------------------------------- 4 2.1. Battery Caution--------------------------------------------- 4 3 Specifications ----------------------------------------------------- 5 4 Location of Controls and Components ------------------- 6 4.1. Controls ------------------------------------------------------ 6 4.2. Display ------------------------------------------------------- 6 5 Installation Instructions ---------------------------------------- 7 5.1. -
Page 4: Safety Precautions
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 1 Safety Precautions 1.1. For Service Technicians • Repair service shall be provided in accordance with repair technology information such as service manual so as to pre- vent fires, injury or electric shock, which can be caused by improper repair work. -
Page 5: Specifications
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 3 Specifications Note: • Design and specifications are subject to change without notice. Note for Service: • Optional headset: RP-TCA86, RP-TCA92, RP-TCA94, RP-TCA95... -
Page 6: Location Of Controls And Components
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 4 Location of Controls and Components 4.1. Controls 4.1.2. Handset 4.1.1. Base Unit 4.2. Display... -
Page 7: Installation Instructions
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 5 Installation Instructions 5.1. Connections 5.2. Battery 5.2.1. Battery Installation and Replacement... - Page 8 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 5.2.2. Battery Charge 5.2.4. Panasonic Ni-MH Battery Perfor- mance (supplied batteries) Note for service: The battery strength may not be indicated correctly if the battery is disconnected and connected again, even after it is fully charged. In that case, by recharging the battery as mentioned above, you will get a correct indication of the battery strength.
-
Page 9: Operating Instructions
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 6 Operating Instructions 6.1. Programmable Settings 6.1.1. Programming by Scrolling through the Display Menus... - Page 10 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 6.1.2. Programming using the Direct Commands...
- Page 11 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT...
-
Page 12: Error Messages
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 6.2. Error Messages... -
Page 13: Troubleshooting
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 6.3. Troubleshooting... - Page 14 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT...
- Page 15 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT...
- Page 16 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT...
-
Page 17: Schematic Diagram
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 7 Schematic Diagram 7.1. For Schematic Diagram 7.1.1. Base Unit (Schematic Diagram (Base Unit_Main)) 7.1.1.1. Acoustic Testing Mode Notes: 1. DC voltage measurements are taken with voltmeter from the negative voltage line. 2. The schematic diagrams may be modified at any time with the development of new technology. -
Page 18: Schematic Diagram (Base Unit_Main)
KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 7.2. Schematic Diagram (Base Unit_Main) RF interface 3.2V Q382 V_PA V_PA (VPA) V_RF V_RF 3.3V 4.0V BCLK C521 0.1u BCLK R521 SYN_OUT SYN_OUT SYN_EN SYN_EN SYN_CLK SYN_CLK For TH12 series SYN_DATA SYN_DATA SLOT_CTRL SLOT_CTRL *WBX03 RADIO_EN RADIO_EN L473 RX_DATA... - Page 19 KX-TG9331CT/KX-TG9332CT/KX-TG9333CT/KX-TG9334CT/KX-TGA931CT 4.0V 6.5~12V 4.0V CONVERTOR 3.3V IC331 L300 22uH VOUT REFERENCE VDET 1XX : TEL LINE 3XX : POWER, CHARGE *RESET 4XX : RESET, MIC, SP 5XX : DSP, RF I/F Charge detection Q300 6XX : FLASH, KEY, LCD 7XX : RF(2.4G) *Q361 8XX : RF(5.8G)
-
Page 20: Schematic Diagram (Base Unit_Rf Part)
