Battery Instructions:

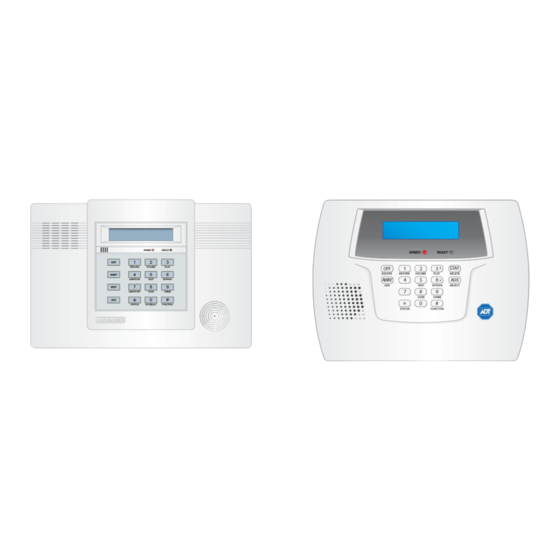

Ademco Lynx & ADT QuickConnect
Compatible with:
Ademco Lynx
Instructions:
W H A T Y O U ' L L N E E D :
•
A registered
MyADT Account
•
1 small Phillips head screwdriver
•
7.2V, 3700mAh battery
You can purchase a 7.2 Volt 3700 mAh battery from MyADT or from retailers such as Walmart,
Amazon, Batteries Plus, Home Depot, and Lowe's. We also recommend checking with your local
retailers for availability. Here are the specifications of the 7.2 Volt 3700 mAh battery:
•
Voltage: 7.2 V
•
Capacity: 3700 mAh
•
Terminals: Connector
•
Chemistry: NiMH
•
Length: 4"
ADT QuickConnect
Advertisement
Table of Contents
Related Manuals for ADT QuickConnect
Summary of Contents for ADT QuickConnect
- Page 1 Battery Instructions: Ademco Lynx & ADT QuickConnect Compatible with: Ademco Lynx ADT QuickConnect Instructions: W H A T Y O U ’ L L N E E D : • A registered MyADT Account • 1 small Phillips head screwdriver •...
- Page 2 Battery Instructions: Ademco Lynx & ADT QuickConnect • Width: 2.7” • Height: 0.07” • Weight: 0.30 lbs. N O T E : The battery pack is located inside the keypad. The battery pack has black and red wires coming out of it with a modular connector at the end.
- Page 3 Step 4: Quickly inspect the old battery. If the battery looks abnormal (i.e. has a swollen or split case, liquid leaking from the case, or corroded terminals) close the keypad and call (800) ADT-ASAP to schedule a service call.
- Page 4 Battery Instructions: Ademco Lynx & ADT QuickConnect Step 5: Remove the small screw from the plastic battery bracket. Be sure to put the screw in a place where you won’t lose it since you’ll need it later. Step 6: Gently remove the wires from their retaining clips, and then disconnect the battery wires by pulling on...
- Page 5 Battery Instructions: Ademco Lynx & ADT QuickConnect Then tip the top of the battery up to remove it from the compartment. Step 7: Remove the new battery from its packaging. C A U T I O N : Do not remove the green plastic cover from around the new battery pack. This covering is necessary for a proper connection and may cause serious injury or damage if removed or damaged.
- Page 6 Battery Instructions: Ademco Lynx & ADT QuickConnect Step 11: Check your alarm keypad to ensure it no longer displays the “BAT” or “SYSTEM LO BATTERY” message. If it still shows a low battery message, try entering your code and pressing the OFF button.
