BGS technic 1134 Quick Start Manual

SPECIFICATIONS

Maximum load: 1500 kg (15000 N)
Minimum jaw distance: 65 mm
Maximum jaw distance: 354 mm
Spring capacity: Ø 80 - 195 mm
Length body: 475 mm
Weight body: 4.7 kg
Weight incl. jaws: 10.2 kg

INCLUDES

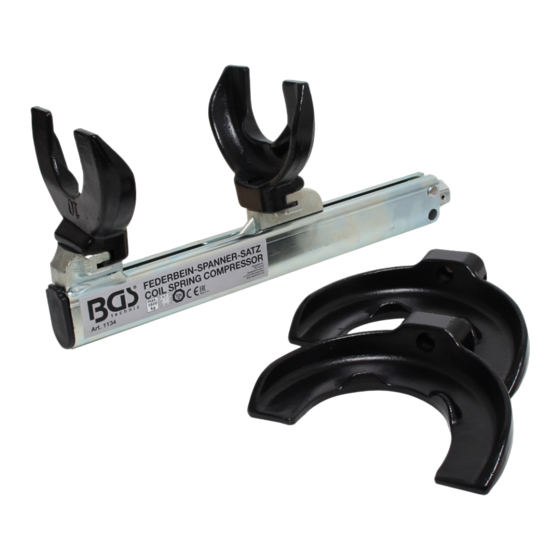

Body
Jaw pair Ø 80 - 145 mm
(Art. 1134-10)
Jaw pair Ø 145 - 195 mm
(Art. 1134-20)

USE AS INTENDED

The coil spring compressor is exclusively for compressing and expanding of McPherson strut springs
whereby suitable jaws must be used. Any other or further use is considered not as intended.

SAFETY ADVISE

Working safely with this tool is possible only when the operating and safety information are read
completely and the instructions contained therein are strictly followed. The manual shall be kept in a
known location and be easily accessible for operators and maintenance staff.
Before each use, check the unit for full functional capability. If the functional capability is not
•
ensured or if damage is detected, the unit should not be used.
When compressing the spring, neither the spring windings nor the jaws should come in contact
•
with each other, Fig.B.
The centre line of the spring must always be parallel to the compressing device, especially for
•
conical springs.
Use only suitable jaws for the springs. The spring must rest se curely within the outer rib and the
•
safety ridges. Take care that sliding of the spring out of the jaws plates is not possible.
The bolts of the jaws must always be firmly tightened.
•
When using impact wrench do not exceed 180 Nm torque limit.
•
For repair, use only original parts.
•
Do not make any construction changes to the unit. Do not replace safety pin by a stronger safety
•
pin.
Do not leave unattended when in use.
•
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
Coil Spring Compressor
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
Art. 1134
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
