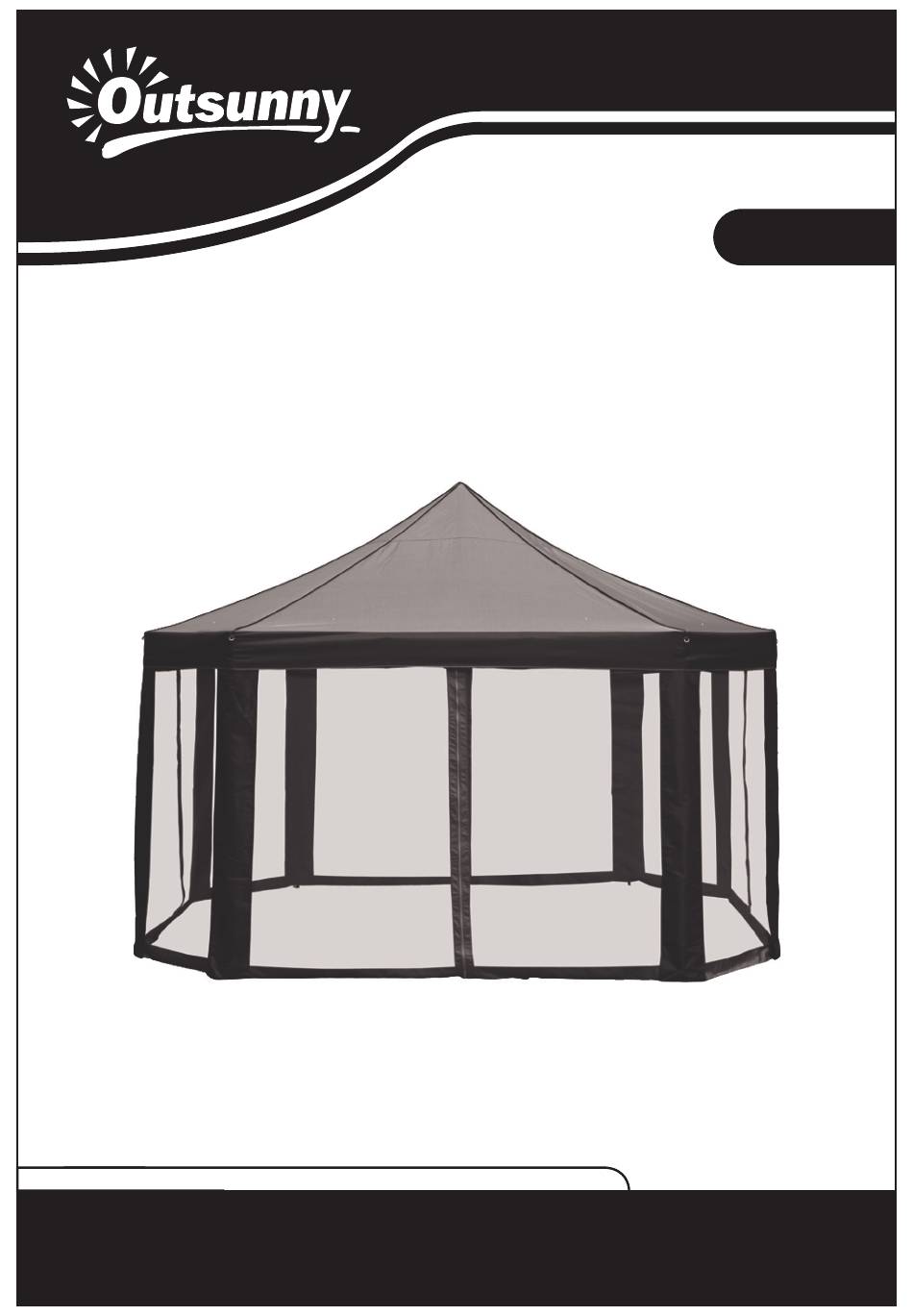

- Page 1 INbrb015_US_CA_FR INbrb015_GL_84C-297 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
- Page 3 EN_Open the sun shelter in eight direc ons un l par ally extended. FR_Ouvrez l'abri solaire dans huit direc ons jusqu'à ce qu'il soit par ellement déployé.
- Page 4 EN_Put on the shelter (B) so each leg is covered with fabric. FR_Mettez le grand abri soleil B, chaque jambe couvre avec un tissu de jambe. EN_Push the red bu on when you close the sun shelter. FR_Appuyez sur le bouton rouge lorsque vous fermez l'abri solaire.
- Page 5 EN_1)Step on the plastic base of the leg. Adjust the canopy height by lifting the leg until it locks into place (Fig. 1). Repeat for the remaining seven legs. 2)Hook the fabric of the legs to the bottom hole on the inside pole (Fig. 2). FR_1) Marchez sur la base en plastique de la jambe.
- Page 6 EN_1)Insert one steel stake (E) into the hole on the leg’s plastic base (Fig. 1). Secure the canopy to the ground, do the same for the other seven bases. 2)Tie the rope (D) to the plastic ring on the corner of the canopy fabric (Fig. 2). Tie the other end to the ground stake (Fig.
- Page 7 STOWED AWAY EN_Remove the mosquito netting if EN_Pull up all stakes from the attached. ground. FR_Retirez la moustiquaire si elle est FR_Retirez tous les piquets du attachée. sol. EN_Press the push pin on each EN_Push the push button on leg and retract the legs to their each slider to unlock the frame.
