Summary of Contents for Drive DeVilbiss Healthcare Elite

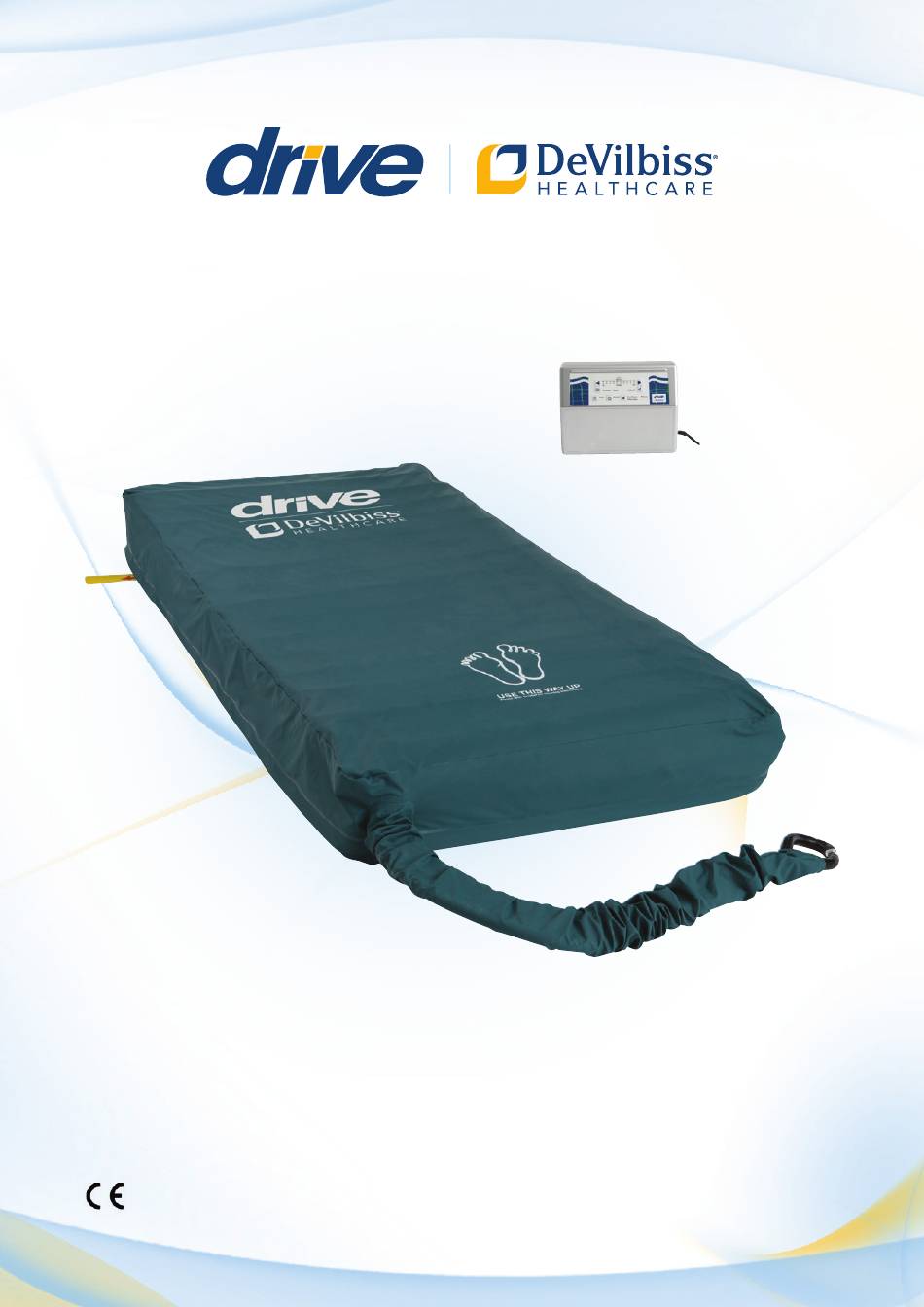

  • Page 1 Elite with Digital Pump User Manual...

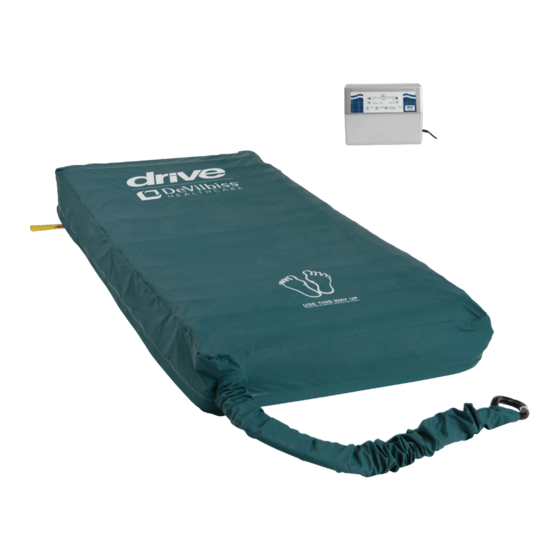

  • Page 2 With a fully encased layer of visco- elastic foam beneath the cells for added support, the Elite mattress combines a comfortable support surface and alternating therapy, suitable for patients at Very High Risk of developing pressure ulcers.
  • Page 3: Table Of Contents

    Content Fire Warning Safeguards Intended Use Contradictions Installation Pump Functions Mattress Functions Storage Damage Prevention Cleaning Maintenance Technical Description Troubleshooting Warranty Elite Mattress with PUMP1000...
  • Page 4: Fire Warning

    Follow all manufacturers’ instructions and warning. It is advised that a full fire risk assessment is carried out prior to using this equipment In case of fire, exit and call the emergency services. Please refer to MDA/2013/093 for further guidance Elite Mattress with PUMP1000...
  • Page 5: Safeguards

    SYMBOLS Class II electrical device “BF” symbol indicates this product is according to the degree or protecting against electric shock for type BF equipment. Attention, instructions should be read Authorised representative in the European community Elite Mattress with PUMP1000...
  • Page 6: Intended Use

    Passive Radio Frequency Identification (RFID) tags maybe in use throughout the system Keep dry Intended Use The Elite Replacement System is intended to reduce the incidence of pressure ulcers while optimising patient comfort. It may also be appropriate for the following: • Individual home care setting and long-term care facilities •...
  • Page 7: Installation

    Installation Unpackaging When unpacking the Elite System, check for any damage which may have occurred during transit. If found to be damaged remove the system from use and contact Drive DeVilbiss Healthcare Ltd. Setting up 1. Remove all existing mattress surfaces from the bed frame 2.
  • Page 8: Pump Functions

    When a power cut is detected, the pump will alarm and the LED will illuminate Service Light This light will illuminate when the pump is due an annual service. The pump will require recalibrating to deactivate this LED Elite Mattress with PUMP1000...
  • Page 9: Mattress Functions

    Do not place sharp objects such as hypodermic needles, scalpels, etc., on the mattress • Avoid wearing protruding jewellery i.e. rings with stones • Take extra care when using medical equipment such as monitors, drip stands, side rails, transfer boards, etc. Elite Mattress with PUMP1000...
  • Page 10: Cleaning

    Cleaning The following guidelines are suggested by Drive DeVilbiss Healthcare as being suitable infection control procedures. Further information is available upon request. Pump Unit General cleaning may be affected by using a cloth dampened with a mild detergent and water solution.
  • Page 11 7440-22-4), glass, oxides, chemicals (CAS number 65997-17-3). The product does not contain any nanomaterials. The active ingredient is fully encapsulated within the polymer coating so there are no special handling requirements. This product is latex free. Elite Mattress with PUMP1000...
  • Page 12: Maintenance

    Mattresses should be checked regularly to ensure they remain ‘fit for purpose’, clinically effective and pose no risk of infection to either the patient or the carer. Drive DeVilbiss Healthcare Ltd. recommend that a thorough inspection of both the interior (foam base and cells) and exterior (cover) of the mattress is carried out on a weekly basis or, each time a new patient is placed on the mattress.
  • Page 13: Technical Description

    • The addition of components or accessories may affect the EMI susceptibility of the device. Do not fit accessories other than Drive DeVilbiss Healthcare authorised accessories. Elite Mattress with PUMP1000...
  • Page 14: Troubleshooting

    This is normal in alternating mode. Air outlets take turns to from some of the air produce air during their cycle time • outlets of the tube If fault still continues, a Drive DeVilbiss Healthcare approved connectors engineer will be required to repair the fault • Pump is noisy...
  • Page 15: Warranty

    Warranty Your Drive DeVilbiss Healthcare product is warranted to be free of defects in materials and workmanship for 5 years on mattresses and 2 year on pumps from date of purchase. This device was built to exacting standards and carefully inspected prior to shipment. This warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the customer.
  • Page 16 Our goal is to develop a range that will provide individuals with a chance to enjoy everyday life. Leaflet code: 6002990011 Dealer Stamp Drive DeVilbiss Healthcare Ltd, Heathfield Lane, Birkenshaw, West Yorkshire, BD11 2HW Tel: 0845 0600 333 Fax: 0845 0600 334 Email: info@drivedevilbiss.co.uk...
