Summary of Contents for Drive DeVilbiss Healthcare Eclipse II

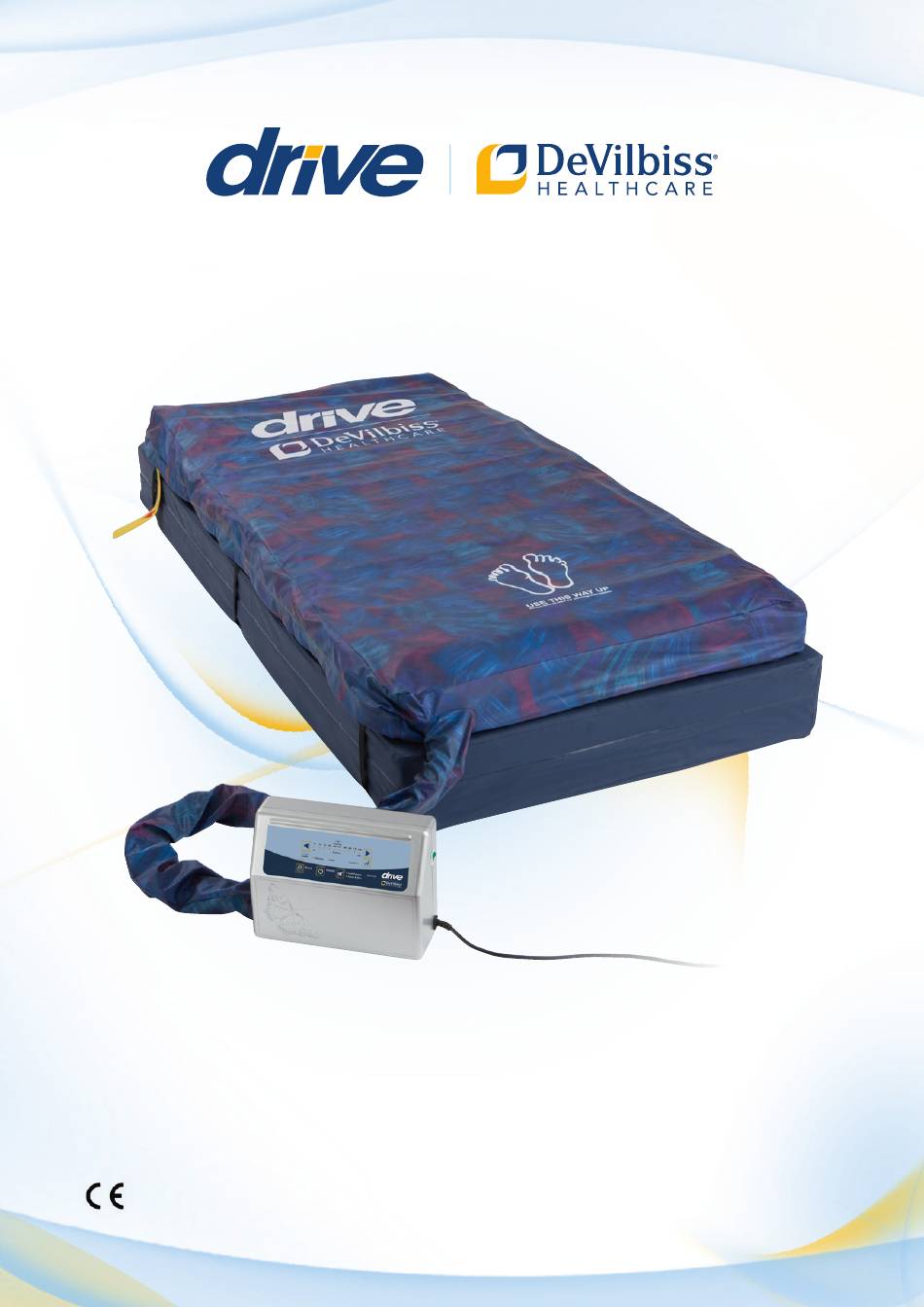

- Page 1 Eclipse II with Digital Pump User Manual...

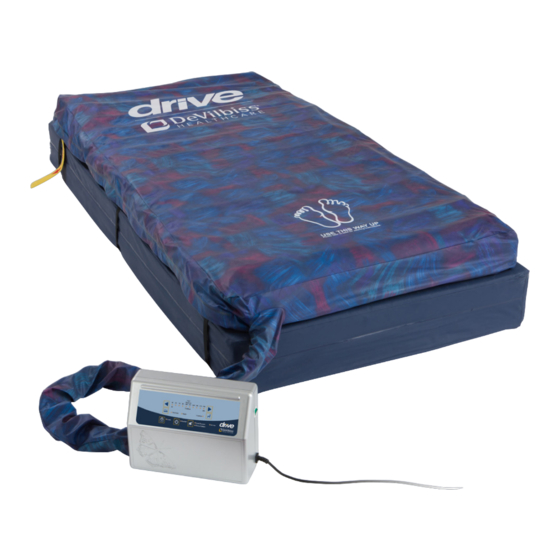

- Page 2 The Eclipse The Eclipse Overlay Mattress System provides a cost effective solution for both the prevention and treatment of pressure ulcers in any healthcare environment. The Eclipse mattress combines a comfortable support surface and alternating therapy, suitable for patients at Very High Risk of developing pressure ulcers.
-
Page 3: Table Of Contents
Content Fire Warning Safeguards Intended Use Contradictions Installation Pump Functions Mattress Functions Storage Damage Prevention Cleaning Maintenance Technical Description Troubleshooting Warranty Eclipse Mattress with Digital Pump... -
Page 4: Fire Warning
Fire Warning In order to reduce the risk of fire: DO NOT SMOKE - Smoking will contaminate the product and is NOT permitted around or on the mattress system. This is a common cause of fatal fires. This system uses room air for circulation through the mattress. -
Page 5: Safeguards
IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE USE DANGER - To reduce risk of electrocution: 1. Always unplug this product immediately after using. 2. Do not use while bathing. 3. Do not place or store product where it can fall or be pulled into a tub or sink. 4. -
Page 6: Intended Use
Manufacturer Disposal of Electrical & Electronic Equipment (WEEE) Product conforms to all relevant standards (See Declaration of Conformity) No smoking on or near the mattress Passive Radio Frequency Identification (RFID) tags maybe in use throughout the system Keep dry Intended Use The Eclipse Overlay System is intended to reduce the incidence of pressure ulcers while optimising patient comfort. -
Page 7: Installation
Unpackaging When unpacking the Eclipse System, check for any damage which may have occurred during transit. If found to be damaged remove the system from use and contact Drive DeVilbiss Healthcare Ltd. Setting up 1. The Eclipse overlay system should be placed over an existing static mattress surface... -
Page 8: Pump Functions
Pump Functions On/Off Standby Main power rocker switch can be located at the side of the pump. The standby button is located on the front panel Lock Out After 5 minutes of inactivity, the pump will lock out its functions. To unlock, press and hold the lock out key for 3 seconds Mute Press the mute button to silence the alarms... -
Page 9: Mattress Functions
Mattress Functions High frequency welded cover which reduces the risk of ingress and aids the decontamination process A highly resilient polyurethane covers which can be cleaned down with 1,000ppm sodium hypochlorite CPR tag, which when pulled will rapidly deflate the mattress Securing straps to keep the mattress in situ during alternation Connectors can be joined together to allow for easy transportation Storage... -
Page 10: Cleaning
Cleaning The following guidelines are suggested by Drive DeVilbiss Healthcare as being suitable infection control procedures. Further information is available upon request. Pump Unit General cleaning may be affected by using a cloth dampened with a mild detergent and water solution. - Page 11 Laundering Before laundering the mattress, covers should be completely removed. Where required, mattress covers can be laundered as follows: o Pre wash: 95°C + 15 minutes o Main wash: 95°C + 15 minutes This should be followed by a cold rinse and extraction. Drying Mattress inners and tube sets should be wiped with a clean and dry cloth before reinserting.
-
Page 12: Maintenance
Mattresses should be checked regularly to ensure they remain ‘fit for purpose’, clinically effective and pose no risk of infection to either the patient or the carer. Drive DeVilbiss Healthcare Ltd. recommend that a thorough inspection of both the interior and exterior of the mattress is carried out on a weekly basis or, each time a new patient is placed on the mattress. -
Page 13: Technical Description
The addition of components or accessories may affect the EMI susceptibility of the device. Do not fit accessories other than Drive DeVilbiss Healthcare authorised accessories. Eclipse Mattress with Digital Pump... -
Page 14: Troubleshooting
This is normal in alternating mode. Air outlets take turns to from some of the air produce air during their cycle time outlets of the tube If fault still continues, a Drive DeVilbiss Healthcare approved connectors engineer will be required to repair the fault Pump is noisy... -
Page 15: Warranty
Warranty Your Drive DeVilbiss Healthcare product is warranted to be free of defects in materials and workmanship for 5 years on mattresses and 2 year on pumps from date of purchase. This device was built to exacting standards and carefully inspected prior to shipment. This warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the customer. - Page 16 Our goal is to develop a range that will provide individuals with a chance to enjoy everyday life. Leaflet code: 6002990039 Dealer Stamp Drive DeVilbiss Healthcare Ltd, Heathfield Lane, Birkenshaw, West Yorkshire, BD11 2HW Tel: 0845 0600 333 Fax: 0845 0600 334 Email: info@drivedevilbiss.co.uk...
