1. Introduction

The Insertable Flat Surface pH Electrode system is designed to be inserted through a 1"
full port Ball valve (user supplied). The assembly may be mounted in any position (even
with the electrode's surface facing upwards).

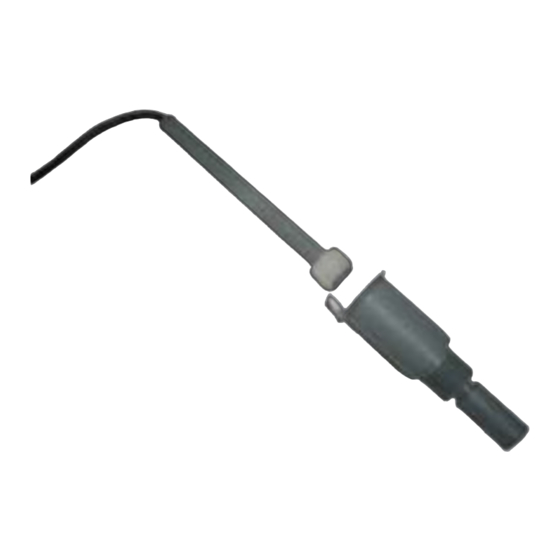

As supplied, the system consists of the PH655 CD Combination pH Electrode (or the
ORP655 CD Combination REDOX Electrode) and the WT675 Insertion Assembly.

2. Installation

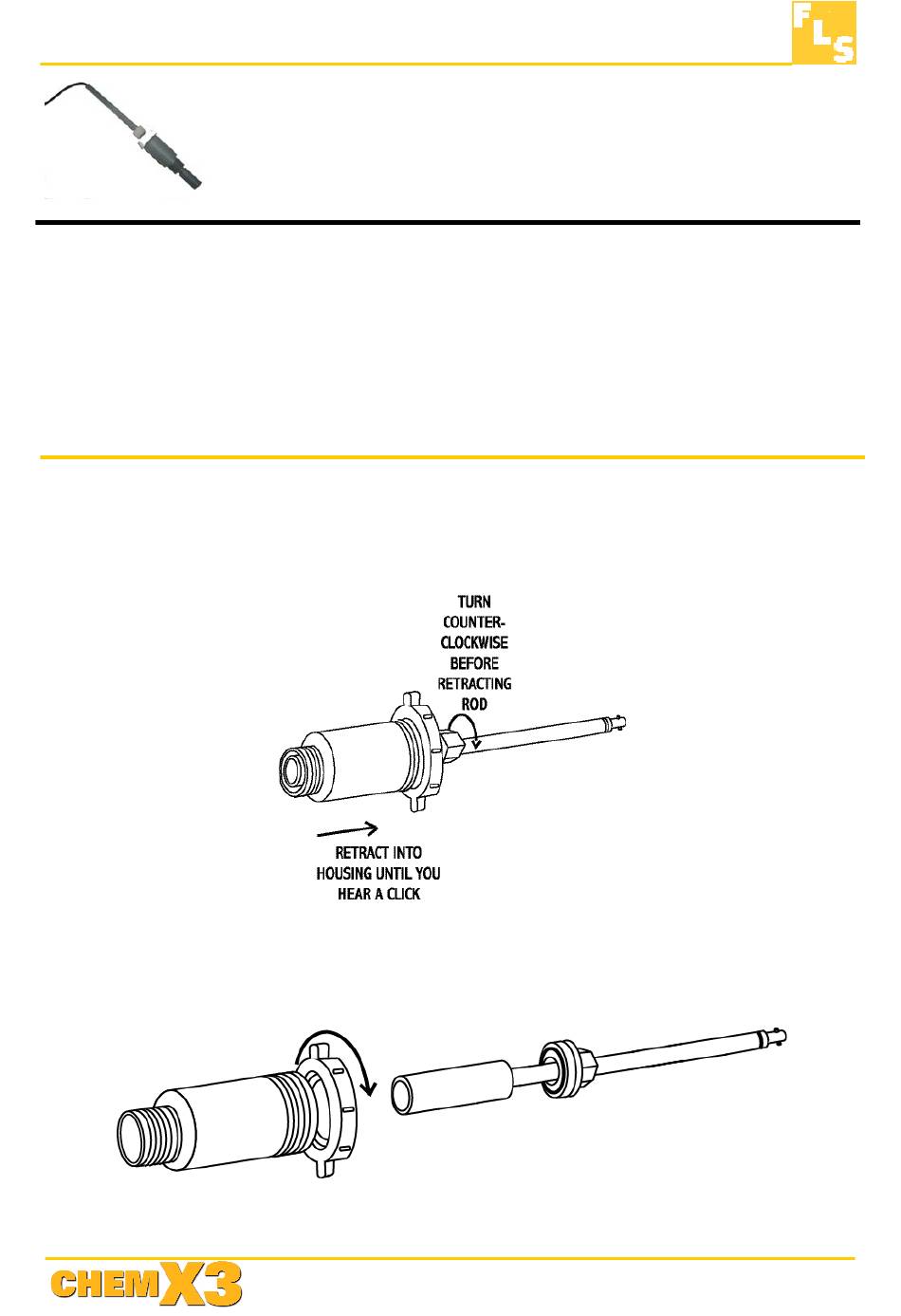

1. Unscrew the hex nut from the adapter body and retract rod into body until you hear a
"CLICK".
2. Unscrew the white or black nut from the adapter body and pull out the insertion tube and
the parts mounted on it.
WT675 Wet-Tap Insertion Assembly
INSTALLATION INSTRUCTIONS
1
WT675 Wet-Tap Insertion Assembly
EN 02-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT675 and is the answer not in the manual?

Questions and answers

Related Manuals for FLS WT675

Summary of Contents for FLS WT675

  • Page 1 As supplied, the system consists of the PH655 CD Combination pH Electrode (or the ORP655 CD Combination REDOX Electrode) and the WT675 Insertion Assembly. 2. Installation 1. Unscrew the hex nut from the adapter body and retract rod into body until you hear a “CLICK”.
  • Page 2 5. Insert rod into body assembly until o-ring face seal seals against body. Then slide white nut over rod from back side and tighten onto body. 6. Open ball valve then loosen hex nut and push rod into desired position. Tighten nut to hold position. WT675 Wet-Tap Insertion Assembly...
  • Page 3 1. Remove cable assembly. Reverse of step 7 in mechanical installation on page 2. Loosen the hex nut and retract rod into body until you hear a “CLICK”. 3. Remove large white nut by turning counter-clockwise and remove rod assembly with electrode attached as shown below. WT675 Wet-Tap Insertion Assembly...
  • Page 4 4. Remove electrode by grasping rod in one hand and rotating electrode cartridge 1/4 turn then pull apart to release electrode cartridge. F.I.P. Formatura Iniezione Polimeri S.p.A. Loc. Pian di Parata, 16015 Casella (GE) – Italy Tel +39 010 96211 – Fax +39 010 9621209 www.flsnet.it WT675 Wet-Tap Insertion Assembly...
