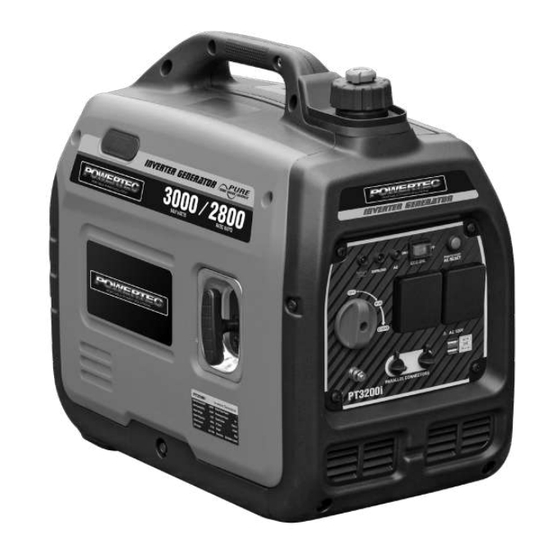

PowerTec PT3200i Operating Instructions Manual

3000w digital inverter generator
Hide thumbs

Advertisement

Quick Links

Download this manual
PT3200i
3000W DIGITAL
INVERTER GENERATOR

Advertisement

loading

Related Manuals for PowerTec PT3200i

Summary of Contents for PowerTec PT3200i

  • Page 1 PT3200i 3000W DIGITAL INVERTER GENERATOR...

  • Page 2: Table Of Contents

    PT3200i 3000W DIGITAL INVERTER GENERATOR Contents Symbol Usage .................6 General Safety Precautions ............6 Generator Controls & Features ..........12 Control Panel .................13 Operation ................14 Maintenance .................20 Troubleshooting ..............26 Wattage Reference Guide .............27 Calculating Your Power Needs ..........28 Wiring Diagram..............32 Warranty................. 37 Notes..................
  • Page 3 INVERTER GENERATOR Description Of Symbols Introduction The rating plate on your tool may show symbols. Your new POWERTEC Generator will more than satisfy your expectations. It has been manufactured These represent important information about the product or instructions on its use.
  • Page 4 PT3200i 3000W DIGITAL INVERTER GENERATOR Connection of the product to a building’s electrical system is not applicable. www.powertec.net.nz...
  • Page 5 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...

  • Page 6: Symbol Usage

    PT3200i 3000W DIGITAL INVERTER GENERATOR Symbol Usage General Safety Precautions Carbon Monoxide This manual contains important information that you need to know and understand in • Carbon Monoxide is an odourless and col- order to assure YOUR SAFETY and PROPER ourless gas.

  • Page 7: Operation

    PT3200i 3000W DIGITAL INVERTER GENERATOR Gasoline and Oil in the exhaust system can create a poten- tially explosive condition. This build-up can This product requires oil and fuel. THE EN- occur after repeated failed start attempts, GINE WILL NOT START WITHOUT OIL.
  • Page 8 PT3200i 3000W DIGITAL INVERTER GENERATOR • Do not abuse the power cord. Keep power • Before servicing equipment powered by cords away from heat, oil, sharp edges, or the generator, disconnect the equipment moving parts. Replace damaged power from its power input.
  • Page 9 Do not use the generator if the power tant information. If unreadable or missing, switch does not turn it on or off. Any gen- contact your Powertec agent immediately erator that cannot be controlled with the for a replacement. power switch is dangerous and must be repaired.
  • Page 10 PT3200i 3000W DIGITAL INVERTER GENERATOR • Generator service must be performed only haust fumes must be within legal limits and installation must always meet local building codes. personnel could result in a risk of injury. • If the generator is installed outdoors, it •...
  • Page 11 PT3200i 3000W DIGITAL INVERTER GENERATOR Noise Be aware that when engine parts are moving fast they cannot be seen clearly. Prolonged exposure to noise levels above • Keep access doors on enclosures closed 85dBA is hazardous to hearing. Always wear and locked when access is not required.
  • Page 12 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 13 PT3200i 3000W DIGITAL INVERTER GENERATOR AC230V/15A AC230V/15A SYSTEM FLOATING www.powertec.net.nz...
  • Page 14 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 15 PT3200i 3000W DIGITAL INVERTER GENERATOR Powertec Powertec Powertec www.powertec.net.nz...
  • Page 16 PT3200i 3000W DIGITAL INVERTER GENERATOR 3. Using the supplied funnel pour the oil into INITIAL OIL FILL the engine (see Figure 3). BEFORE AOOING ENGINE OIL, REVIEW SAFETY SECTION NOTICE Engine oil must be added when the is on a flat, level surface, or an inaccurate reading may result.
  • Page 17 PT3200i 3000W DIGITAL INVERTER GENERATOR ADDING/CHECKING ENGINE ADDING GASOLINE TO THE FUEL TANK FLUIDS AND FUEL WARNING BEFORE ADDING/CHECKING ENGINE FLUIDS AND FUEL, REVIEW SAFETY Never refuel the while the SECTION engine is running. DANGER Filling the fuel tank with gasoline while...
  • Page 18 PT3200i 3000W DIGITAL INVERTER GENERATOR Starting PT3200i www.powertec.net.nz...
  • Page 19 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 20 PT3200i 3000W DIGITAL INVERTER GENERATOR BEFORE PERFORMING MAINTENANCE ON THE INVERTER, REVIEW THE SAFETY SECTION, AS WELL AS THE FOLLOWING SAFETY MESSAGES. Avoid accidentally skin contact with engine oil or during maintenance by removing gasoline. Prolonged skin contact with the spark plug boot from the spark engine oil or gasoline can be harmful.
  • Page 21 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 22 PT3200i 3000W DIGITAL INVERTER GENERATOR CHANGING ENGINE OIL 7. Allow oil to completely drain. 8. Fill crankcase with oil following the steps outlined in 1. Stop the engine. Adding 2. Let engine sit and cool for several minutes (allow 9. Dispose of used engine oil properly.
  • Page 23 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 24 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...

  • Page 25: Maintenance

    PT3200i 3000W DIGITAL INVERTER GENERATOR CLEANING THE SPARK ARRESTOR CLEANING THE INVERTER Check and clean the spark arrestor after every 1 00 It is to inspect and clean the before hours of use or 6 months. every use. 1. Stop the...
  • Page 26 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...

  • Page 27: Wattage Reference Guide

    PT3200i 3000W DIGITAL INVERTER GENERATOR Wattage Reference Guide Approx Approx Approx Approx Appliances Appliances Run (W) Start (W) Run (W) Start (W) Microwave 750W 1200 Central Air Conditioner: Coffee Maker 1750 1750 10,000 BTU 1500 2200 Electric Clothes Drier 5750...

  • Page 28: Calculating Your Power Needs

    PT3200i 3000W DIGITAL INVERTER GENERATOR Calculating Your Power Operation Needs WARNING! Never operate the engine in a closed 1. Firstly list all items requiring power simul- area or it may cause unconsciousness taneously. and death within a short time. Operate 2.
  • Page 29 PT3200i 3000W DIGITAL INVERTER GENERATOR Battery Charging idle before connecting the generator to the battery. Battery charging is performed using the 12V DC outlet only. 1. Be sure the ESC switch is turned “OFF” while charging batteries. 2. Be sure to connect the red battery charger...
  • Page 30 Clean Up Carb Piston - On * >225cc - Every 250hrs * Items should be maintained and repaired by an Authorized Powertec Service Supplier. WARNING! NOTE: If the generator engine works frequently Stop the engine before servicing. Place under high temperature or heavy load, change engine on a level surface and remove the oil every 25 hours.
  • Page 31 PT3200i 3000W DIGITAL INVERTER GENERATOR Troubleshooting Engine Problems IF PROBLEM PERSISTS PROBLEM (SYMPTOMS) RECOMMENDED ACTION 1. Turn engine switch to “ON”, pull recoil starter. 2. Check fuel. Fill if empty. See pg 15 for more information oil level. If low, add engine oil.
  • Page 32 PT3200i 3000W DIGITAL INVERTER GENERATOR PT3200i EXPLODED VIEW 469.2420.002V.04.00 Muffler shield 6178.0500.00.04 Clip nut Control harness 469.6950.002V.00.01 469.2470.001V.00.00 Inverter 148.2000.001V.00.01 Starting handle Control panel 469.3370.001V.00.99 Right exterior cover 469.5596.004V.A6.00 Right housing assembly 469.2222.002V.04.00 Step bolt 467.4789.001V.00.00 Spark plug cover plate 469.4259.001V.A6.00...
  • Page 33 PT3200i 3000W DIGITAL INVERTER GENERATOR PT3200i EXPLODED VIEW Fuel tank 469.3200.001V.00.00 469.3200.001V.00.03 Oil filling port rubber sleeve 467.3200.001V.00.02 Fuel filter screen 467.3200.004V.00.01 Fuel tank cap 469.2220.002V.04.00 Left housing assembly Left exterior cover 469.5596.003V.A6.00 T48.2186.001V.00.00 Handle cover plate 469.6655.002V.00.00 Panel seat...
  • Page 34 PT3200i 3000W DIGITAL INVERTER GENERATOR PT3200i ENGINE VIEW 164.1230.001V.00.00 Dip Stick 148.2160.001V.00.00 Spark Plug Carburetor block 164.2300.001V.00.00 148.3090.001V.00.00 Gasket 164.2260.C01V.00.00 Carburetor Assy Stepper motor 474.4000.0040.00.00 Intake elbow 164.2410.001V.00.00 Wind deflector 164.2000.001V.00.01 Muffler Assy 474.2400.001V.00.00 lgnition Coil 164.1522.002V.00.00 www.powertec.net.nz...
  • Page 35 PT3200i 3000W DIGITAL INVERTER GENERATOR PT3200i ENGINE VIEW www.powertec.net.nz...
  • Page 36 PT3200i 3000W DIGITAL INVERTER GENERATOR PT3200i SCHEMATICS www.powertec.net.nz...

  • Page 37: Warranty

    Registered warranty period for the PT3200i as a warranty claim is made at the sole jurisdiction Commercial Use: 12 Months of Euroquip.
  • Page 38 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 39 PT3200i 3000W DIGITAL INVERTER GENERATOR www.powertec.net.nz...
  • Page 40 Congratulations on your new POWERTEC product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty and service network. Please contact your local agent or submit a service...
