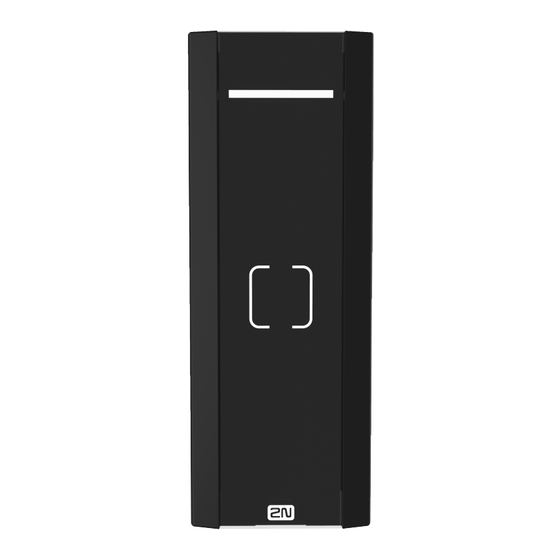

2N M Installation Manual

Access unit
Hide thumbs Also See for M:
Table of Contents

Advertisement

Quick Links

Download this manual


2N Access Unit M Installation
Manual





v.1.0
www.2n.com

Advertisement

Table of Contents
loading

Related Manuals for 2N M

Summary of Contents for 2N M

  • Page 1     2N Access Unit M Installation Manual           v.1.0 www.2n.com...

  • Page 2: Table Of Contents

    2.1 Before You Start • 2.2 Mechanical Installation • 2.3 Electric Installation • 2.4 Extending Module Connection • 3. Detection of 2N Access Unit M using 2N® Network Scanner • 4. Factory Reset • 5. Maintenance • 6. Status Signaling •...

  • Page 3: Product Overview

    The installation of 2N Access Unit M is very easy. All you have to do is connect the system to your LAN via a mains cable. Feed the access system either from a 12V power supply or your PoE supporting LAN.

  • Page 4: Components And Associated Products

    1.1 Components and Associated Products Main Units 2N Part No. ® • Access Unit M 13.56 MHz, NFC ready 916112 • is used for reading RFID cards in the 13.56 MHz bandwidth with the NFC support. Combining an access reader and a controller, the Axis Part No.
  • Page 5 Mobile Key 2N Part No. ® • Access Unit M Bluetooth & RFID 125 kHz, 13.56 MHz, NFC 916115 • is used for reading RFID cards in the 125 kHz and 13.56 MHz bandwidths with the NFC support. Combining an access reader, a Axis Part No.
  • Page 6 Main Units 2N Part No. ® • Access Unit M Touch Keypad & RFID 125 kHz, 13.56 MHz, NFC 916116 • is used for reading RFID cards in the 125 kHz and 13.56 MHz bandwidths with the NFC support. Combining an access reader, a Axis Part No.
  • Page 7 2N Access Unit M Installation Manual Electric Locks Part No. 932071E • BEFO 11211 • 12 V / 230 mA DC • low consumption   Part No. 932081E • BEFO 11221 with momentum pin • 12 V / 230 mA DC •...
  • Page 8 When electricity is interrupted, the lock is opened. • It contains a built-in contact to indicate whether the door is open or closed.  • FAQ: Electric locks – Differences between locks for 2N IP access systems 8 /  42...
  • Page 9 2N Access Unit M Installation Manual Power Supply Part Numbers • PoE injector – without cable • PoE injector – with EU cable 91378100E • PoE injector – with US cable 91378100US • For intercom supply via Ethernet cable where the PoE switch is absent.
  • Page 10 2N Access Unit M Installation Manual Additional Modules Part No. 9159013 • Departure button • Connects the logic input for door unlocking from inside the building. 2N Part No. • Magnetic door contact 9159012 • Set for installation on a door, enabling the status of door opening to be ascertained.
  • Page 11 2N Access Unit M Installation Manual Additional Modules 2N Part • RFID fob, Mifare Classic 1k, 13.56 MHz No. 9134174 Axis Part No. 01385-001 2N Part • RFID card, type EM4100, 125 kHz No. 9134165E Axis Part No. 01395-001 2N Part •...
  • Page 12 External RFID card reader connectable to a PC via a USB interface. Axis Part No. Suitable for system administration and adding 13.56 MHz, 125 kHz 01400-001 cards and Android platform devices supporting NFC/HCE using 2N IP ® intercom web interface or 2N Access Commander. It reads the same types of cards and devices as card readers in2N IP intercoms.
  • Page 13 Suitable for system administration and adding 13.56 MHz, 01527-001 125 kHz cards and Android platform devices supporting NFC/HCE ® using the 2N IP intercom web interface or 2N Access Commander. It reads the same types of cards and devices as card readers in2N IP intercoms.
  • Page 14 IP ® device. You do not have to configure anything, all you need is one 2N 2Wire unit at each end of the cable and a power supply connected to ®...

  • Page 15: Terms And Symbols

    2N Access Unit M Installation Manual  • Refer to the local 2N distributor for more accessories and recommendations please. 1.2 Terms and Symbols The following symbols and pictograms are used in the manual:  Safety • Always abide by this information to prevent persons from injury.

  • Page 16: Description Of Installation

    Torx key (10/20 size) Certificate of ownership Brief Manual 2.2 Mechanical Installation 2N Access Unit M is designed for surface mounting (wall, plasterboard, door frames). Use the drilling template shown on the device     Loosen the screws to box to prepare holes of the required sizes for...

  • Page 17: Electric Installation

    2.3 Electric Installation 2N Access Unit M can be fed either from an external 12 V / 1 A DC power supply or from a PoE 802.3af supporting LAN. External power supply Use a 12 V ± 15 % SELV supply dimensioned to the current consumption required for the access unit power output to make your device work reliably.
  • Page 18 2N Access Unit M Installation Manual Connection to LAN 2N Access Unit M is connected to the LAN using a UTP/STP cable (category Cat-5e or higher) via the dedicated LAN connector. As the device is equipped with the Auto-MDIX function, you can use both the straight and crossed cable version.
  • Page 19 2N Access Unit M Installation Manual  Caution • We recommend the use of a LAN surge protection. • We recommend the use of a shielded SSTP Ethernet cable. 19 /  42...
  • Page 20 2N Access Unit M Installation Manual Status Power Consumption 91611 91611 916114 91611 916115 916115- 91611 916116-S At relax 1.6 W 1.8 W 1.5 W 1.7 W 1.5 W 1.7 W 1.5 W 1.7 W LED – white strip 0.12 0.12...
  • Page 21 2N Access Unit M Installation Manual Description of 2N Access Unit M Cabling Legend Relay Relay cable with a 30 V / 1 A AC/DC NO/NC contact Input 1, An input cable used for the connection of a departure button, open door sensor, ESS etc.
  • Page 22 2N Access Unit M Installation Manual Legend RESET RESET / FACTORY RESET button. button All the available cables are 35 cm long.    • Output wiring diagram for Relay  Wiring diagram for the controlled device’s electric circuit closing  ...
  • Page 23 2N Access Unit M Installation Manual   23 /  42...
  • Page 24 Security • The 12 V output is used for lock connection. If, however, the unit (2N IP Intercom, 2N Access Unit) is installed where unauthorized tampering may happen (building envelopes), we strongly recommend that Security Relay (Part No. 9159010) be used for enhanced installation security.

  • Page 25: Extending Module Connection

    The Security Relay (Part No. 9159010) is used for enhancing security between the access unit and the connected electric lock. It significantly enhances security of the connected electric lock as it prevents unlocking by forced opening of 2N Access Unit M. Function: The Security Relay is a device installed between the access unit (outside the secured area) and...
  • Page 26 • To the passive output in series with an external power supply. The device also supports a Departure button connected between the ‘PB’ and – Helios/2N IP intercom’ terminals. Press the Departure button to activate the output for 5 seconds.
  • Page 27 Security Relay using the instructions above.  • FAQ: 2N® Security Relay – description of the device and use with the 2N IP intercoms  • Video Tutorial: 2N IP Door Intercoms – Security Relay Sorry, the widget is not supported in this export.
  • Page 28 2N Access Unit M Installation Manual Connection: 28 /  42...

  • Page 29: Detection Of 2N Access Unit M Using 2N® Network Scanner

    ® Network Scanner Description The application helps you find the IP addresses of all the 2N Access Unit M devices in the LAN. Download the app from the 2N web sites (www.2n.cz). Make sure that Microsoft .NET Framework 2.0 is installed for successful app installation.
  • Page 30 Window of 2N IP Network Scanner Select the 2N Access Unit M device to be configured and right-click it. Select Browse… to open the 2N Access Unit M administration web interface login window for configuration. To change the device IP address, select Config and enter the required static IP address or activate DHCP.
  • Page 31 2N Access Unit M Installation Manual ® IP Network Scanner IP Address Change 31 /  42...

  • Page 32: Factory Reset

     Note • The 2N Access Unit M time interval between the short press of the RESET button and reconnection of the device to the network is 26 s. IP Address Finding Follow the instructions below to identify the current IP address: •...
  • Page 33 2N Access Unit M Installation Manual • Wait until the red and green LEDs go on simultaneously on the device and the acoustic signal can be heard (approx. 15–35 s). • Wait until the red LED goes off and the acoustic signal can be heard (approx.
  • Page 34 2N Access Unit M Installation Manual   Factory Reset Follow the instructions below to reset the factory default values: • Press and hold the RESET button. • Wait until the red and green LEDs go on simultaneously and the acoustic signal can be heard (approx.

  • Page 35: Maintenance

    2N Access Unit M Installation Manual 5. Maintenance If used frequently, the device, its keypad in particular, gets unavoidably dirty. Use a piece of soft cloth moistened with clean water to clean the device. You are recommended to follow the principles below while cleaning: •...

  • Page 36: Status Signaling

    2N Access Unit M Installation Manual 6. Status Signaling The 2N Access Unit M operational statuses are indicated by a light signal on the device front side. The light signal can be accompanied with an acoustic signal if set so. Refer to 5.3.3 Audio...

  • Page 37: Technical Parameters

    Cover: robust ASA/PC construction material, which is also used for such car parts as lateral mirrors, radiator masks, etc. + chemically hardened 3 mm thick glass • Operating temperature: −40 °C to 60 °C • Working relative humidity: 10 % – 95 % (non-condensing) • Maximum altitude for intended use: 2000 m a.s.l. 37 /  42...

  • Page 38: General Drawings

    2N Access Unit M Installation Manual • Storage temperature: −40 °C to 70 °C • Dimensions: 132 (H) x 50 (W) x 27 (D) [mm] • Weight: 460 g • Covering level: IP55 7.1 General Drawings     38 /  42...

  • Page 39: Supplementary Information

    2N Access Unit M Installation Manual 8. Supplementary Information • 8.1 General Instructions and Cautions • 8.2 Troubleshooting • 8.3 Directives, Laws and Regulations 8.1 General Instructions and Cautions Please read this User Manual carefully before using the product. Follow all instructions and recommendations included herein.

  • Page 40: Troubleshooting

    8.2 Troubleshooting For the most frequently asked questions refer to faq.2n.cz. 8.3 Directives, Laws and Regulations ® Access Unit M conforms to the following directives and regulations: • 2014/53/EU for radio equipment • 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment •...
  • Page 41 / devices of other suppliers, the customer agrees that the 2N TELEKOMUNIKACE a.s. company shall not be held liable for any functionality limitation of such a product or any damage, loss or injury related to this potential functionality limitation.
  • Page 42 Instalační manuál 2N Access Unit M 42 /  42...
