HP Visualize b132L Upgrade Instructions page 8

CPU_Upgrade.doc 6 Tue Jul 16 14:10:19 1996
Storage Tray
Power

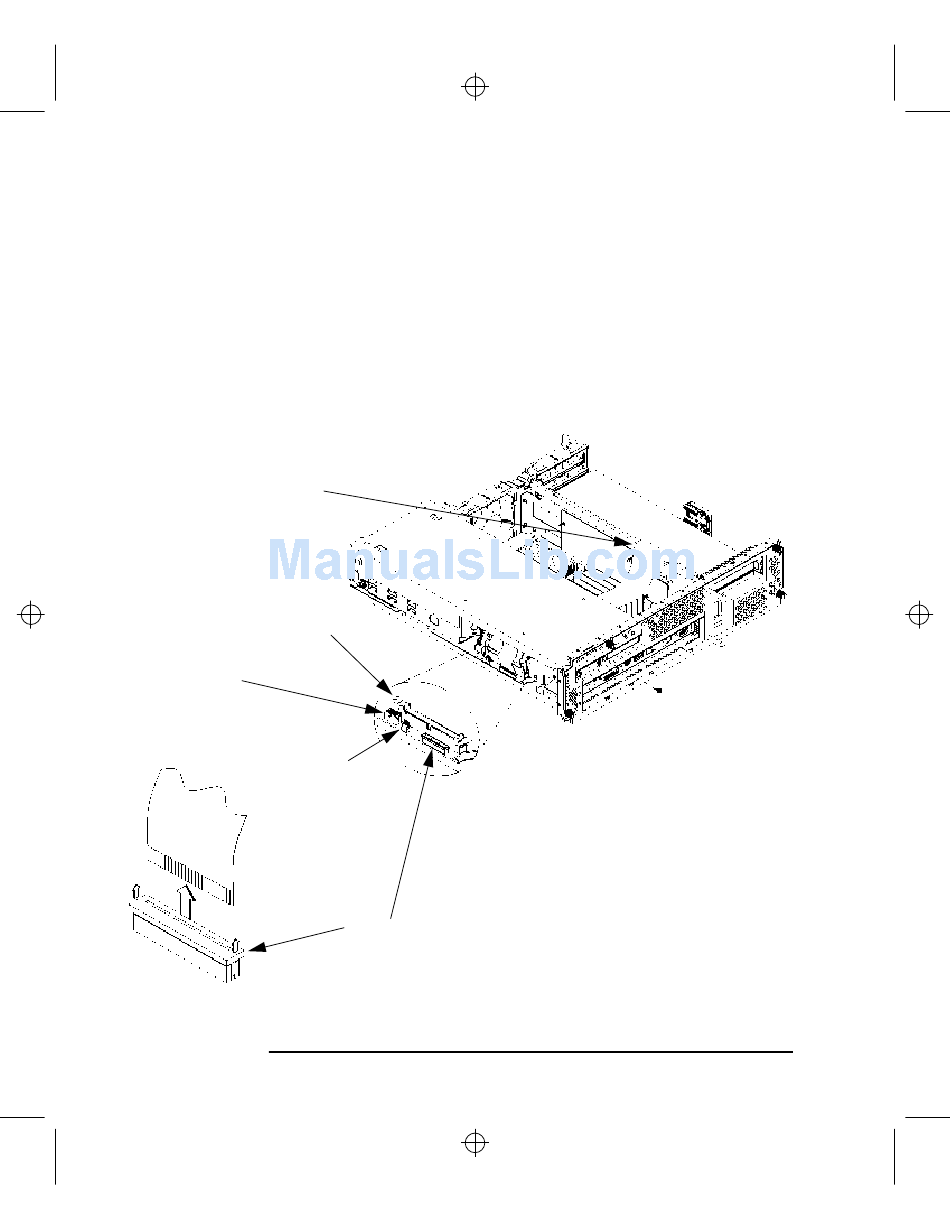

Figure 4
Remove the Storage Tray
2 Disconnect the cables from the system board and the backplane, as shown in Fig-
ure 4.
When disconnecting the floppy cable use the following procedure:
a Lift the locking ring on the connector to the up, or unlocked position.
b While holding the locking ring in the unlocked position, pull the cable out of
the connector.
3 Remove the storage tray retaining screw, as shown in Figure 4.
FWSCSI
SESCSI
CD Audio
Floppy Connector
Disconnecting the Storage Tray Assembly
6
