CHAPTER 1. OUTLINE OF THE PRODUCT, NOMENCLATURE AND FUNCTION
1. SPECIFICATIONS
LCD panel
Diagonal 38cm
Advanced Super-V and Anti-GlareLow Reflection TFT LCD module
Resolution (max.)
XGA, 1,024 x 768 pixel
Displayable colors (max.)
Approx. 16.77 million color (8 bit)
Brightness (max.)
250 cd/m
Dot pitch
0.297(H) x 0.297 (V)mm
Contrast ratio
400 : 1
Angle of visibility
Left-right 170°; Up-down 170°
Screen display size
Horizontal 304.1 x Vertical 228.1 mm
Video signal
Analog: Analog RGB (0.7 Vp-p) [75Ω]
Digital: DVI standard 1.0 compatible
Sync signal
H/V separate Sync (TTL level: +/-), Sync on Green, Composite Sync (TTL level:+/-)
Expansion compensation
Digital screening
(Enlargement VGA/SVGA etc. to full screen size. )
Plug & Play
VESA DDC1/DDC2B compatible
Power management
VESA DPMS, DVI DMPM
Speaker output
1W + 1W
Input signal terminal
Mini D-sub 15 pin (3 row), DVI-I 29 pin
Audio input terminal
Mini stereo jack
Headphone terminal
Mini stereo jack
Screen tilt
Upward approx.0° -30°; downward approx.0° - 5°
Screen swivel
Approx.90° from left through right
Power supply
AC100 - 240V, 50/60Hz
Temperature of
5 - 35°C
operating environment
Power consumption
Maximum 36W (Standby state: 3W)
Dimensions
337(W) x 185(D) x 355(H) mm
Weight
Approx. 4.9kg
(approx. 3.3kg excluding stand)

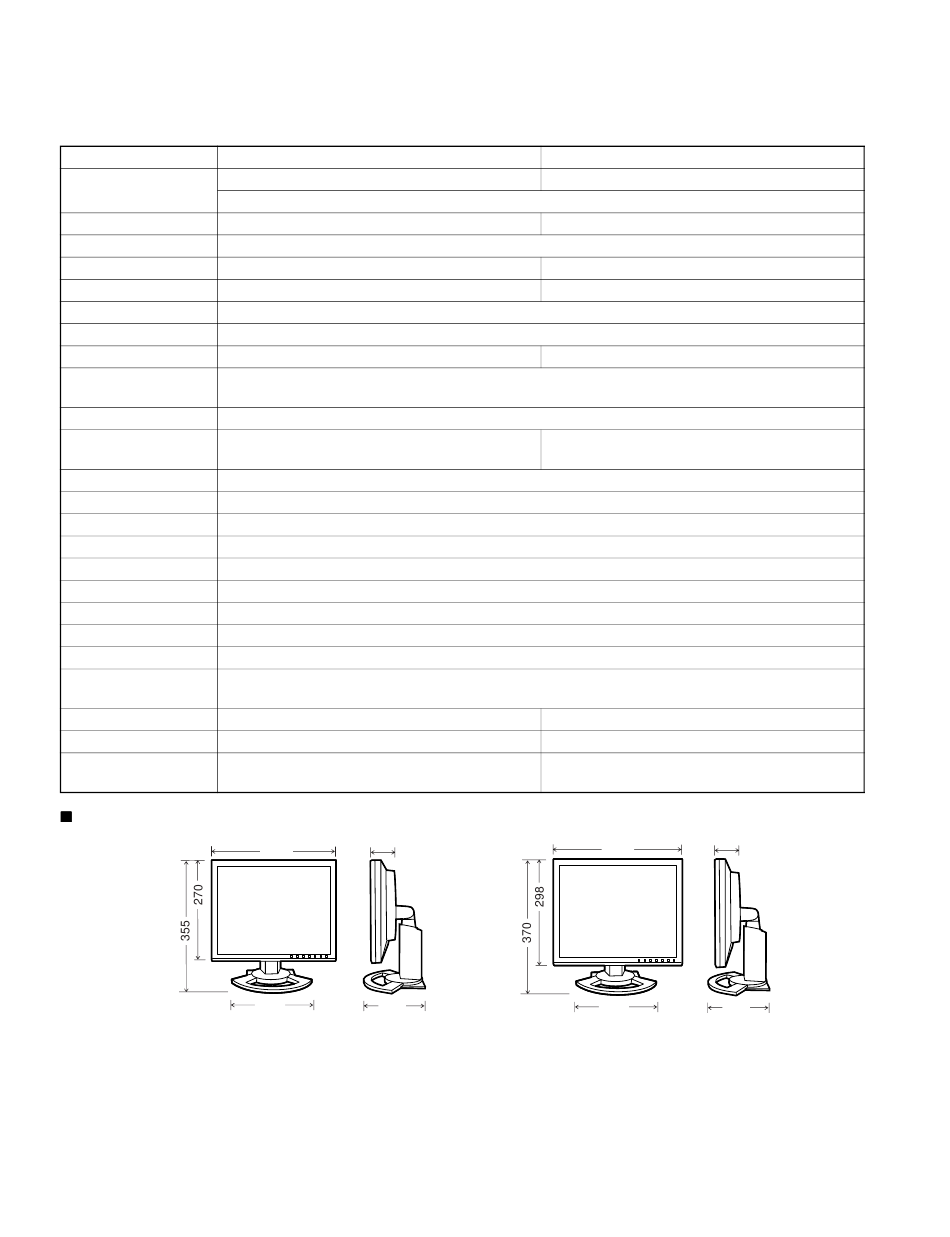

DIMENSIONS (Units: mm)
Cable
Analog signal cable: Approx. 2.0m
Audio cable:
Approx. 2.0m
Digital signal cable, NL-C01E (purchased separately): Approx. 2.0m
Analog signal cable, NL-C02E (purchased separately): Approx. 2.0m
LL-T1520
2
61
337
LL-T1520
238
185
LL-T1520-H/B LL-T1620-H/B OUTLINE OF THE PRODUCT, NOMENCLATURE AND FUNCTION
Diagonal 40cm
SXGA, 1,280 x 1,024 pixel
2
300 cd/m
0.248(H) x 0.248 (V)mm
Horizontal 317.4 x Vertical 253.9 mm
Digital screening
(Enlargement VGA/SVGA/XGA etc. to full screen size. )
Maximum 42W (Standby state: 3W)
352(W) x 185(D) x 370(H) mm
Approx. 5.3kg
(approx. 3.7kg excluding stand)
352
LL-T1620
238
1 – 1
LL-T1620
64
185
