Features:
Supplied ready to operate
•
Replaces a "Switched Live Cable"
•
Quick and Simple to Install
•
Up to 5Km range line of sight.
•
Up to 1Km range in buildings
•
Screw Terminal Connections
•
110Vac or 230Vac Operation
•
FSK/LoRa Spread Spectrum RF
•
Modulation
Weatherproof IP68 Enclosures
•
RED Compliant and FCC Certified
•
High Quality UK manufacture
•
Description

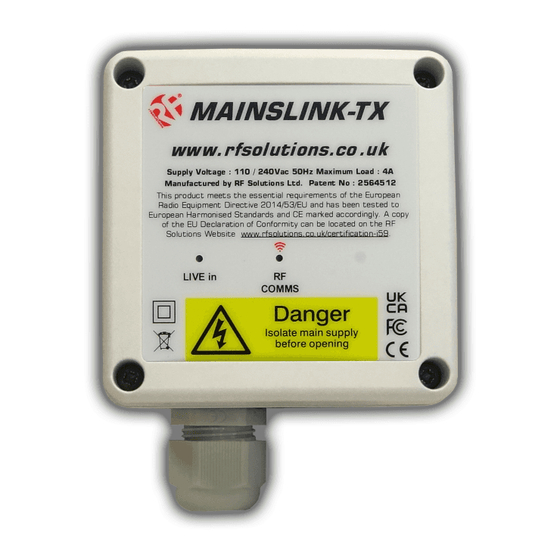

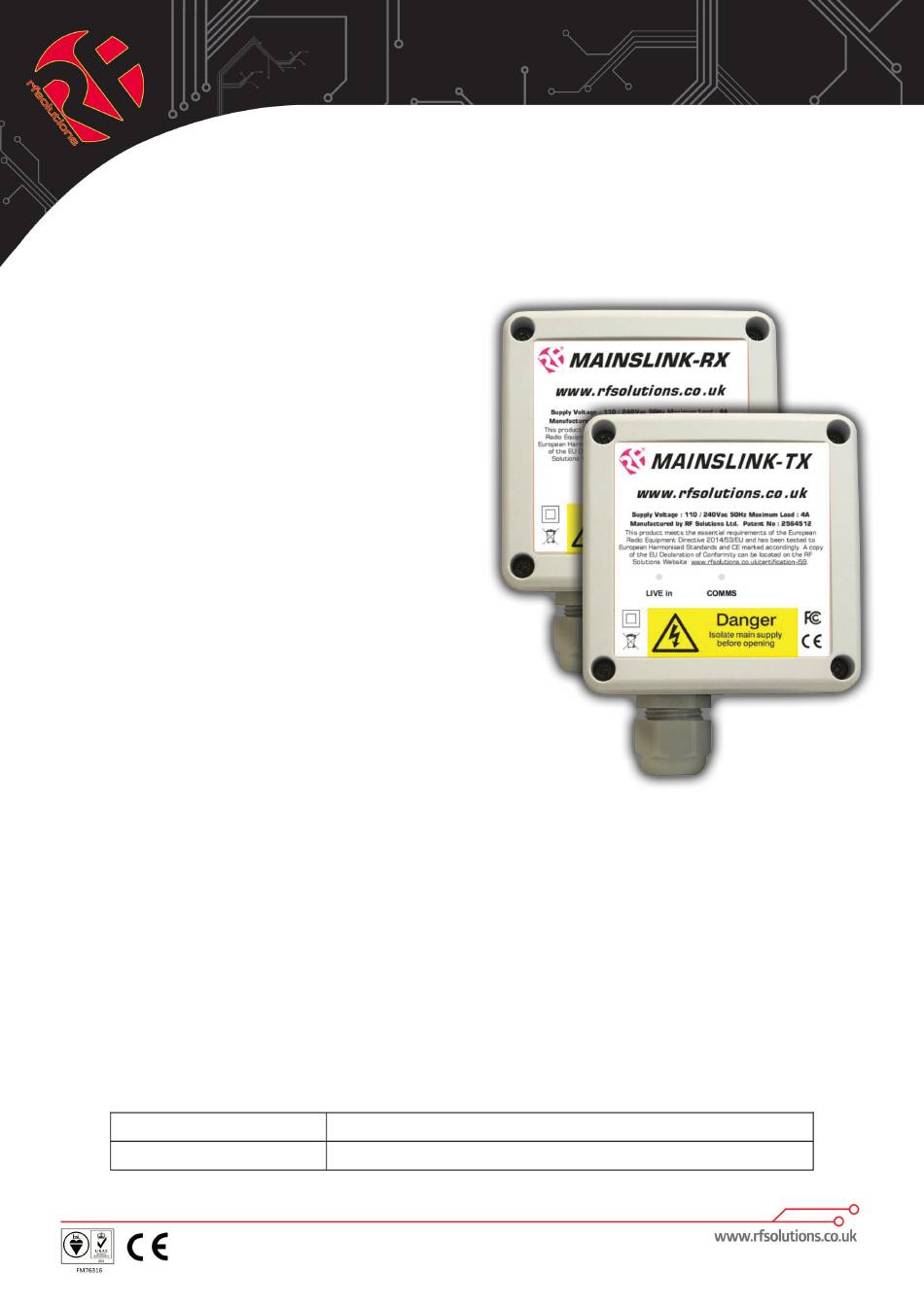

MAINSLINK is a plug and play solution to replace a switched live cable. When 230Vac
"LIVE" is input to the transmitter, the receiver provides a 230Vac "LIVE" switched
output at its screw terminals.
MAINSLINK utilises the RF Solutions state of the art RF-LoRa Spread Spectrum Fre-
quency Modulation transceiver design to achieve a the highest performance / Range
available from any Radio System, upto 1Km within a building environment and 5Km Line
of sight.
When used as a Pump Overrun solution the TX is placed by the boiler and connected to
the Boiler Pump output. The RX directly drives the pump from its Live switched output
Ordering Information
Part Number
MAINSLINK
PATENT No 2564512
The Original Pump Overrun Solution
System (TX and RX) ready to go
DS-MAINSLINK-9
MAINSLINK
230Vac Radio Link
Description
Advertisement
Table of Contents
Related Manuals for RF SOLUTIONS MAINSLINK
Summary of Contents for RF SOLUTIONS MAINSLINK
- Page 1 High Quality UK manufacture • Description MAINSLINK is a plug and play solution to replace a switched live cable. When 230Vac “LIVE” is input to the transmitter, the receiver provides a 230Vac “LIVE” switched output at its screw terminals. MAINSLINK utilises the RF Solutions state of the art RF-LoRa Spread Spectrum Fre-...
- Page 2 Switched SUPPLY Connect the Switched Input Lin Connect the Switching Live input to Lin. When this input is ’LIVE’ the LED will illuminate, and MAINSLINK-RX will then switch Live out at its output Flashes when RF Active (also indicates Permanent...
- Page 3 • Product must be connected to a switch fused (spur/supply) or BS 1363 Plug. It is rec- ommended a single Fuse Spur is used to supply the Boiler and MAINSLINK-PRO jointly so that they are isolated together. PATENT No 2564512...
- Page 4 Buyers and other users should determine for themselves the suitability of any such information or products for their own particular require- ments or specification(s). RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how to deploy or use R F Solutions Ltd’s products.
- Page 5 1. Apply a 230Vac supply to the MAINSLINK-TX 2. Briefly swipe a magnet along left side as shown 3. MAINSLINK-TX will now send a special Pairing message 4. The MAINSLINK-TX and MAINSLINK-RX will now Auto pair together - allow 15 secs. Erasing a MAINSLINK-RX...
- Page 6 MAINSLINK Product Revision History The below shows the product Development / Improvements that have been made to the product through the product Lifecycle MAINSLINK REVISION CHANGE HISTORY Date Product Change / Improvement Change Revision Update to firmware to prevent lockup when pairing in Mode 3.
