RF SOLUTIONS ELITE-L Series Quick Start Manual

Applications
Garden Lighting
•
Pond pumps
•
Remote outdoor Switching
•
Access control
•
Industrial control
•
Features
4 switched channels
•
1000W rated
250/1000m range
•
12-32Vac/dc and 230Vac
•
supply
Completely waterproof
•
ABS enclosure (IP68)
All outputs momentary,
•
latching or timed
Any switch maps to any
•
relay or multiple relays
868MHz Reliable FM
•
Technology
EMC Compliant for Europe
•
10 Cable entry points for
•
easy installation.
ELITE ELITE - - - - Low Voltage / Dry contact ELITE ELITE Low Voltage / Dry contact Low Voltage / Dry contact Low Voltage / Dry contact

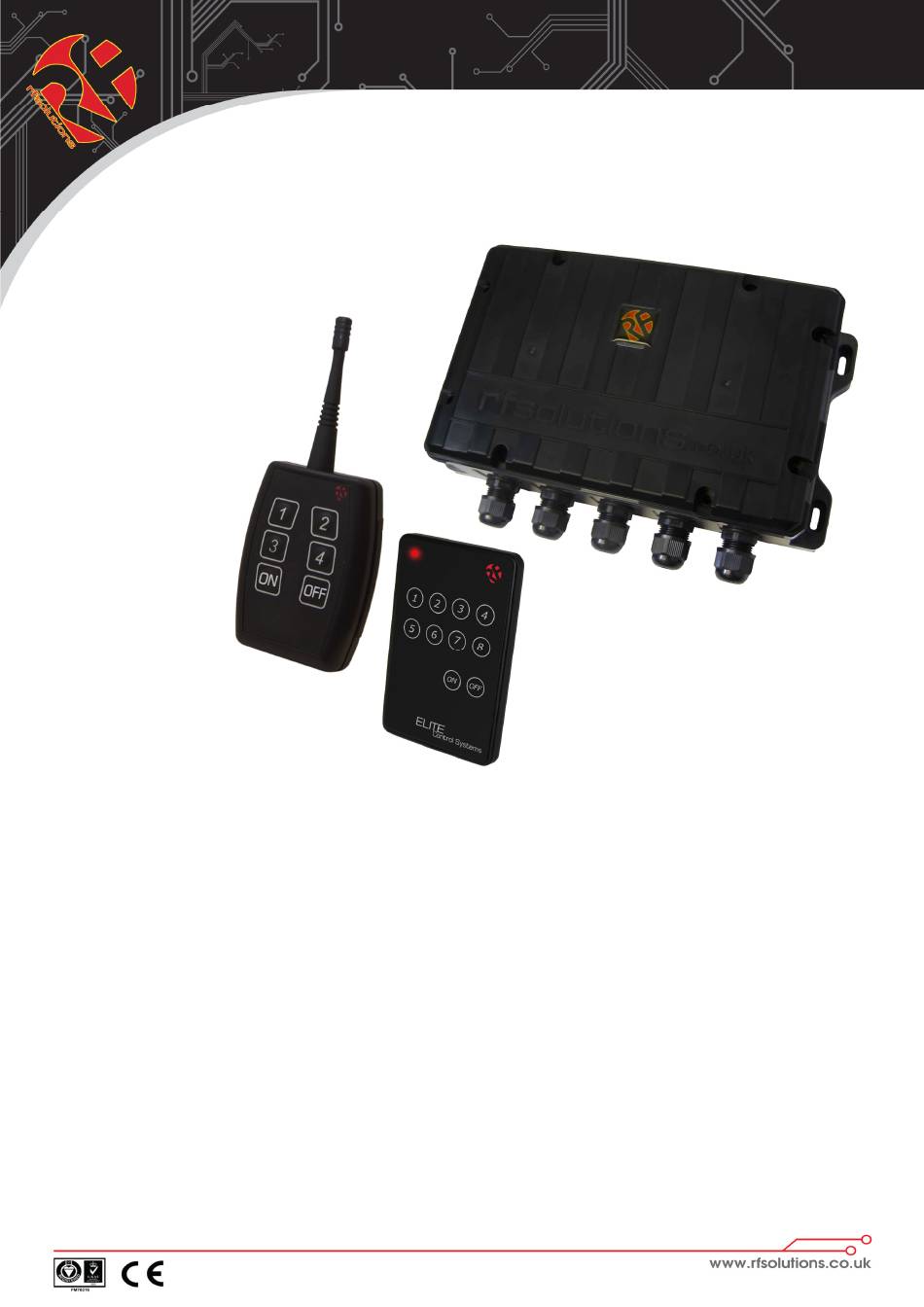

Description
Whatever your switching application the ELITE Remote control system;
with 4 individual relay switches and a completely waterproof IP68 enclosure;
will be a great choice.
The ELITE remote control system has been designed with the
requirements of electricians in mind and therefore it can be used to switch all
lighting types as well as other applications such as Water Features, Electric
gates and Garage Doors.
Each receiver has 4 switched outputs. Using our one touch 'easy-learn'
process each relay can be controlled from any switch on any compatible
transmitter.
Thanks to the latest technology each of the 4 outputs on the ELITE remote
control system can be set to operate in a timed, momentary or latching
mode for complete flexibility.
DS-ELITE-L-3
ELITE- - - - L Series ELITE ELITE ELITE
Remote Control System Remote Control System Remote Control System Remote Control System
L Series L Series L Series
