Features:
Quick and Simple to Install
•
No Configuration Needed
•
Up to 500m range outdoor
•
50-100m range in buildings
•
Weatherproof IP65 Enclosures
•
Easy Screw Terminal Connection
•
Operates from 230V or 110V
•
UK Design and manufacture
•
Description

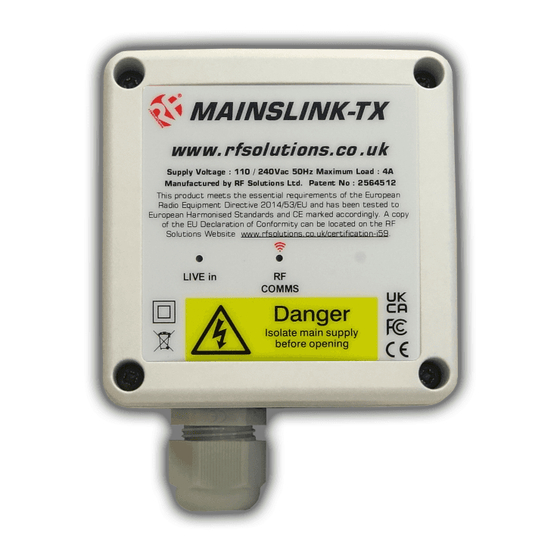

MAINSLINK is a plug and play solution to replace a switched live cable.
When 230Vac "LIVE" is input to the transmitter, the receiver provides a
230Vac "LIVE" switched output at its screw terminals.
MAINSLINK System Operation
MAINSLINK-TX
LIVE IN is
OFF
NEUTRAL IN
Ordering Information
Part Number
MAINSLINK
MAINSLINK-RX
MAINSLINK-RX
SWITCHED
OUT
OFF
LIVE IN
NEUTRAL IN
MAINSLINK System (Supplied complete with Tx/Rx)
MAINSLINK Receiver unit
230Vac Radio Link
MAINSLINK-TX
LIVE IN is
230Vac
NEUTRAL IN
NEUTRAL IN
Description
MAINSLINK-RX
SWITCHED
OUT
230Vac LIVE
LIVE IN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS MAINSLINK
Summary of Contents for RF SOLUTIONS MAINSLINK

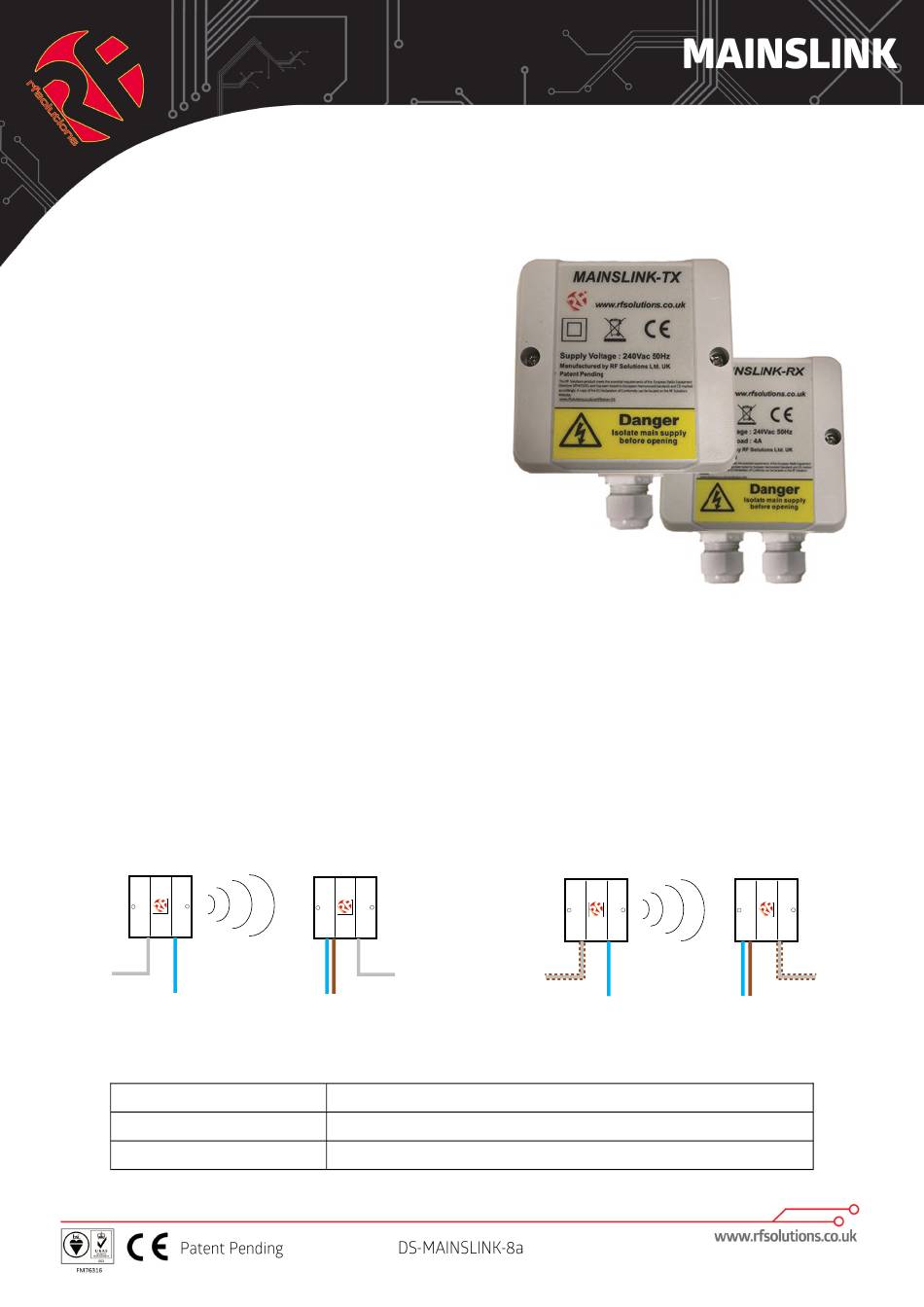

- Page 1 UK Design and manufacture • Description MAINSLINK is a plug and play solution to replace a switched live cable. When 230Vac “LIVE” is input to the transmitter, the receiver provides a 230Vac “LIVE” switched output at its screw terminals. MAINSLINK System Operation...
- Page 2 1. Run a switched Live from your external device or switch to the MAINSLINK-TX Transmitter and connect into the screw terminal marked: L (Live) 2. Run a Neutral to the MAINSLINK-TX and connect to the terminal marked N (Neutral). CABLE IN...
- Page 3 All dimensions in mm Fixing Instructions: 1. Fix the rear of the MAINSLINK enclosure to the wall using the template above. 2. Ensure that all fixing screws are screwed flush to the enclosure. 3. Ensure that the screw covers are put in place. These ensure water proofing and insulate the PCB from the wall fixing screws.
- Page 4 Pairing a Receiver NOTE: MAINSLINK Systems are supplied pre-paired. This process is de- scribed for advanced use only. To pair the MAINSLINK–RX it must have a 230Vac supply connected. 1. Briefly place a magnet on the receiver by the MAINSLINK-RX as shown This will put the system in learn mode.
- Page 5 When used as a Mainslink system the Jumper link 3-4 must be OPEN (Momentary operation). When the Mainslink Receive r is sued with an alternative Transmitter such as a pocket keyfob then the Link can be set to Latching operation if so required...
- Page 6 Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice.
