Springdale Lighting STR11010 Assembly Instructions

ASSEMBLY INSTRUCTIONS:
Item No: STR11010

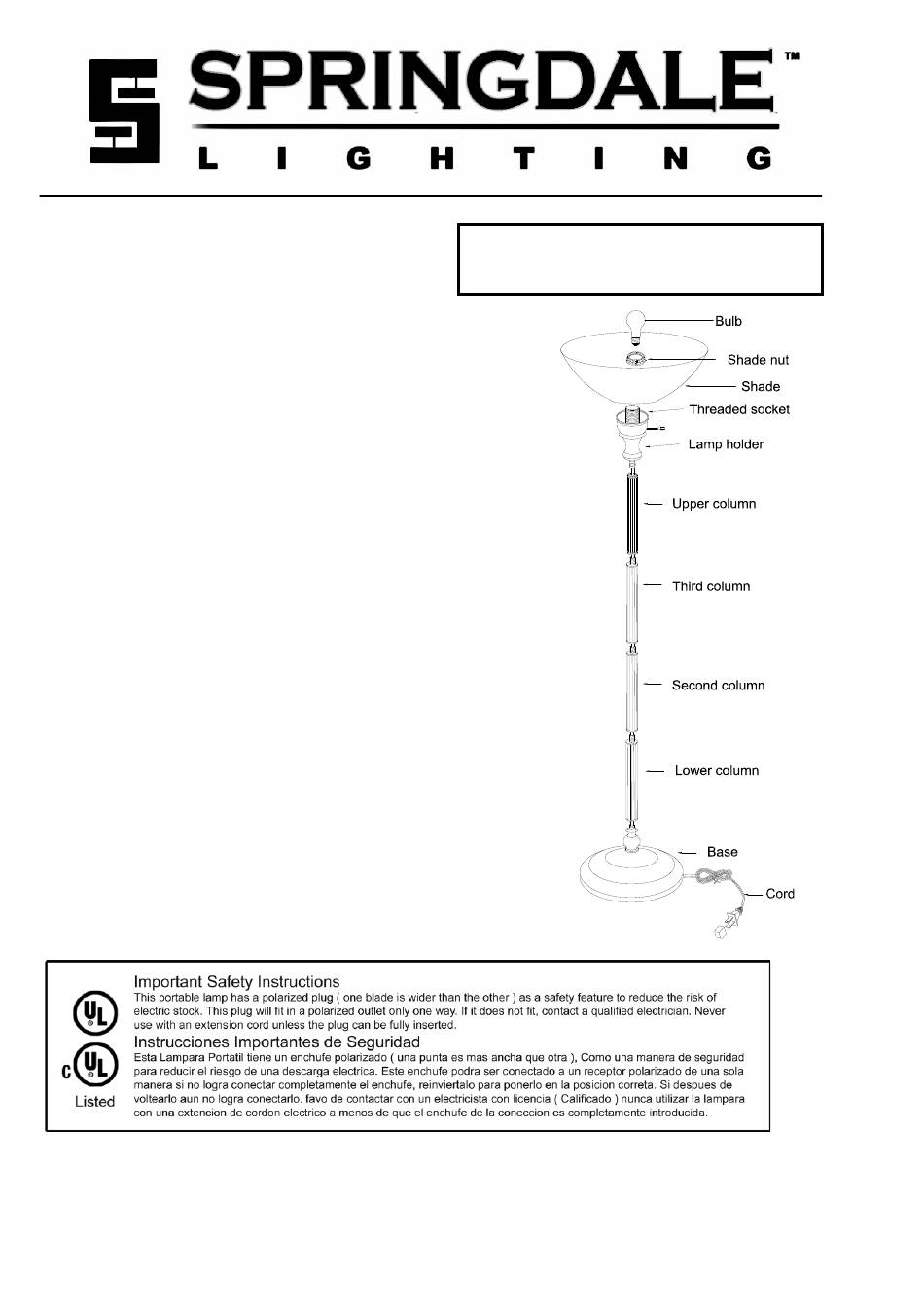

1. Carefully unpack and lay out the parts as shown in the illustration.
2. Pull cord through base to tighten column connections.
3. Screw lower column into lamp base.
4. Screw second column into lower column.
5. Screw third column into second column.
6. Screw upper column into third column.
7. Pull balance of cord from base to tighten excess.
8. Screw lamp holder into the upper column until tight.
9. Unscrew the shade nut from the socket, and place the shade
into the lamp holder. Replace the shade nut onto
threaded socket to secure the shade.
10. Insert 100Watt light bulb into bulb socket.
Uses maximum (1) 100 Watt type "A" bulb.
(Bulb not included)

Cleaning of your lamp.

Unplug lamp, wipe with a damp cloth. Do not use abrasives.
*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Made in China
FOR RETURN SHIPPING PURPOSES:
PLEASE RETAIN ORIGINAL PACKAGING
TO MINIMIZE DAMAGE.
Revision – 05/27/11
